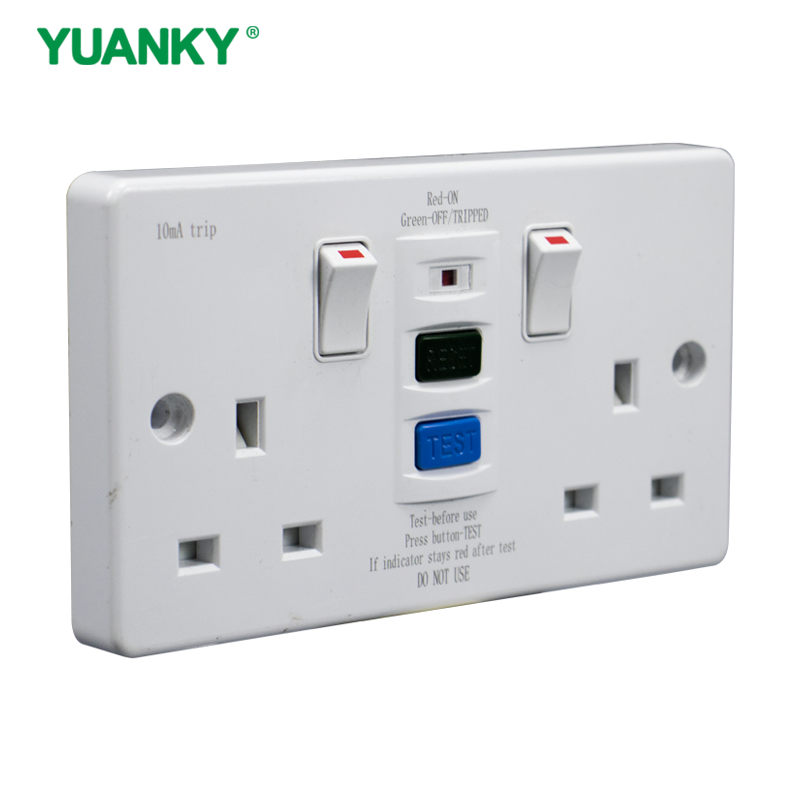

13A RCD Protected Safety Socket Outlet

An easily fitted Socket incorporating a Residual Current Device, give much greater safety inthe use of electrical appliances against a rick of electrocution.
SPR plastic type can be fitted to a standard box with minimum depth of 25mm.
SMR metel type when installing an earth link must be wired to the earth terminal in the boxby using side knockouts.
Press green reset(R)button and window indicator turns red
Fress white test(T)button and window indicator turns black meansthe RCDhas tripped successfuily.
Designed and manufactured in accordance with the relevant clauses of BS7288,and usedwith BS1363 plugs fitted with a BS1362 fuse only.

Availability:
Inquire Add to Basket

  • America

0230SPW ( Twin RCD Plastic Socket,Switched)

a5a6

Specification

Rated Voltage: 240VAC

Rated Current:13A max

Frequency: 50Hz

Tripping current: 10mA & 30mA

Tripping speed: 40mS max

Voltage Surge: 4K (100KHz Ring Wave)

Endurance: 3000 Cycles min

Hit-Pot: 20o0V min

Approval: CE BS7288;BS1363

Cable capacity:3X2.5m

lP Rating:IP4X

Dimension:146*86mm

Application:

Equipment, Household appliances, etc.


0230SMG ( Twin RCD metal Socket,Switched)

a7a8

Technical Data

Rated voltage 220-240V/50Hz
Maximun operating current: 13A
Rated trip current: 30mA
Typical Trip time: 40mS
RCD contact breaker: Double pole
Cable capacity 6mm

Wiring Instruction

Terminals are clearly marked L,N,E on the back of RCDwhich should be wired with the same way as an ordinarysocket.

a9

0230PW ( Twin RCD Plastic Socket,un Switched)

a10

Specification

Rated Voltage: 240VAC

Rated Current: 13A max

Frequency: 50Hz

Tripping current: 10mA& 30mA

Tripping speed: 40mS max

Voltage Surge:4K (100KHz Ring Wave)

Endurance: 3000 Cycles min

Hit-Pot: 2000v min

Approval: CE BS7288;BS1363

Cable capacity:3×2.5 m

IRating:IP4X

Dimension:146*86mm

Application:

Equipment,Household appliances, etc.


0230MG ( Twin RCD metal Socket, un-Switched) )

a11
