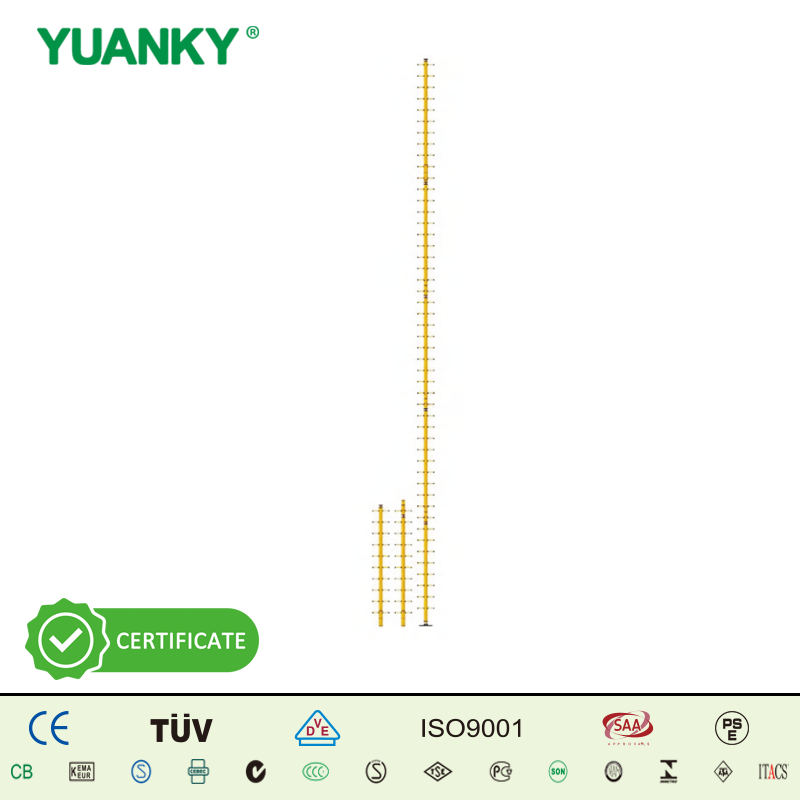

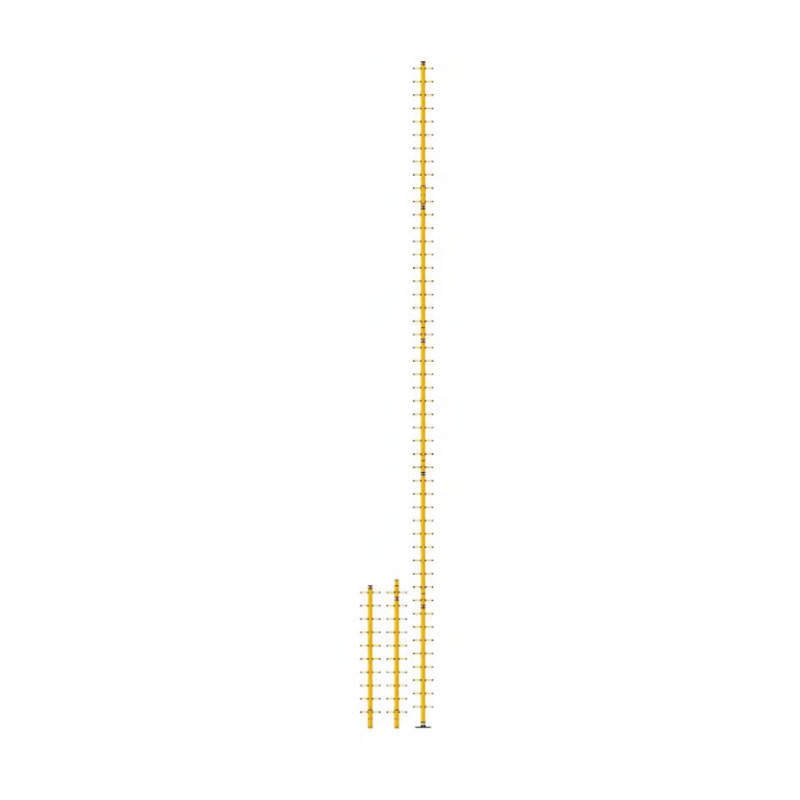

High-Voltage Insulated Centipede Type Ladder for Live Line Work

The insulated centipede type ladder is named after shaped like a centipede,the characteristics are that this ladder is based on the straight rod as the center pillar, and the main mechanical load and insulating strength are carried with the insulated stretching rope,The parallel settings of the insulated crossbar are used as a ladder to run through the rod,they are mainly carry the weight of climbing staff.Compared with the ascending method of conventional live operations, the insulated centipede type ladder can adapt to a variety of terrain operations,it can solve the problems that operating area caused by inconvenient road traffic, such as the fields area. the power-based operating vehicles and machinery cannot enter the hillside area, grass area,etc.This ladder is not highly required for the geographical conditions of the operation site. The weight of this ladder is light, easy to carry, convenient operation.lt's expand the new way to board the power operation.

Availability:



Inquire Add to Basket

Model:
228001
Brand:
YUANKY
Intercontinental Product:
America

Product Description

The feature of the product:

The trunk is made of high-strength epoxy weaving and pulling insulated tube. It has good insulated performance, high strength, good rigidity and small offset under load。
The ladder pedal can be made of circular insulated tube or Reuleaux triangle insulated tube, good insulated performance, high mechanical strength, Reuleaux triangle insulated tube foot stepping on the contact surface, comfortable feet when climbing。
Insulated wind rope adopts insulated nylon rope or insulated silk rope, with good insulated performance and high stretch strength。
The structure design of the insulated centipede ladder is a segmented plug-in locking type, with a mounting base at the lower end to fix the rod body. Each section of the structure about 3M, and the foot pedal is fixed. It is equipped with a waterproof and moisture-proof insulated bag, which is easy to carry。
This ladder can be equipped with insulated work platform, and staff can stand on the insulated work platform to work, which greatly improves the comfort of the operation。
The main insulated tube is yellow, and the ladder pedaling tube is fluorescent green or yellow。

Other information:

1.Usage scenarios: Industrial and household

2.Warranty period: 1 year

3.After-sales response: within 48 hours

4.Single packaging size: 100 x 10 x 10 cm

5.Gross weight: 2 kg
