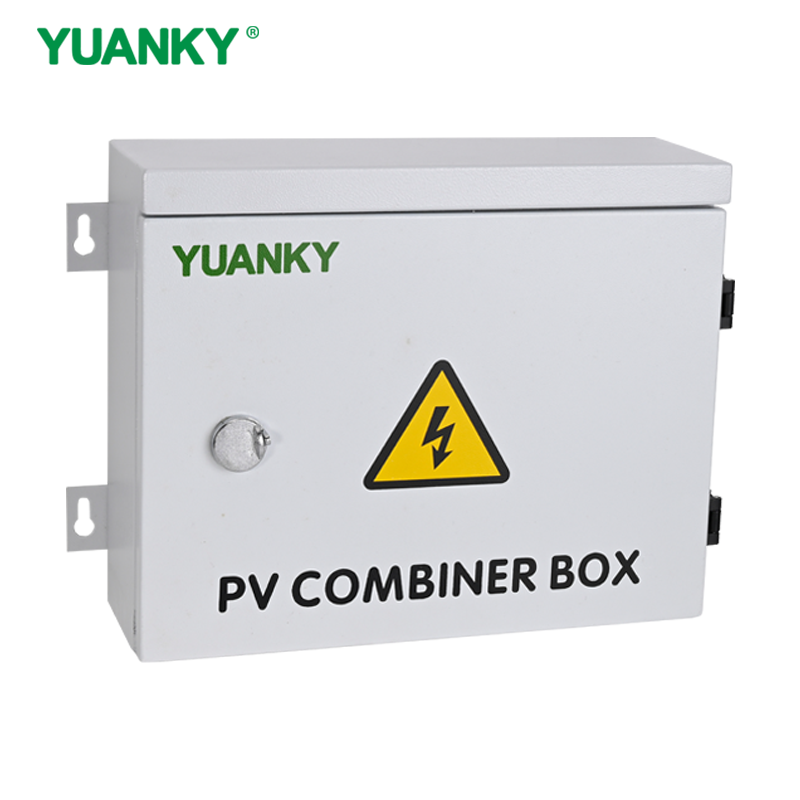

Electrical Supplier DC 15A 20 Strings Solar Pv Combiner Box



Overview

The combiner box means that the user can connect a certain number and size of the same photovoltaic cells in series to form a photovoltaic series, and thenA plurality of photovoltaic series are connected in parallel to the photovoltaic combiner box, after being merged in the photovoltaic combiner box, passing through the controller, the DC power distribution cabinet, and the light The volt inverter and the AC power distribution cabinet are used together to form a complete photovoltaic power generation system, which is connected to the utility power grid.




  • :
Availability:
  • America

Product number Hw-vcd20
Maximum number of access channels 20 Strings
Ambient temperature -35~ +400C
environment humidity 0-85%
Working elevation 3000 meters
Maximum output of eight currents per channel DC15A
Maximum open circuit current DC1500V
fuse Each positive and negative pole is connected to DC1500V photovoltaic special fuse
Whisker The positive and negative poles of the current are respectively connected to the special lightning arrester for photovoltaic
breaker The positive and negative terminals of the current are respectively connected to the photovoltaic special current interrupter, rated current 160A, voltage DC1500V
Confluence box design Enclosed design of the cabinet, anti-static, anti-shock, dust, rust, rainwater penetration, flame retardant
Confluence box heat dissipation Natural heat dissipation
Confluence box lightning protection Leihui flow box grounding lightning protection
Insulation Input ground, output to ground, input to output insulation resistance ≥ 20MΩ
System response time 1 second
Working power Use internal bus DC power
Test accuracy Photovoltaic cell measurement accuracy of 0.5, external analog of 0.2
RS485 communication RS485+ magnetic isolation/Modbus-RTU protocol, 4800/9600/19200/38400bps
Machine light waterproof rating IP65, indoor and outdoor installation
