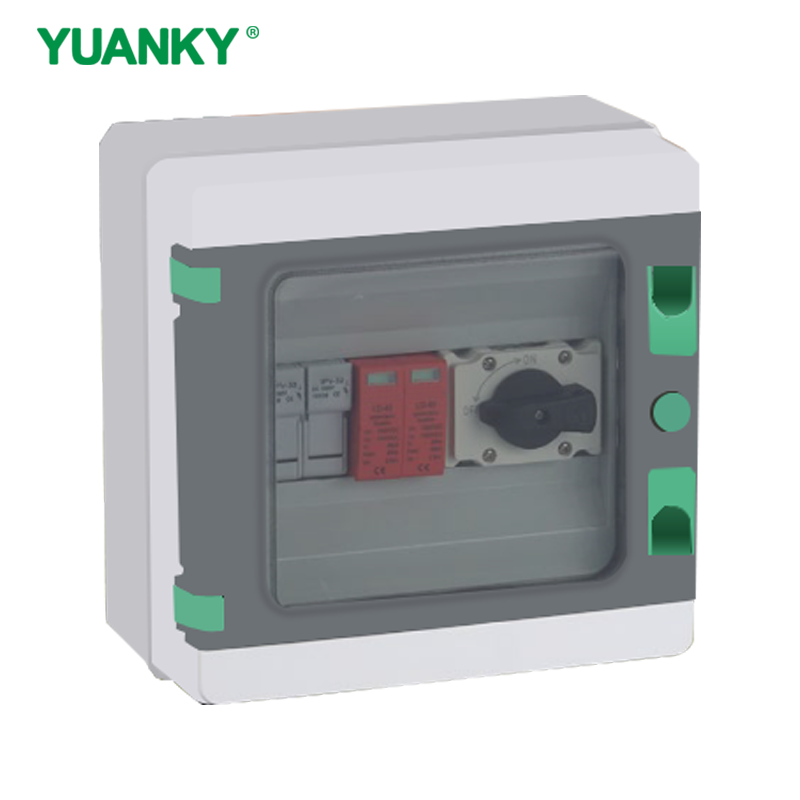

YUANKY DC Exchange Confluence Box 4 Strings 550V 1000V IP65 Plastic Solar Power Pv Array Combiner Box

MDHL-4/1 Exchange Confluence Box

Scope of application

MDHL-4/1 combiner box is suitable for the maximum input voltage of inverter DC550v / DC1000V. The box is made of PVC engineering materials, and has fire resistance, temperature rise, impact resistance, UV resistance and other tests. The protection grade reaches IP65. The product is designed and configured in strict accordance with the requirements of CGC / GF 037:2014 “technical specification for photovoltaic convergence equipment”, so as to provide users with a safe, simple, beautiful and applicable photovoltaic system product.

Availability:



Inquire Add to Basket

Intercontinental Product:
America

Electrical Technical Parameters

Model	MDHL-4/1-PV1/1		MDHL-4/1-PV2/1		MDHL-4/1-PV4/1		MDHL-4/1-PV4/2
Electrical parameters
Maximum DC voltage of the system	550	1000	550	1000	550	1000	550	1000
Maximum input current of each circuit	20A		20A		20A		20A
Maximum number of input channels	1		2		4		4
Maximum output switching current	16A/20A		20A/32A		50A/63A		20A/32A
Number of inverter MPPT	1		1		1		2
Output modes	1		1		1		2
Lightning protection
Test category	Ⅱ pole protection		Ⅱ pole protection		Ⅱ pole protection		Ⅱ pole protection
Nominal discharge current	20kA		20kA		20kA		20kA
Maximum discharge current	40kA		40kA		40kA		40kA
Voltage protection level	2.8kV	3.8kV	2.8kV	3.8kV	2.8kV	3.8kV	2.8kV	3.8kV
Maximum continuous operating voltage	630V	1050V	630V	1050V	630V	1050V	630V	1050V
Number of poles	2P	3P	2P	3P	2P	3P	2P	3P
Structural features	Pluggable module		Pluggable module		Pluggable module		Pluggable module
System
Degree of protection	IP65
Output switch	DC circuit breaker (standard) / DC rotary disconnector (optional)
SMC4 waterproof joint	Standard configuration
Photovoltaic DC fuse	Standard configuration
Photovoltaic DC surge protector	Standard configuration
Monitoring module	N
Anti inversion diode	N
Anti inversion diode	PVC
Installation mode	Wall mounted
Working temperature	-25℃~+55℃
Altitude	2000m
Allowable relative humidity	0~95% no condernsation
Mechanical parameter
W×H×D (mm)	215×210× 100	300×260× 140	215×210× 100	300×260× 140	410×285× 140	300×415× 140	300×260× 140	410×285× 140
