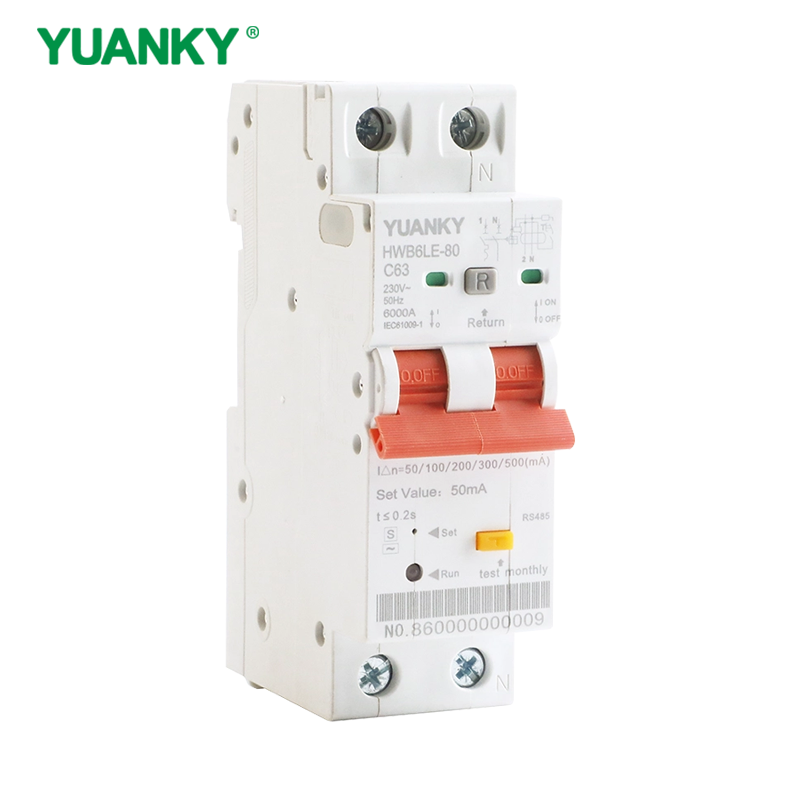

HWB6LE-80Intelligent Leakage Monitoring Miniature Circuit Breaker

Share to:

HWB6LE-80Intelligent Leakage Monitoring Miniature Circuit Breaker

Hw series iot circuit breaker is a multifunctional intelligent switch that integrates power metering, overload, short circuit. Overunder-voltage, leakage, over-temperature protection, remote opening and closing, timing, network communication and other functions.

Availability:



Inquire Add to Basket

Model:
HWB6LE-80
Brand:
Yuanky
Intercontinental Product:
America

Product Description

Shell frame grade current Inm (A)	80
Rated current I_n（A）	40,50,63,80
Rated operating voltage Ue	AC230V
Rated insulation voltage Ui	AC400V
Rated frequency (Hz)	50
Rated impact withstand voltage Uimp (kV)	4
Rated operating short-circuit breaking capacity Ics (kA)	6
Rated remaining on and off capacity IΔn (kA)	1.5
Rated residual current operating value lan IΔm (A)	0.05-0.5 adjustable (can be turned off)
Rated residual current non-operating value IΔno	0.8ΙΔη
Residual current operation delay time (ms)	200-500 adjustable

Limit non-driving time (s)	At 21△n, it is 0.06s
Instantaneous tripping type	Type C
Residual current operating characteristic type	AC
Loop current measurement range	0-14ln
Mechanical/electrical life (times)	10000/4000
Protection level	IP20
Installation method	Standard rail installation
Wiring ability	maximum 35mm²
