Choosing the right cable lug is essential for reliable electrical connections in industrial plants, switchgear, control panels, and power distribution systems. An incorrectly sized or incompatible lug can lead to loose connections, overheating, voltage drop, and equipment failure.
To choose the right cable lug size and type, you need to consider conductor size, material, connection method, operating environment, and applicable standards. This guide explains the main differences between cable lugs and provides practical steps to help you select the right option for your project.
Cable lugs connect electrical conductors to equipment terminals, busbars, and other connection points. The appropriate type depends on the conductor, equipment design, and installation requirements.

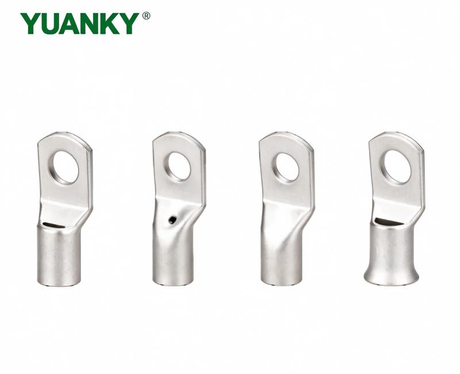

Compression cable lugs use a crimping tool and matching die to secure the conductor inside the lug barrel. When the correct components and installation procedures are used, they provide a reliable electrical and mechanical connection.
These lugs are commonly used in industrial power distribution, switchgear, and electrical panels. The lug, conductor, crimping tool, and die must be compatible.
Mechanical cable lugs use screws, bolts, or other clamping mechanisms to secure the conductor. Depending on the product design, they may be installed without dedicated crimping equipment.
Before choosing a mechanical lug, check its approved conductor range, material compatibility, and specified tightening torque.
Feature | Compression Lugs | Mechanical Lugs |
|---|---|---|
Connection method | Crimping tool and die | Screws or bolts |
Installation requirements | Compatible crimping equipment | Specified tightening torque |
Reusability | Generally not reusable after crimping | Depends on product design |
Key selection factor | Tool and die compatibility | Conductor range and torque |
Typical applications | Industrial power connections | Compatible electrical assemblies |
Neither type is universally better. The right choice depends on the equipment design, installation conditions, product ratings, and maintenance requirements.
Cable lug material affects electrical conductivity, corrosion resistance, weight, and compatibility with the conductor and equipment terminal.
Copper cable lugs: Offer high electrical conductivity and are widely used with copper conductors in industrial electrical systems.
Aluminum cable lugs: Are lightweight and designed for compatible aluminum conductors. Follow the manufacturer's instructions for conductor preparation and oxidation control.
Tinned copper cable lugs: Have a tin coating that can improve corrosion resistance in suitable environments, depending on the application.
Bimetallic cable lugs: Are designed for specific connections between dissimilar metals, such as aluminum conductors and copper terminals.
When selecting a material, consider both the conductor and the equipment terminal. For connections between dissimilar metals, use a lug specifically approved for the intended combination.
Correct cable lug sizing is essential for a secure electrical connection. A lug that is too large may not compress the conductor properly, while one that is too small may prevent full insertion or damage the conductor strands.
Follow these steps when selecting a cable lug.
1. Confirm the conductor size
Check the cable specification for the conductor's cross-sectional area, commonly expressed in mm² or AWG. Use the manufacturer's approved conductor range rather than estimating the size from the cable's outside diameter.
2. Identify the conductor material and construction
Determine whether the conductor is copper or aluminum and whether it is solid, stranded, or fine-stranded. The lug must be suitable for the conductor material and stranding class.
3. Check the lug barrel dimensions
Verify that the conductor fits the approved barrel size and can be inserted to the specified depth. Follow the manufacturer's requirements for stripping length and conductor preparation.
4. Match the mounting hole to the terminal
Check the stud or bolt diameter, lug mounting-hole size, palm width, and available installation space. The lug must fit the equipment terminal correctly.
5. Verify the installation method
For compression lugs, confirm the required crimping tool, die, and installation procedure. For mechanical lugs, check the approved conductor range and specified tightening torque.
Before ordering, record the conductor size, material, mounting dimensions, and required lug type. This makes it easier to compare products and avoid compatibility problems.
Before purchasing cable lugs for industrial applications, review the manufacturer's technical documentation and the requirements applicable to your project.
Depending on the product and target market, relevant requirements may include UL or CSA certification, applicable IEC standards, and local electrical installation rules.
Check the following information:
Approved conductor sizes and materials
Lug dimensions and mounting-hole specifications
Applicable voltage and temperature ratings
Compatible crimping tools and dies, where relevant
Required tightening torque for mechanical lugs
Applicable certifications and test documentation
Do not assume that all cable lugs follow the same standards or that similar-looking products have identical ratings. For industrial projects, request technical drawings and compliance documents when necessary.
Several common mistakes can affect connection reliability and increase maintenance requirements.
Choosing the wrong size: A poorly matched lug barrel may result in an unreliable connection or conductor damage.
Ignoring material compatibility: Copper and aluminum conductors require suitable termination solutions.
Using incompatible tooling: An incorrect crimping die can compromise the connection.
Overlooking environmental conditions: Moisture, corrosion, and vibration can affect connection performance.
Ignoring installation instructions: Incorrect stripping, crimping, or tightening may reduce connection reliability.
Following the manufacturer's specifications during selection and installation helps reduce these risks.
Selecting the right cable lug requires careful consideration of conductor size, material compatibility, connection design, installation requirements, and operating conditions.
For engineers, contractors, and procurement teams, checking product dimensions and approved conductor ranges before ordering can help avoid installation problems and unnecessary replacements.
YUANKY offers electrical connection products, including copper and aluminum terminals for electrical assemblies. If you are sourcing terminals for distribution equipment, control panels, or industrial electrical projects, explore the YUANKY Copper & Aluminum Terminal product range and review the relevant product specifications to determine whether a product meets your requirements.
For projects with specific technical needs, consult the product documentation or contact the manufacturer for further information.
Match the lug to the conductor's cross-sectional area, material, and stranding. Then verify the approved conductor range, barrel dimensions, and mounting-hole size using the manufacturer's specifications.
Copper lugs offer high electrical conductivity and are commonly used with copper conductors. Aluminum lugs are lighter and designed for compatible aluminum conductors. The right choice depends on the conductor, equipment terminal, and application.
Only use a connection solution specifically approved for the conductor and terminal materials. A suitable bimetallic lug may be required for copper-to-aluminum connections.
No. Compression lugs require the specified crimping tool and die, while mechanical lugs use an approved clamping mechanism. Follow the installation instructions for the selected product.
Confirm the conductor size, material, stranding, lug dimensions, installation method, environmental conditions, and applicable certifications. For industrial projects, review the manufacturer's technical documentation before ordering.
