In the high-stakes realm of electrical engineering and facility management, protecting human life and sensitive equipment from catastrophic electrical faults is the absolute highest priority. As international electrical codes (such as the 18th Edition of BS 7671 and the latest NEC updates) become increasingly stringent in 2026, the reliance on advanced earth leakage protection has shifted from optional best-practice to strict legal mandate.
However, an enduring source of confusion persists among electrical contractors, procurement managers, and even seasoned engineers: the fundamental difference between an RCCB (Residual Current Circuit Breaker) and an RCBO (Residual Current Breaker with Overcurrent). Both devices fall under the broader umbrella of RCDs (Residual Current Devices), and both are designed to prevent fatal electric shocks by instantly severing power when current leaks to the earth.

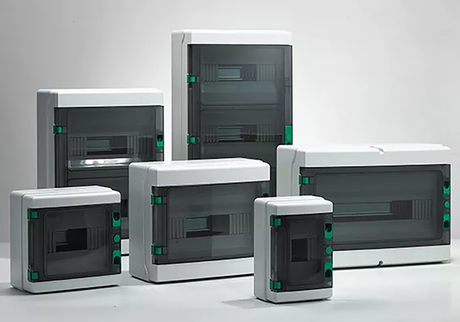

Specifying the wrong device can lead to severe consequences. Installing an RCCB without proper upstream protection can result in melted wires and electrical fires. Conversely, utilizing RCBOs incorrectly can unnecessarily inflate a project's budget by thousands of dollars and consume valuable space within your weatherproof electrical distribution boxes. In this comprehensive technical guide, we will dissect the mechanical differences, evaluate the engineering use-cases, and provide a definitive roadmap for selecting the right residual current device for your 2026 projects.
Before comparing the devices, we must establish a clear understanding of the two distinctly different electrical faults these devices are meant to mitigate.
Overcurrent (Overload and Short Circuit): This occurs when too much current flows through a circuit. An overload happens gradually (e.g., plugging too many heavy heaters into one socket), causing wires to overheat and potentially catch fire over hours. A short circuit happens instantly (e.g., a live wire touching a neutral wire), generating a massive explosion of energy. This is what traditional miniature circuit breakers (MCB) are designed to protect against.
Earth Leakage (Residual Current): This occurs when current escapes its intended path and flows into the earth. If a wire's insulation degrades and touches the metal casing of a washing machine, the casing becomes "live." If a human touches that casing, the current flows through their body into the earth, causing a potentially fatal electric shock. MCBs cannot detect this because the leakage current (often as low as 30mA) is far too small to trigger an overcurrent trip.
Therefore, to achieve total electrical safety, a circuit must be protected against both overcurrents and earth leakage.
An RCCB is a specialized safety device strictly designed to detect and interrupt earth leakage faults. Defined primarily by the IEC 61008 standard, it functions using a Zero-Sequence Current Transformer (ZCT). The ZCT constantly monitors the electrical current flowing out through the live wire and the current returning through the neutral wire.
Under normal conditions, the outbound and inbound currents are perfectly equal, creating a balanced magnetic field. If current leaks to the earth (e.g., through a person receiving a shock), less current returns through the neutral wire. The ZCT detects this imbalance (the "residual" current) and triggers a sensitive relay that breaks the circuit, typically within 30 to 40 milliseconds—fast enough to prevent the human heart from entering ventricular fibrillation.
The Critical Limitation of an RCCB: An RCCB has absolutely no overcurrent or short-circuit protection built into it. If a massive 10,000 Amp short circuit occurs, the RCCB will not trip. It will simply sit there as its internal contacts melt and catch fire. Therefore, an RCCB must always be installed in series with an appropriately sized MCB or fuse.

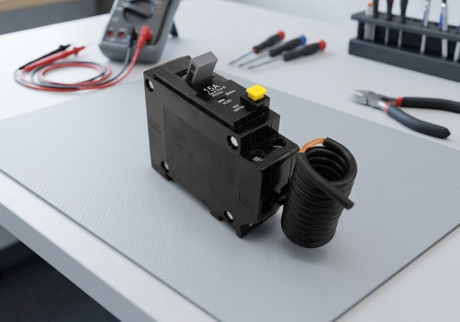

An RCBO is a highly engineered, "two-in-one" safety device. Governed by the IEC 61009 standard, an RCBO combines the exact earth leakage detection mechanism of an RCCB with the thermal-magnetic overcurrent protection mechanism of an MCB, all contained within a single compact housing.
If a piece of industrial machinery experiences an earth fault, the RCBO trips. If that same machinery experiences a massive internal short circuit, the RCBO also trips. This dual-functionality makes the RCBO the ultimate, comprehensive protection device for any individual electrical circuit.
Because it integrates both technologies, a single-phase RCBO typically occupies only one or two "modules" (slots) in a DIN-rail consumer unit, whereas pairing a separate MCB and RCCB would require more physical space.
To assist procurement teams and system designers, we have summarized the technical and commercial differences between these two critical devices.
Feature / Parameter | RCCB (Residual Current Circuit Breaker) | RCBO (Residual Current Breaker with Overcurrent) |
|---|---|---|
Earth Leakage Protection | Yes (Typically 30mA, 100mA, 300mA) | Yes (Typically 30mA, 100mA, 300mA) |
Overload Protection | No (Must be paired with an MCB) | Yes (Built-in thermal bimetallic strip) |
Short-Circuit Protection | No (Will be destroyed by massive faults) | Yes (Built-in magnetic trip, e.g., 6kA, 10kA) |
Space Required (1-Phase) | 2 Modules (Plus the space for the MCB) | 1 or 2 Modules total |
Cost Implications | Lower individual unit cost. Cost-effective if grouping many circuits under one RCCB. | Higher per-unit cost, but provides dedicated protection for every individual line. |
Nuisance Tripping Impact | High. If the RCCB trips, all circuits connected downstream of it lose power simultaneously. | Low. If one RCBO trips, only that specific faulty circuit loses power; the rest of the facility stays on. |
Despite the comprehensive nature of an RCBO, the traditional split-board RCCB setup remains highly relevant, primarily due to cost efficiency in standard residential or light-commercial applications.
In a typical office building setup, an engineer might install a single 63A RCCB at the head of a busbar, which then feeds five individual 16A MCBs (protecting lighting and socket circuits). Because only one RCCB is purchased instead of five RCBOs, the capital expenditure is significantly reduced. This is known as "group protection."
However, this cost-saving comes with a severe operational penalty: The lack of fault isolation. If a single coffee machine in the breakroom develops a 30mA earth fault, the main RCCB will trip. Because that RCCB feeds all five MCBs, the lights will go out, the computers will shut down, and the entire zone will be plunged into darkness until the faulty appliance is located and unplugged.
In modern 2026 infrastructure, the tolerance for "nuisance tripping" (where a minor fault shuts down critical unrelated systems) is practically zero. This makes the RCBO the preferred choice for mission-critical installations.
Data Centers and Server Rooms: In environments where uptime is measured in millions of dollars, shutting down an entire server rack because a single cooling fan developed an earth fault is unacceptable. Utilizing RCBOs ensures that only the specific faulty circuit is isolated.
Hospitals and Medical Facilities: Life-support machines and operating theater lighting must be completely decoupled from standard socket circuits. Every critical line must have its own dedicated RCBO.
Outdoor and Harsh Environments: Outdoor lighting, water pumps, and HVAC units are highly prone to moisture-induced earth faults. Providing them with dedicated RCBOs prevents an outdoor rainstorm from tripping the main breaker and shutting down the entire facility.
Space-Constrained Retrofits: When upgrading an older factory panel that has limited DIN rail space, swapping out old MCBs for compact, single-module RCBOs is the only way to introduce earth leakage protection without replacing the entire enclosure.
Whether you choose an RCCB or an RCBO, you must specify the correct "Type" of residual current detection. The nature of electrical loads has changed drastically. Old mechanical devices used smooth Alternating Current (AC). Today, LED drivers, variable frequency drives (VFDs), and EV chargers introduce pulsating DC and smooth DC leakage currents that can "blind" older safety devices.
Type AC: The traditional standard. Only detects sinusoidal AC leakage. In many modern electrical codes, Type AC is being phased out or banned because it fails to detect faults from modern electronics.
Type A: Detects sinusoidal AC and pulsating DC leakage. This is the new minimum standard for general residential and commercial use in 2026, required for circuits powering computers, modern appliances, and induction hobs.
Type B: The ultimate safeguard. Detects AC, pulsating DC, and smooth DC leakage. Specifying high-grade Type B RCD protectors is an absolute legal requirement for Electric Vehicle (EV) charging stations, solar PV inverters, and heavy industrial robotics.
For temporary construction sites or industrial maintenance teams working with heavy machinery outdoors, installing heavy-duty portable RCDs guarantees that workers have localized earth leakage protection, regardless of the quality of the main distribution board they plug into.
Designing an electrical distribution system requires balancing rigorous safety standards, operational continuity, and project budgets. Specifying the wrong type of residual current device can leave your personnel vulnerable to electrocution, or plague your facility with costly, unexplained power outages.
At CHNT, we engineer uncompromising electrical safety solutions. Whether your project requires cost-effective RCCBs for a large-scale residential development, or highly sensitive, space-saving RCBOs for a mission-critical commercial data center, our globally certified portfolio delivers exact precision. Our devices are meticulously tested to instantly detect earth faults, ensuring absolute compliance with the latest IEC and regional safety codes.
Furthermore, the integrity of a protection device relies heavily on the environment it operates in. By housing your CHNT RCBOs alongside our advanced industrial control devices and shielding them from power surges with our automatic voltage protectors, you create an impenetrable, automated electrical ecosystem.
Do not compromise on the foundation of your facility’s safety. Partner with an industry leader that provides both cutting-edge hardware and deep engineering expertise.
Contact Our Electrical Engineering Team Today
Can an RCCB be used without an MCB?
No, this is highly dangerous and violates electrical codes. An RCCB provides zero protection against short circuits or overloads. If used alone, a short circuit will physically destroy the RCCB, potentially causing an electrical fire. It must always be installed in series with an appropriately sized MCB or fuse.
Why is my RCBO constantly tripping?
If an RCBO trips, it could be due to either an overcurrent (too many appliances plugged in) or an earth leakage fault. A common cause of "nuisance tripping" is water ingress in outdoor sockets, or a faulty appliance (like an old refrigerator or heating element) leaking small amounts of current to the earth casing.
What does the "30mA" rating on an RCD mean?
30mA (milliamps) represents the sensitivity of the device. If the device detects an imbalance of 30mA between the live and neutral wires, it will trip. 30mA is the international standard for human life protection, as it is the threshold before ventricular fibrillation (cardiac arrest) occurs. 100mA or 300mA devices are used for equipment protection and fire prevention, not human safety.
Do I need a Type B RCBO for my home?
For standard residential socket circuits and lighting, a Type A RCBO is sufficient. However, if you are installing an Electric Vehicle (EV) charger or a solar panel inverter, you must use a Type B device. These modern technologies can leak smooth DC current, which can "blind" standard Type A or AC devices, rendering them useless.
How often should I test my RCCB or RCBO?
All RCDs (including RCCBs and RCBOs) feature a "T" (Test) button on the front. Manufacturers and safety authorities strongly recommend pressing this button every 6 months. Pressing it creates a simulated earth fault; the breaker should trip instantly with a loud "clack." If it does not trip, the internal mechanism has failed, and the device must be replaced immediately by a qualified electrician.
