Author: Site Editor Publish Time: 2026-05-12 Origin: Site
In the architecture of any modern electrical power system, the journey of electricity from the municipal utility grid to the final appliance requires strict management, measurement, and protection. This critical task is accomplished through a series of robust physical enclosures. At the very entry point of the facility, we find the meter mounting equipment, and deeper inside, the central Distribution Box.
A distribution box (often referred to as a distribution board or panel board) and its preceding meter sockets are far more than just metal or plastic cabinets. They are highly engineered enclosures designed to house the critical measurement devices and circuit protection components that prevent catastrophic electrical fires, equipment damage, and ensure accurate utility billing. In 2026, as the world rapidly shifts towards higher capacity electrical loads, the technical requirements for these enclosures have become exponentially more demanding.
Selecting the wrong enclosure or the wrong ampacity for your mounting equipment can lead to moisture ingress, thermal overloading, and ultimately, system failure. In this comprehensive B2B technical guide, we will dissect the anatomy of electrical distribution enclosures. We will explore the critical role of meter sockets at the service entrance, material science, Ingress Protection (IP), thermal dynamics, and the circuit breakers that complete the ecosystem.
Before electricity ever reaches the distribution box inside the building, it must pass through the service entrance. The most critical enclosure at this juncture is the meter socket (also known as meter mounting equipment). This robust outdoor box acts as the physical housing for the utility company's revenue meter, measuring the exact power consumption of the facility.
Because meter sockets are mounted on the exterior of buildings, they must endure decades of direct sunlight, torrential rain, freezing temperatures, and mechanical impact. Furthermore, they must be perfectly sized to handle the total incoming amperage of the facility. Selecting the correct ampacity is a non-negotiable safety requirement.
1. Light Duty & Temporary Installations (20A)
For very small, specific loads—such as powering remote telecommunication nodes, small agricultural pumps, or temporary construction site lighting—a heavy-duty panel is unnecessary. In these scenarios, electrical contractors often specify specialized, compact mounting equipment. For instance, the YUANKY 20A 600VAC Single Phase 20 Series Meter Socket Mounting Equipment provides a highly cost-effective, space-saving enclosure designed to safely measure and route smaller electrical loads up to 600 volts without compromising on weather resistance.
2. Standard Residential & Light Commercial (100A)
For decades, 100 Amps was the standard electrical service size for a typical home or small retail shop. While many new constructions are upgrading to larger services, 100A remains highly prevalent in retrofits, multi-tenant apartment sub-metering, and specific commercial outbuildings. For these applications, the YUANKY 100A 600V Single Phase 100S Series Meter Socket Meter Mounting Equipment serves as a rugged, highly reliable gateway, ensuring precise meter alignment and secure wire termination.
3. Modern High-Capacity Installations (200A)
In 2026, the modern electrical landscape has changed. With the mass adoption of electric vehicle (EV) home chargers, electric heat pumps, and induction stoves, the electrical demand of a standard facility has skyrocketed. A 200 Amp service is now the baseline requirement for new residential builds and medium commercial applications. To safely manage this massive influx of current without risking terminal meltdown, installers rely on heavy-duty enclosures like the YUANKY 200A 600VAC Single Phase 125S Series Meter Socket Mounting Equipment, which is engineered with superior heat-dissipating busbars and expansive wiring gutters.

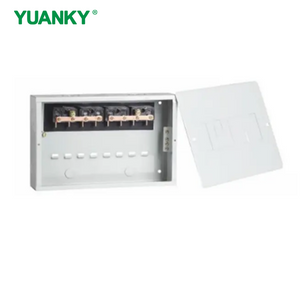

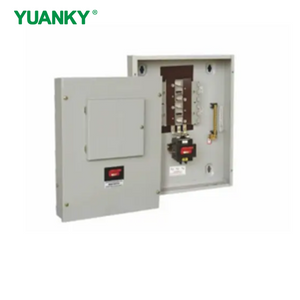

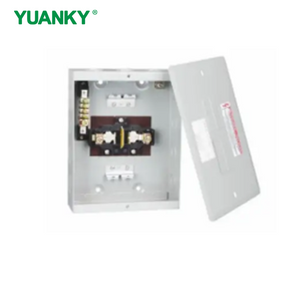

Once the electricity safely passes through the meter socket, it enters the main distribution box. At its most fundamental level, a distribution box receives this main electrical supply cable and divides that massive bulk power into multiple, smaller subsidiary circuits. Each of these subsidiary circuits provides power to specific zones or specific pieces of equipment.
However, simply splitting the wire is not enough. The primary purpose of the box is to provide a safe, structurally sound environment to house the protective switchgear for each of these circuits. This ensures that if a fault occurs on one specific circuit, the protective device inside the box will trip and isolate only that specific line, allowing the rest of the facility to remain fully operational.
The first major decision when specifying a distribution box or meter socket is the material of the outer shell. The environment dictates the material. Putting an indoor-rated box outdoors is a guaranteed recipe for rapid degradation and electrical failure.

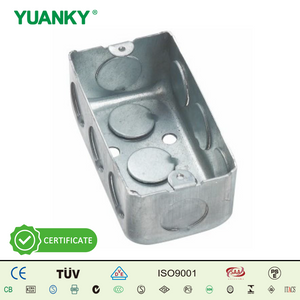

Powder-Coated Steel / Galvanized Steel: This is the industry standard for both indoor distribution boards and outdoor meter sockets. Steel offers excellent mechanical impact resistance and provides a natural barrier against electromagnetic interference (EMI). A high-quality powder coating or galvanization process prevents rust, ensuring the box survives decades of outdoor exposure.

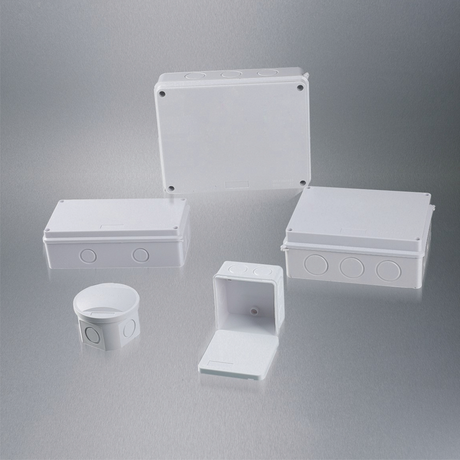

Polycarbonate (PC): For specific outdoor distribution applications where corrosive chemicals are present, UV-stabilized Polycarbonate is an excellent alternative. It is incredibly tough, inherently flame retardant, and completely immune to rust.
Stainless Steel (Grade 304 or 316): In extremely harsh environments—such as food and beverage washdown areas, or coastal marine ports—salt and caustic chemicals will quickly destroy standard steel. Stainless steel provides the ultimate defense against aggressive corrosion for critical distribution boxes.
One of the most frequently overlooked aspects of distribution box sizing is thermal management. Every electrical component inside the box generates heat due to electrical resistance. Circuit breakers and heavily loaded busbars act as small heaters.
If you pack too many components into a small, tightly sealed distribution box, the internal temperature will skyrocket. Circuit breakers rely on precisely calibrated bimetallic strips that bend when heated by an electrical overload. If the ambient air inside the box is already 55°C (131°F), the breaker will trip prematurely at a much lower current than its rated capacity. This is known as "nuisance tripping."
To prevent thermal overloading:
Oversize the Box: Never fill a distribution box to 100% capacity. Industry best practice is to leave at least 20% to 30% of the space empty. This allows for vital air circulation and provides space for future system expansions.
Ensure Secure Terminations: Loose connections generate immense heat. Whether connecting cables inside a meter socket or a distribution box, all lugs must be tightened to the manufacturer's exact torque specifications.
An empty distribution box provides no safety; its true value lies in the premium protective components installed inside. The primary occupants of any distribution board are the circuit breakers. These devices constantly monitor the current and instantly sever power during a massive short circuit or dangerous thermal overload, preventing electrical panel fires.
The design and mounting style of the circuit breaker must match the distribution box architecture. While DIN-rail mounted breakers are common in Europe and Asia, plug-in type breakers are highly prevalent in the Americas and specific industrial panel designs. For robust and highly reliable branch circuit protection, engineers rely on premium components like the S7-25mm Plug-in Type Black Circuit Breaker. The plug-in architecture allows for incredibly fast installation and safe replacement without needing to unscrew live busbar connections, drastically reducing maintenance downtime. Furthermore, these breakers are engineered to handle the extreme thermal stresses of continuous loads while providing ultra-fast arc quenching during a short-circuit fault.
The Compatibility Rule: When selecting circuit breakers, always ensure they are strictly compatible with the busbar design of your specific distribution box. Forcing incompatible breaker brands into a panel board can lead to loose connections, arcing, and ultimately, a catastrophic panel fire.
Designing an electrical distribution network requires uncompromised attention to detail from the moment power enters your property. The enclosures you select—from the outdoor meter mounting equipment to the indoor distribution panels—are the primary physical barriers standing between your sensitive safety components and the harsh realities of the environment. A failing enclosure leads directly to failing breakers, costly downtime, and severe safety liabilities.
At CHNT, we provide complete, end-to-end electrical infrastructure solutions. Whether you need a highly durable 100A meter socket for a commercial retrofit, a heavy-duty 200A mounting equipment for a high-capacity modern home, or specialized enclosures for specific light loads, we have the exact housing your project demands.
More importantly, CHNT manufactures the world-class internal components required to populate these distribution networks. By integrating our precise plug-in type circuit breakers into your panel boards, you create a cohesive, fully guaranteed ecosystem of electrical safety.
Do not leave your infrastructure vulnerable to the elements or poor component synergy. Partner with an industry leader that delivers proven reliability from the outer shell to the internal micro-components.
Contact CHNT Engineering Specialists Today
What is the difference between a meter socket and a distribution box?
A meter socket (or meter mounting equipment) is installed outside the building and houses the utility company's electrical meter, which measures power consumption for billing. A distribution box is typically installed inside the building; it takes the power coming from the meter socket, splits it into multiple individual circuits, and houses the circuit breakers that protect those specific lines.
Why are some circuit breakers "plug-in" type?
Plug-in type circuit breakers feature specialized clips on the back that snap directly onto the electrified busbar inside the distribution box. This design allows electricians to install or replace breakers extremely quickly and safely, without needing to manually tighten screw terminals directly onto the live busbar.
How do I know if I need a 100A or 200A meter socket?
This is determined by performing a "load calculation" of the entire building. If the building has basic lighting, gas heating, and standard appliances, a 100A service might suffice. However, if the building has electric heating, central air conditioning, an electric oven, or an EV charger, the total load will likely require a 200A service and the corresponding 200A meter socket to prevent overheating.
Can I mount a distribution box or meter socket directly in the sun?
Yes, outdoor-rated metal or UV-stabilized enclosures are designed to survive direct sunlight. However, direct solar radiation will increase the internal temperature of the box (solar loading). To prevent the internal circuit breakers from nuisance tripping due to this excess heat, engineers must ensure the box is adequately sized to allow for internal heat dissipation.
