As renewable energy systems, battery storage, electric vehicles (EVs), and modern data centers expand, direct current (DC) power systems are more prevalent than ever.
Behind every reliable DC electrical installation lies a critical protective device: the DC circuit breaker.
Unlike standard alternating current (AC) breakers found in everyday residential distribution boards, DC breakers are specifically engineered to handle the unique challenges of continuous direct current.
What exactly is a DC circuit breaker? How does it extinguish persistent DC electrical arcs? Why can't you simply swap in an AC breaker on a DC line? This practical guide explains the core principles, differences, and selection considerations in clear terms.

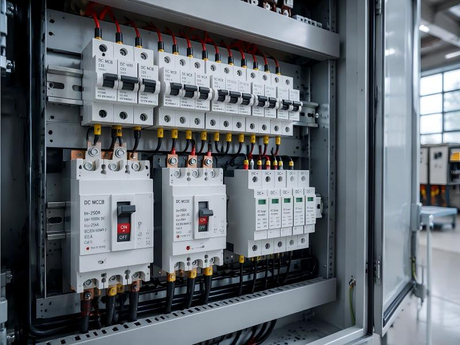

A DC circuit breaker is an automatically operated electrical switch designed to protect DC equipment, cables, and power sources from damage caused by overloads and short circuits.
Whenever the circuit's current rises beyond safe operational limits, the breaker mechanically separates its internal contacts, isolating the fault. Unlike single-use fuses that melt and require replacement, a circuit breaker can be manually or electrically reset once the fault condition is resolved.
Solar Photovoltaic (PV) Systems: Safeguarding string circuits, inverters, and main lines across modern PV Solar DC Electric arrays.
Battery Energy Storage Systems (BESS): Protecting battery banks against high-discharge short-circuit faults.
Electric Vehicle (EV) Infrastructure: Managing high-voltage DC fast-charging paths.
Telecommunications & Data Centers: Protecting central DC busbars and backup battery racks.
Industrial DC Drives & Rail Transit: Controlling DC motors, automated machinery, and traction power.
A high-reliability DC circuit breaker combines three core mechanisms working in sequence: Thermal Protection, Magnetic Protection, and Arc Quenching.
When a circuit draws more current than its continuous design limit over an extended period, an internal bimetallic strip heats up.
Because the bonded metals expand at different rates, the strip curves over time. Once it bends past a set threshold, it releases the trip latch and opens the contacts. This deliberate thermal delay allows temporary, harmless current surges (such as motor startup spikes) without triggering nuisance trips, while still protecting cables from overheating.
When a direct short circuit occurs, current spikes almost instantaneously.
An internal electromagnetic solenoid responds immediately to this severe surge. The sudden magnetic field drives a plunger forward, forcing the contacts open within a fraction of a second to isolate the fault before wiring or connected hardware suffers thermal damage.
The moment electrical contacts separate under electrical load, current ionizes the surrounding air, creating an electrical arc.
In an AC circuit, current naturally reverses direction and crosses zero multiple times per second, giving an AC breaker natural recurring opportunities to quench the arc.
Direct current never crosses zero. It flows continuously in one direction like a steady flame. Without specialized suppression, a DC arc will sustain itself across the open contact gap, rapidly burning through internal insulation or welding contacts together.
To extinguish this persistent arc, DC circuit breakers rely on active quenching designs:
Magnetic Blowout Systems: Permanent magnets or electromagnets create a perpendicular magnetic field that rapidly stretches and drives the arc away from the main contacts.
Arc Chutes (Splitter Plates): A stack of parallel, insulated steel plates that slices the stretched arc into several smaller segments. This increases total arc resistance and cools the plasma until it drops below ionization levels, forcing the arc to collapse.
A common question among installers and system integrators is: "Can a standard AC circuit breaker protect a DC circuit?"
In virtually all standard installations, the answer is No.
Comparison Point | AC Circuit Breaker | DC Circuit Breaker |
|---|---|---|
Current Behavior | Alternating waveform with natural zero-crossings | Continuous unidirectional current with no zero-crossing |
Arc Characteristics | Arc naturally weakens at each zero-crossing | Continuous, high-energy arc requiring active suppression |
Arc Chamber Design | Standard arc chute sized for zero-crossing interruption | Heavy-duty chamber with magnetic blowout coils or plates |
Contact Clearances | Standard clearances suited for AC dielectric recovery | Wider contact gaps and enhanced dielectric spacing |
Cross-Usage Safety | Cannot reliably extinguish DC arcs (fire/damage risk) | Can handle AC only when dual-rated by the manufacturer |
Safety Note: Using an AC breaker in a dedicated DC circuit presents a serious fire and equipment risk. Always confirm that the device's nameplate explicitly states a DC voltage rating and relevant product certifications (such as IEC 60947-2 or UL 489 standards).
DC circuit breakers are typically grouped into categories based on project scale, installation environment, and current requirements:
Compact, modular breakers designed for standard DIN-rail mounting.
Best For: Branch-circuit protection, solar combiner inputs, telecom distribution racks, and low-to-medium voltage battery setups. Using modular DC MCBs allows clean integration inside standard distribution boards.
Heavy-duty industrial breakers designed for substantially higher load currents and elevated system voltages. They feature rugged thermoset enclosures, robust internal arc-quenching chambers, and adjustable trip settings.
Best For: Central inverter inputs, multi-battery energy storage racks, and heavy industrial DC motor feeders where robust MCCBs are required.
Advanced devices that switch through power semiconductors rather than mechanical contacts alone, delivering extremely fast fault-clearing speeds.
Best For: Specialized mission-critical systems, EV high-power charging architectures, and modern DC microgrids.
When specifying a DC circuit breaker for your system, focus on these fundamental engineering factors rather than generic rules of thumb:
Verify Rated DC Voltage: The breaker’s rated operational voltage must meet or exceed the maximum open-circuit voltage of your DC source, including worst-case temperature variations (such as cold-morning voltage rises in solar arrays).
Account for Continuous Load Margins: Select a continuous current rating with appropriate design headroom above the normal operating load to prevent thermal nuisance tripping during prolonged full-power operation or high ambient temperatures.
Check Interrupting Capacity: Ensure the breaker’s rated short-circuit breaking capacity matches or exceeds the maximum potential fault current that the power source (especially low-impedance battery banks) can deliver.
Evaluate Housing & Site Conditions: When installing breakers outdoors or inside field combiner enclosures, confirm appropriate IP protection ratings and thermal dissipation within PV Combiner Boxes to ensure long-term stability.
Selecting the right DC circuit breaker comes down to matching your circuit's maximum operating voltage, normal current profile, and potential fault levels. Because direct current produces a sustained arc with no natural zero-crossing, certified DC-rated switchgear with active magnetic blowout and arc-splitting design is indispensable for safe operation.
A DC breaker trips under two distinct conditions: a gradual, prolonged overcurrent (which heats the thermal bimetallic element) or an instantaneous short circuit (which energizes the electromagnetic trip coil).
Some DC circuit breakers are polarized and marked with positive (+) and negative (-) terminals. These must be wired in the correct current direction so that internal magnetic fields deflect arcs properly into the arc chute. Bi-directional (non-polarized) breakers are increasingly preferred for battery storage systems where power flows in both directions during charging and discharging cycles.
Look for recognized third-party test certifications confirming compliance with international standards such as IEC 60947-2 (low-voltage switchgear), IEC 60898-2 (small DC circuit breakers), or UL 489 / UL 489B (North American requirements for DC and photovoltaic protection).
