Author: Site Editor Publish Time: 2026-04-10 Origin: Site
In the complex and high-stakes world of industrial electrical engineering, selecting the right protective devices is not just a matter of compliance—it is the bedrock of facility safety and operational continuity. As industrial facilities evolve into smart, automated hubs in 2026, the power density and complexity of electrical loads have increased exponentially. At the heart of this power distribution network are two fundamentally critical devices: the MCB (Miniature Circuit Breaker) and the MCCB (Molded Case Circuit Breaker).
While both devices serve the identical primary purpose—protecting cables, equipment, and personnel from the devastating effects of overcurrents and short circuits—their applications, mechanical designs, and interrupting capacities are vastly different. Choosing an MCB when an MCCB is required can lead to catastrophic electrical fires and explosive arc flashes. Conversely, specifying an MCCB where an MCB would suffice results in massively inflated project costs and wasted panel space.
This comprehensive technical guide is engineered for B2B procurement managers, electrical contractors, and system designers. We will dissect the technical parameters that differentiate these devices, decode the critical metrics like Icu and Ics, and provide a step-by-step sizing guide to ensure your industrial power distribution systems are safe, compliant, and cost-effective.

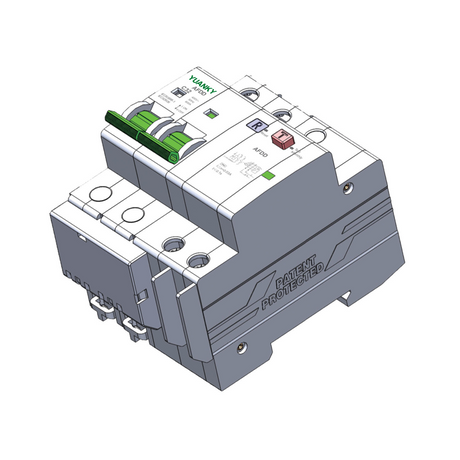

The Miniature Circuit Breaker (MCB) is an electromechanical device designed to protect an electric circuit from overcurrent, which typically manifests as either a sustained overload or a sudden short circuit. As defined by the IEC 60898 standard (for low voltage circuit breakers), MCBs are generally intended for use by uninstructed persons and do not require maintenance.
Core Characteristics of MCBs:
Current Rating (In): MCBs are manufactured in fixed current ratings, typically ranging from 0.5 Amps up to a maximum of 125 Amps. The trip current setting is fixed at the factory and cannot be adjusted by the user.
Short-Circuit Breaking Capacity: Due to their compact physical size, the internal arc chutes of an MCB have limited capacity to extinguish the massive plasma arcs generated during a short circuit. Therefore, their breaking capacity is usually capped between 6kA and 15kA.
Trip Mechanism: MCBs utilize a thermal-magnetic mechanism. A bimetallic strip bends under the heat of a sustained overload to trip the breaker, while a magnetic solenoid reacts instantaneously to the massive current spike of a short circuit.
Applications: They are the standard choice for final sub-circuit protection, lighting circuits, small motors, and general control panel wiring within electrical distribution boxes.
When the electrical demands of a circuit exceed the physical capabilities of an MCB, engineers must step up to a Molded Case Circuit Breaker (MCCB). Governed largely by the industrial standard IEC 60947-2, MCCBs are heavy-duty protective devices encased in a robust, molded insulating material (often glass-polyester or thermoset composite) designed to withstand immense electromechanical forces.
Core Characteristics of MCCBs:
Current Rating (In): MCCBs can handle massive amounts of power. Their current ratings typically start around 16 Amps and can go all the way up to 1600 Amps or even 3200 Amps in specialized high-capacity frames.
Adjustable Trip Settings: Unlike MCBs, most industrial MCCBs feature adjustable trip units. Engineers can physically dial in specific overload thresholds and short-circuit response times, allowing for precise selective coordination across a sprawling factory floor.
Short-Circuit Breaking Capacity: MCCBs are engineered with massive, multi-staged arc chutes and specialized contact repulsion technologies. This allows them to safely interrupt short-circuit currents ranging from 25kA up to 150kA or more.
Advanced Trip Units: While basic MCCBs use thermal-magnetic technology, high-end models utilize Electronic Trip Units (ETU). ETUs analyze current waveforms digitally, offering incredible precision, integrated energy metering, and IoT communication capabilities.
To summarize the fundamental differences, we have compiled a quick-reference matrix. This is crucial for rapid decision-making during the electrical design phase of any commercial or industrial project.
Technical Parameter | MCB (Miniature Circuit Breaker) | MCCB (Molded Case Circuit Breaker) |
|---|---|---|
Rated Current (In) | Up to 125 Amps | 16 Amps up to 1600+ Amps |
Interrupting Capacity (kA) | Typically up to 10kA (Max 15kA) | Typically 25kA to 150kA |
Trip Characteristics | Fixed (Cannot be altered) | Adjustable (Thermal and Magnetic) |
Trip Technology | Thermal-Magnetic only | Thermal-Magnetic or Electronic/Microprocessor |
Accessories & Add-ons | Limited (Auxiliary contacts) | Extensive (Shunt trips, UVR, motor operators) |
Primary Application | Final distribution, lighting, small loads | Main incomers, heavy machinery, motor protection |
Important Engineering Note: An MCCB is not simply a "bigger MCB." Its ability to be finely tuned and to accept remote operational commands (via motor operators and shunt trips) allows it to integrate deeply into automated factory management systems alongside advanced industrial control devices like PLCs and smart contactors.
Selecting the correct breaker involves much more than just looking at the load's running current. An incorrectly sized breaker will lead to nuisance tripping, disrupting production, or worse, failing to trip during a fault, causing a fire. Follow this systematic approach for industrial applications.
The first step is determining the maximum continuous current the load will draw under normal operating conditions. For a three-phase motor, the formula is: FLC = Power (kW) × 1000 / (√3 × Voltage × Power Factor × Efficiency).
Once the FLC is established, standard engineering practice dictates that the nominal rating of the circuit breaker (In) should be approximately 125% of the continuous load current to prevent nuisance tripping from minor fluctuations and thermal accumulation within the panel.
Different industrial loads draw different amounts of current when they first start up. A resistive heater draws a steady current, but a large induction motor may pull 5 to 8 times its running current for a few seconds. The circuit breaker must be smart enough to ignore this temporary "inrush" current while still protecting against a true short circuit. This is governed by the tripping curve:
Type B Curve: Trips between 3 and 5 times the rated current. Ideal for resistive loads, lighting circuits, and IT equipment.
Type C Curve: Trips between 5 and 10 times the rated current. The standard choice for commercial installations, small transformers, and general inductive loads.
Type D Curve: Trips between 10 and 20 times the rated current. Strictly for heavy industrial use, such as high-inrush motors, large transformers, and welding equipment.
When selecting an MCCB for a main switchboard, you must evaluate the Prospective Short-Circuit Current (PSCC) at that specific point in the electrical network. If a transformer can deliver 35,000 Amps during a dead short, your breaker must be able to break that current without exploding. You will see two ratings printed on the front of industrial MCCBs:
Icu (Ultimate Short-Circuit Breaking Capacity): This is the absolute maximum fault current the breaker can safely interrupt. However, after breaking this current, the breaker may be damaged and unfit for further use.
Ics (Service Short-Circuit Breaking Capacity): This is the fault current the breaker can safely interrupt and still remain fully functional and capable of carrying normal load current afterward. Ics is usually expressed as a percentage of Icu (e.g., Ics = 50% Icu, or Ics = 100% Icu).
For mission-critical industrial applications, such as data centers or continuous manufacturing lines, engineers strongly prefer MCCBs where Ics = 100% Icu to guarantee rapid operational recovery after a fault.
A circuit breaker's thermal trip mechanism relies on heat. Therefore, the ambient temperature inside your distribution panel drastically affects its performance. Most IEC breakers are calibrated at 30°C or 40°C. If your factory floor regularly reaches 50°C, the breaker will run hotter than expected and may trip at a lower current than its rating suggests (this is called derating).
Similarly, at high altitudes (above 2000 meters), the air is thinner, reducing its cooling capacity and dielectric (insulating) strength. Manufacturers provide derating charts that must be consulted to upsize the breaker accordingly in these harsh environments.
While MCBs and MCCBs are the heavy lifters for overcurrent and short-circuit protection, a robust 2026 industrial safety strategy requires a layered defense. Circuit breakers protect the cables and the machines, but they are not fast enough, nor sensitive enough, to protect human life from electrocution or equipment from voltage spikes.

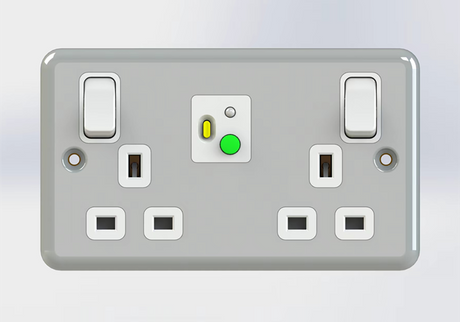

Earth Leakage Protection (RCDs):
To protect factory workers from fatal electric shocks caused by damaged insulation or water ingress, high-performance RCD protectors must be integrated. These devices monitor the balance of current and trip in milliseconds if a leakage as small as 30mA is detected. For maintenance crews working with power tools on wet factory floors or construction sites, providing portable residual current devices (PRCD) at the point of use is an absolute safety mandate.
Voltage Instability Shielding:
Industrial grids are notorious for voltage sags when heavy machinery starts, or voltage swells when massive loads are switched off. These fluctuations can instantly destroy sensitive PLCs, robotic controllers, and the electronic trip units within your MCCBs. Installing automatic voltage protectors at the incomer level ensures that your sensitive infrastructure is instantly disconnected during damaging grid instability, waiting to automatically reconnect only when safe parameters return.
In the high-stakes environment of modern manufacturing and power distribution, the reliability of your circuit breakers directly dictates the profitability and safety of your operations. An incorrectly sized or substandard breaker is the single point of failure between a smooth production run and a catastrophic electrical fire.
At YUANKY, we engineer our electrical components to exceed rigorous international standards. Whether you are wiring a massive commercial complex or automating a heavy industrial plant, our globally certified industrial circuit breakers provide the uncompromising performance you need. From highly sensitive MCBs for fine control circuits to heavy-duty, adjustable MCCBs capable of handling massive short-circuit currents, our portfolio covers the entire low-voltage spectrum.
Furthermore, we understand that world-class breakers require world-class environments. By housing your YUANKY protective devices within our ruggedized custom industrial distribution panels, you ensure that your critical infrastructure remains shielded from corrosive dust, industrial vibrations, and moisture.
Choosing the right combination of MCBs, MCCBs, and complementary safety devices can be a daunting engineering challenge. You do not have to do it alone. Partner with a manufacturer that delivers both premium hardware and expert technical guidance.
Contact Our Engineering Experts Today
Can I use an MCB for a large industrial motor?
Generally, no. Large industrial motors draw immense inrush currents upon startup. Even a Type D curve MCB might lack the necessary short-circuit breaking capacity (Icu) required at the main motor control center. An MCCB with an adjustable magnetic trip or a dedicated Motor Protection Circuit Breaker (MPCB) is required.
What is the difference between an MCCB and an ACB?
An ACB (Air Circuit Breaker) is the next size up from an MCCB. While MCCBs usually max out around 1600A to 3200A, ACBs are used for massive main incomers up to 6300A. ACBs use heavy-duty exposed air contacts and are highly serviceable, whereas MCCBs are factory-sealed in a molded case.
Can an MCCB be operated remotely?
Yes. One of the major advantages of an MCCB over an MCB is the ability to fit accessories like a motor operator mechanism and a shunt trip. This allows the MCCB to be opened and closed remotely via a PLC or SCADA system, making it essential for modern automated power grids.
If an MCCB trips, do I need to replace it like a fuse?
No, both MCBs and MCCBs are resettable switches. After clearing a fault, you simply toggle the operating handle back to the ON position. However, if the MCCB interrupts a massive short circuit near its maximum Icu limit, an electrical engineer should test its contact resistance to ensure it was not permanently degraded by the arc plasma.
Why does my MCB trip when I turn on multiple LED lights at once?
This is a classic issue of inrush current. While LED lights use very little running power, their internal capacitive drivers pull a massive spike of current for a fraction of a second when energized. If you are using a Type B MCB, this spike will cause a nuisance trip. Upgrading to a Type C MCB usually solves this issue.
