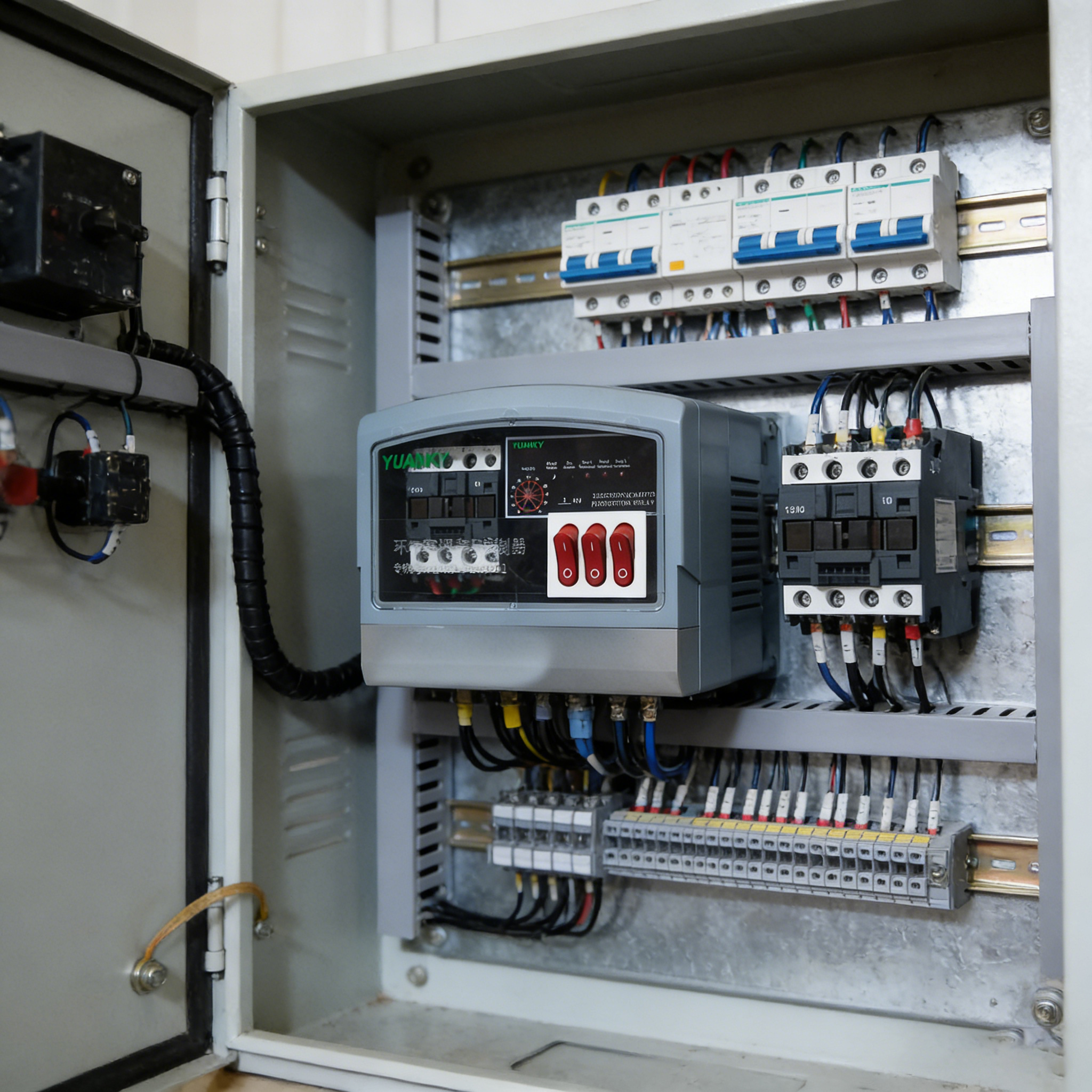

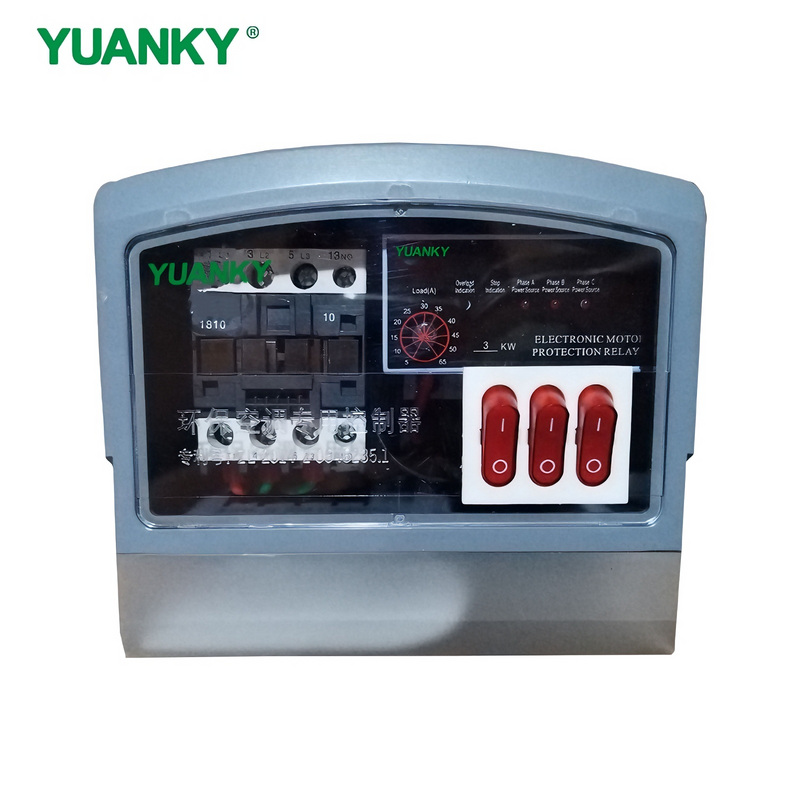

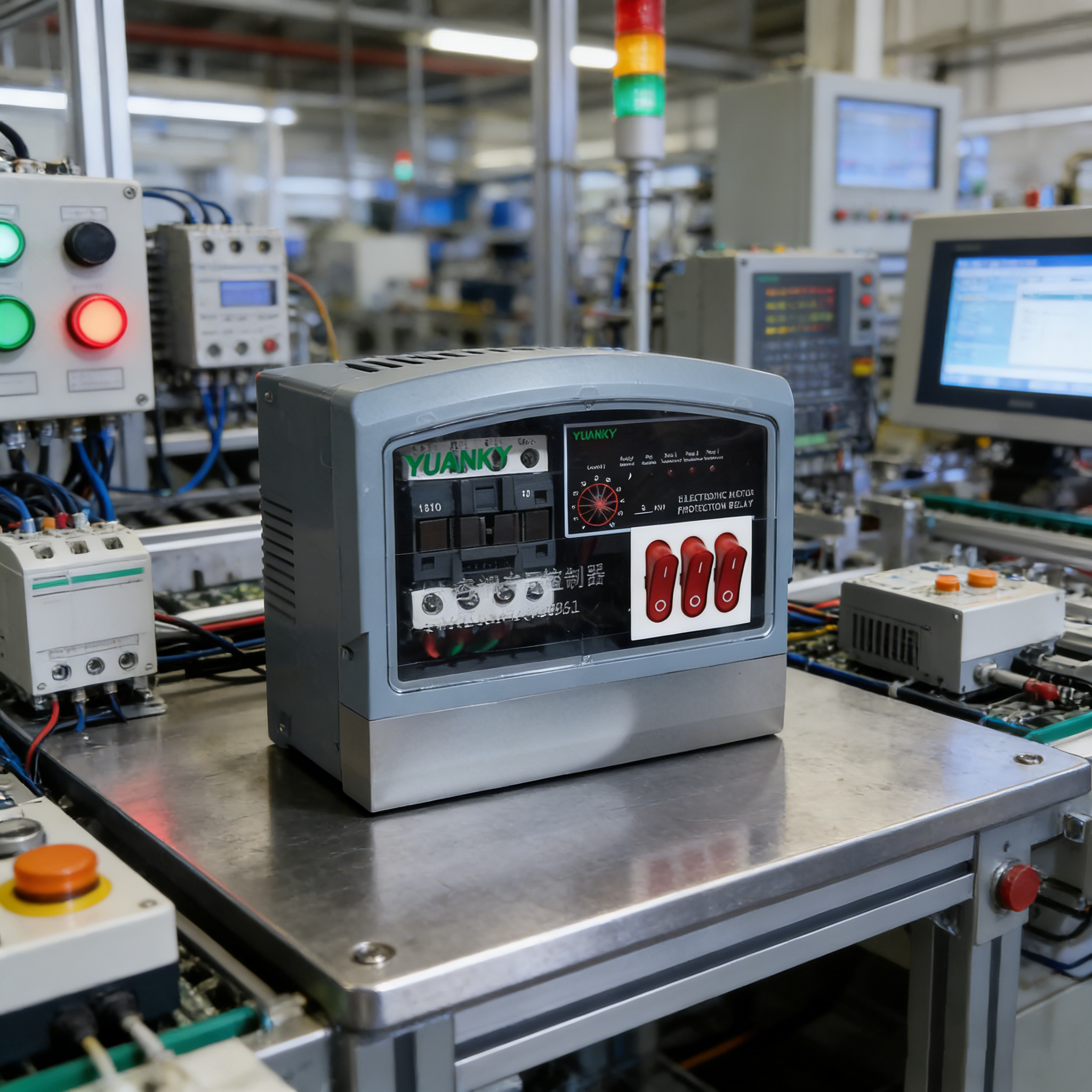

QCX5 Smart Series Magnetic Starter

QCX5 Smart Series Magnetic Starter (hereinafter referred to as starter) is mainly used for AC 50Hz or 60Hz. rated working pressure to 660V. power to 22KW three _phase squirrel coge asynchronous motor starting. continuous operation, overload operation of motor and its circuit protection, and artificial power supply circuit for breaking the motor.
The starter and MS-K have the same functions and can be used interchangeably. It is an ideal replacement for old products such as QC10.

Availability:
  • America

Model and implication

1

Normal working conditions and installation condition

■1~5 pairs of ACcontactors,

■The inclination of the mounting surface and the vertical surface does not exceed 30° ;

■It should be installed in places where is no significant vibration and shock.

Structural features

The QCX5 series magnetic starter is made of spray-coated iron shell The shell is beautiful. the shell is dirm and closed, and it can adapt to the harsh outdoor working environment. The starter has a phase- break protection function that prevents accidents in which the motor is damaged by single phase operation due to phase failure.

The QCX5 series magnetic starters produced by our company are widely used in the air compressor manufacturing industry,

Technical Parameters

The main technical parameters of the contactor are shown in table 1;

Operating choracteristics: pul-in voltoge 85-100% Us. release voltoge 20-75% Ue Ue is the rated

working voltage, Us in the rated control power supply voltage Us=Uel

Model QCX-32
3KW
QCX5-32
 4KW
QCX5-32
5.5KW

QCX5-32

7.5KW

QCX5-50
11KW

QCX5-50

15KW

QCX5-50

22KW

Rated operoting
current
(A)AC-3
220V 11 13 18 22 22 30 40
380V 9 12 16 22 22 30 40
Rated operating
power
(KW)AC-3
220V 2.5 3.5 4.5 5.5 5.5 7.5 11
380W 4 5.5 7.5 11 11 15 18.5
660W 4 5.5 7.5 7.5 7.5 11 15
Thermal relay thermal
component rated
current(A
0.24A/0.35A/0.5A/
0.7A/0.9A/1.3A/17A/2.1A/
2.5A/3.6A/5A/6.6A/9A/(11A)(15A)
0.24A/0.35A/0,5A/
0.7A/0.9A/1.3A/17A/2.1A
2.5A/3.6A/5A/6.6A/9A/(11A)15A)
19 A
22-45A
