What Is an RCBO Breaker? Definition, Function & Why You Need One
1. Introduction
Electrical safety has become more critical than ever—especially with today’s complex home and industrial installations. Enter the RCBO breaker, a compact device that fuses two protective functions into one: overcurrent protection and residual current (leakage) protection.
If you're asking:
l What is an RCBO?
l Why should I choose RCBO over MCB or RCD?
l Where should it be installed?
You're in the right place.
2.What Exactly Is an RCBO?

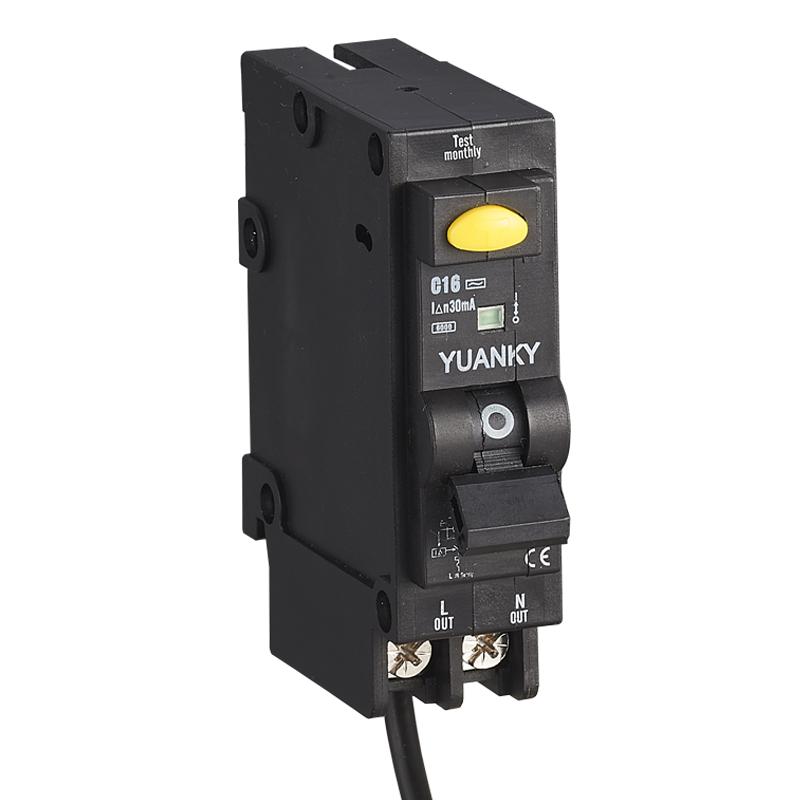

RCBO stands for Residual Current Circuit Breaker with Overcurrent Protection.
Unlike standard breakers that only monitor overload or earth leakage, an RCBO does both. It's essentially:
�� A circuit protector that guards against short-circuits, overloads, and electric shock risks—all in one device.
RCBOs are used to individually protect circuits such as bathrooms, kitchens, or outdoor sockets—where high risk of water exposure or heavy loads exists.
2.️ How Does an RCBO Breaker Work?
RCBOs work by monitoring two things simultaneously:
Overcurrent protection
– Trips the breaker if current exceeds safe limits (like MCB).
– Prevents overheating and fire hazards.
Leakage protection
– Continuously checks if there's any current leaking to the earth.
– Trips immediately if the difference between the live and neutral exceeds 30mA.
Here's a visual diagram of how it works:
3.✅ Advantages of Using RCBOs
Benefit | Description |
All-in-One Protection | Combines the roles of an MCB + RCD |
Space-Saving | Requires only one module per circuit |
Selective Tripping | Only the faulty circuit shuts off—not the whole system |
Enhanced Safety | Fast response to leakage and overload (<40ms trip time) |
Easier Troubleshooting | Isolated faults are easier to detect and fix |
RCBO vs MCB vs RCD vs RCCB
Device | Function | Has Overcurrent Protection? | Has Leakage Protection? |
MCB | Overload / short-circuit | ✅ Yes | ❌ No |
RCD / RCCB | Residual current protection | ❌ No | ✅ Yes |
RCBO | Both combined | ✅ Yes | ✅ Yes |
Why RCBO wins: It protects each circuit individually, making fault detection and system continuity better.

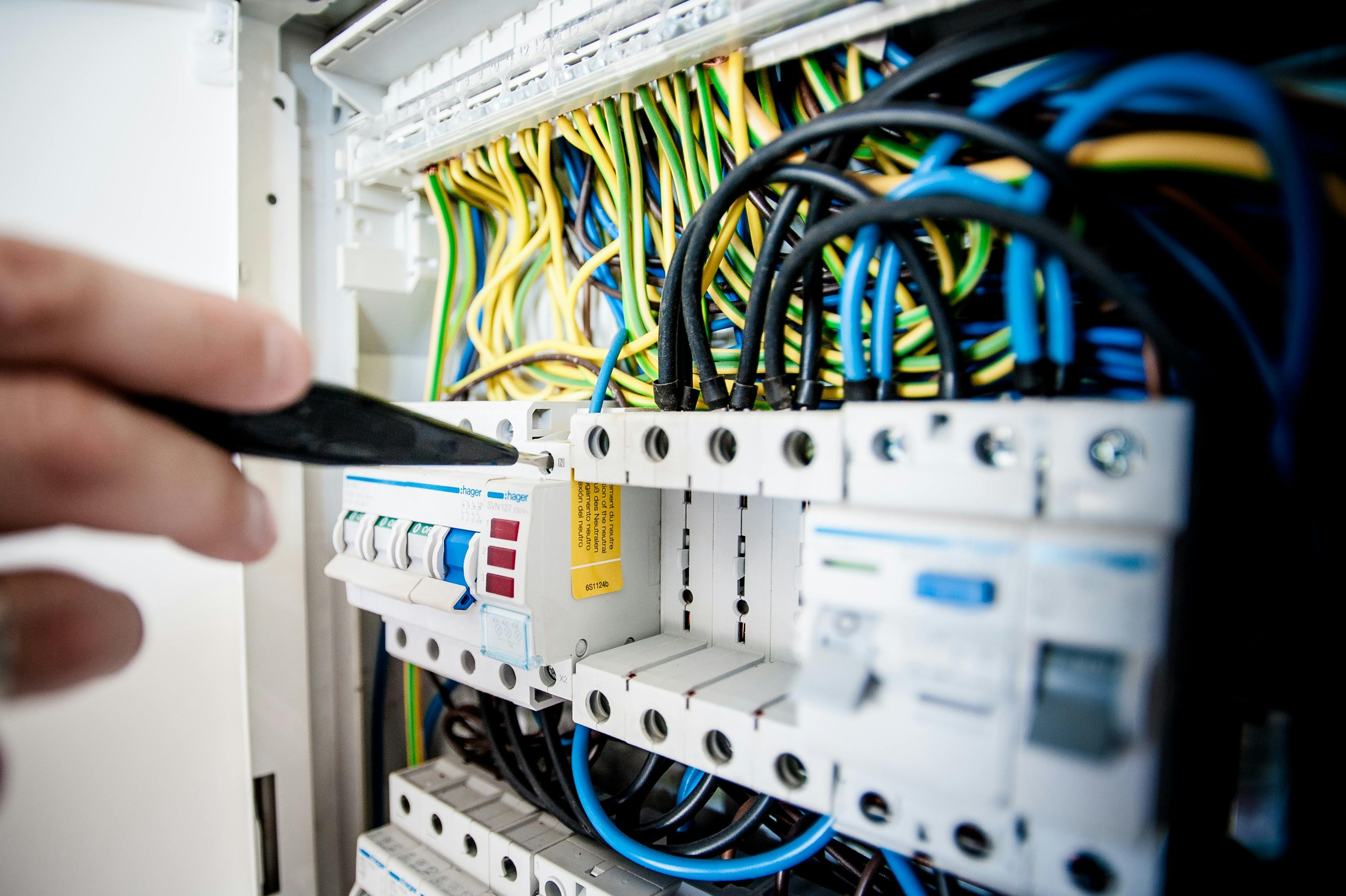

4. Where Should You Use RCBOs?
RCBOs are ideal for:
Residential use
– Bathrooms, kitchens, outdoor lights, air conditioners
Commercial buildings
– Server rooms, lighting panels, power sockets
Industrial zones
– Heavy machinery, production lines
Sensitive environments
– Hospitals, schools, laboratories
5. How to Select the Right RCBO?
When choosing an RCBO, consider:
Rated Current (In): 6A–40A based on the load
Tripping Curve (B, C, D types): Based on the nature of the load (resistive or inductive)
Leakage Sensitivity:
– 30mA for general circuits
– 10mA for areas needing high protection (nurseries, hospitals)
Certification: Look for IEC/EN 61009, CE or UL marks
6.Installation & Maintenance Tips
Always install with proper L & N wiring.
Test using the T (test) button every 3–6 months.
Label each RCBO according to its protected circuit for easy identification.
Hire a certified electrician for installation.
7.❓ Frequently Asked Questions
Q: Can I replace an MCB+RCD with a single RCBO?
Yes. That’s the main purpose of RCBOs: compact, dual-function protection.
Q: Why does my RCBO keep tripping?
Likely causes include:
ü A faulty appliance
ü Moisture in wiring
ü Actual overload or earth leakage
Q: Is RCBO installation mandatory?
In many countries, RCBOs are required by modern wiring codes for wet zones or outdoor circuits.
8. Conclusion
RCBOs are modern, reliable, and space-saving solutions for comprehensive electrical protection. Whether you're upgrading a residential distribution board or designing a commercial system from scratch—RCBOs offer unmatched safety and efficiency.
9. YUANKY RCBO Breaker
Recommended: YUANKY RCBO Breakers for Superior Safety

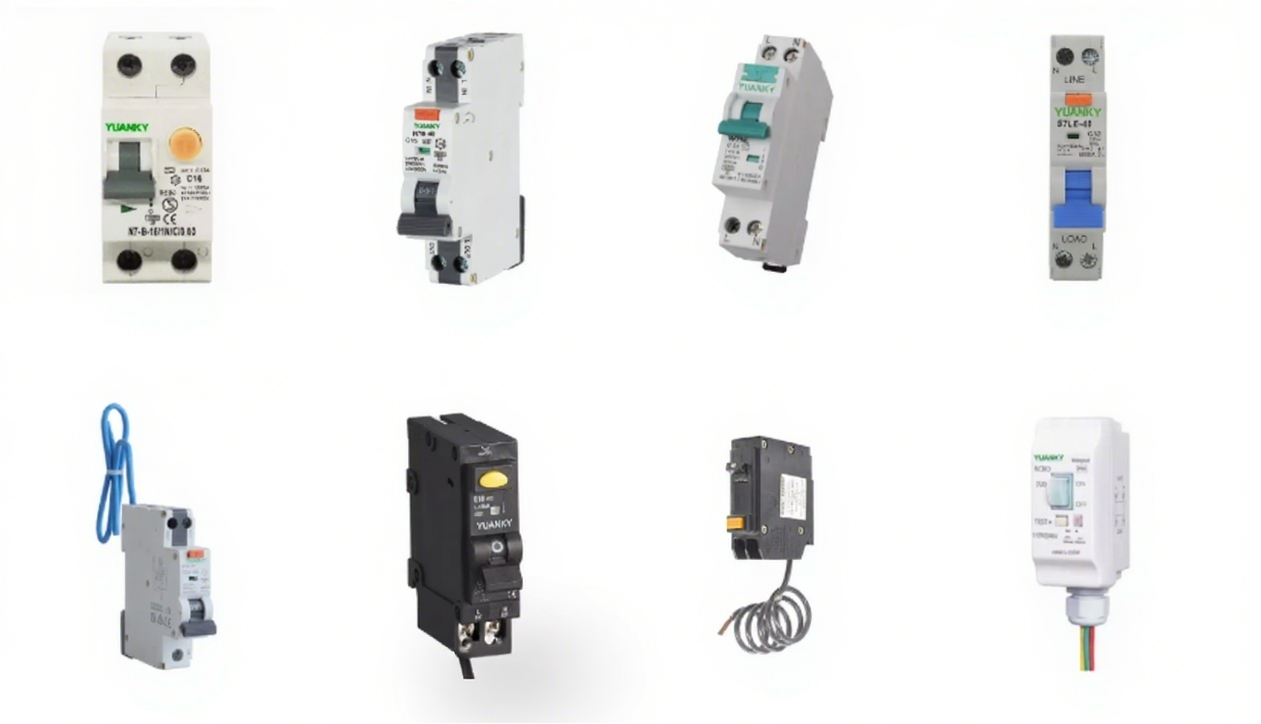

Looking for high-performance, certified RCBO breakers? YUANKY offers a wide range of RCBO products with reliable leakage and overload protection—ideal for residential, commercial, and industrial use. Models include:
Ø 1P+N & 2P configurations, from 6A to 63A
Ø B & C curve options, for different load types
Ø Adjustable sensitivity, waterproof (IP66/IP68) units available
Ø Compliant with EN61009, CE, IEC standards
✅ Upgrade your circuit protection today with YUANKY RCBO breakers—built for safety, efficiency, and long-term reliability.
Explore the full RCBO product range now
Need help choosing the right RCBO for your application? Contact our experts or explore our product catalog now.
