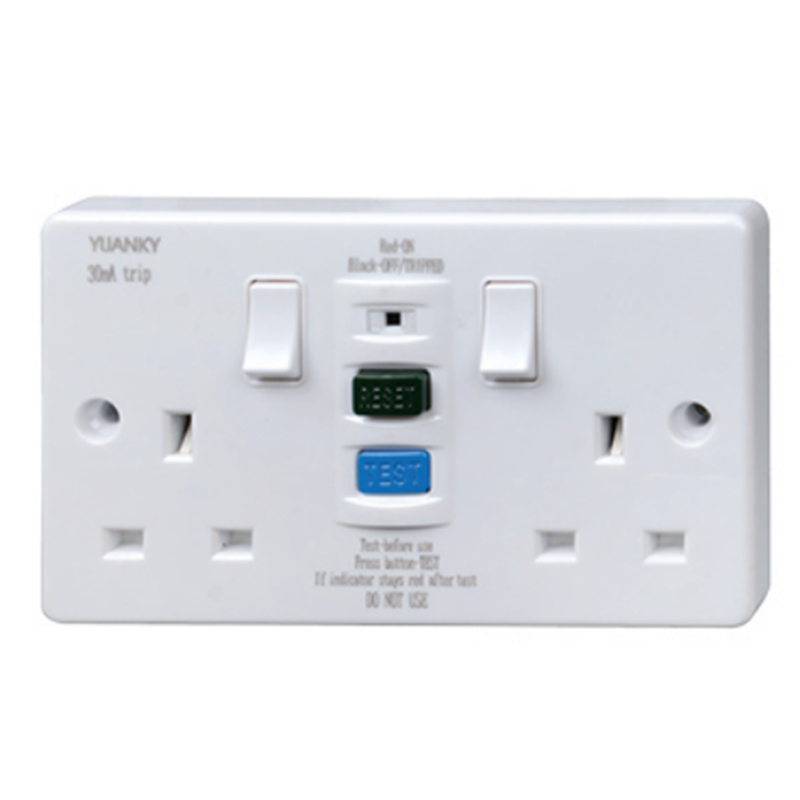

Twin RCD Plastic and UF Socket, Switched

An easily fitted Socket incorporating a Residual Current Device, give much greater safety in the use of electrical appliances against a risk of electrocution. 0230SPW plastic and UF type can be fitted to a standard box with minimum depth of 25mm. 0230SMG metal type when installing an earth link must be wired to the earth terminal in the box by using side knockouts. Press green reset(R)button and window indicator turns red Press blue test(T)button and window indicator turns black means the RCD has tripped successfully. Designed and manufactured in accordance with the relevant clauses of BS7288,and used with BS1363 plugs fitted with a BS1362 fuse only.
