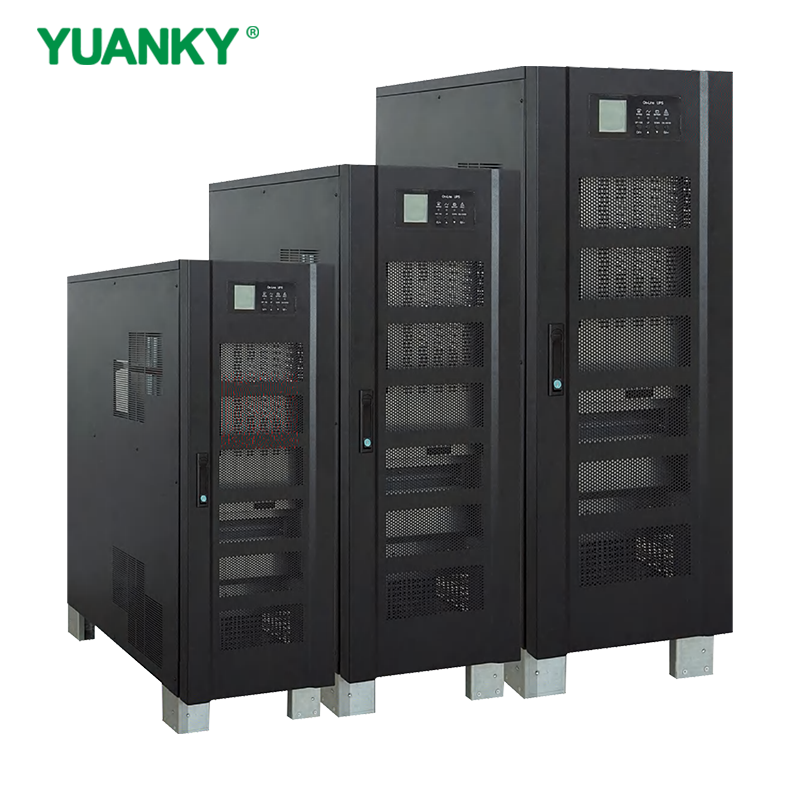

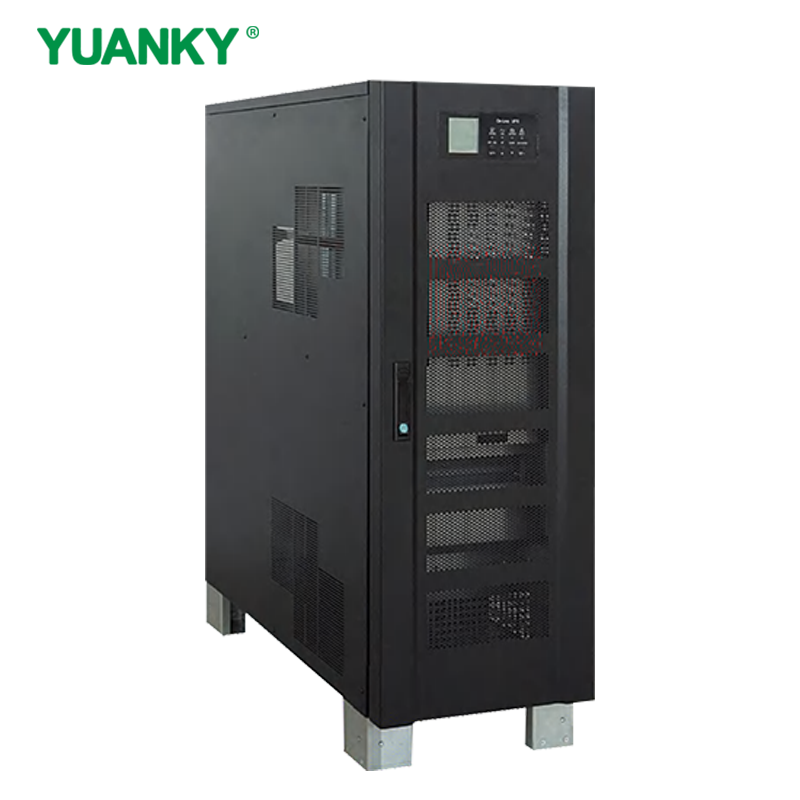

YUANKY 10K 800K UPS Technical LOW FREQUENCY 3/3 Series

Model 10K 15K 20K 30K 40K 60K 80K 100K 120K 160K 200K 250K 30ок 400K 500K 600K 700K 800K Quantity of battery 29/30/31/32 PCS (12V in series) Voltage 384VDC Current of charging default 10A; Max=capacity (KW) /total battery voltage (real-time voltage), the max current less than 40A default 10A; max 40A; max current of full load 5A Float charging voltage 13.5VDC /each (12V) Over voltage protection 14.5VDC/each (12V)
Availability:
Inquire Add to Basket

  • LOW FREQUENCY 3/3 Series

  • YUANKY

  • America

item value
Place of Origin China

Zhejiang
Brand Name Yuanky
Model Number LOW FREQUENCY 3/3 Series
Electric Energy 8000Wh
Battery Type Lead Acid Battery
Phase Single Phase
Protection Short Circuit
Weight 118KG
Type Line Interactive
Application Security / Monitoring / Alarm
Voltage 380V-400VAC
Frequency range(battery mode) 50-60Hz
Full protection Overload, discharge, and overcharge protection
Efficiency >90%
Humidity 5%~ 95% No condensation
Working temperature 0°C-55°C


Power Supply LOW FREQUENCY 3/3 Series UPS Technical LOW FREQUENCY 3/3 Series
