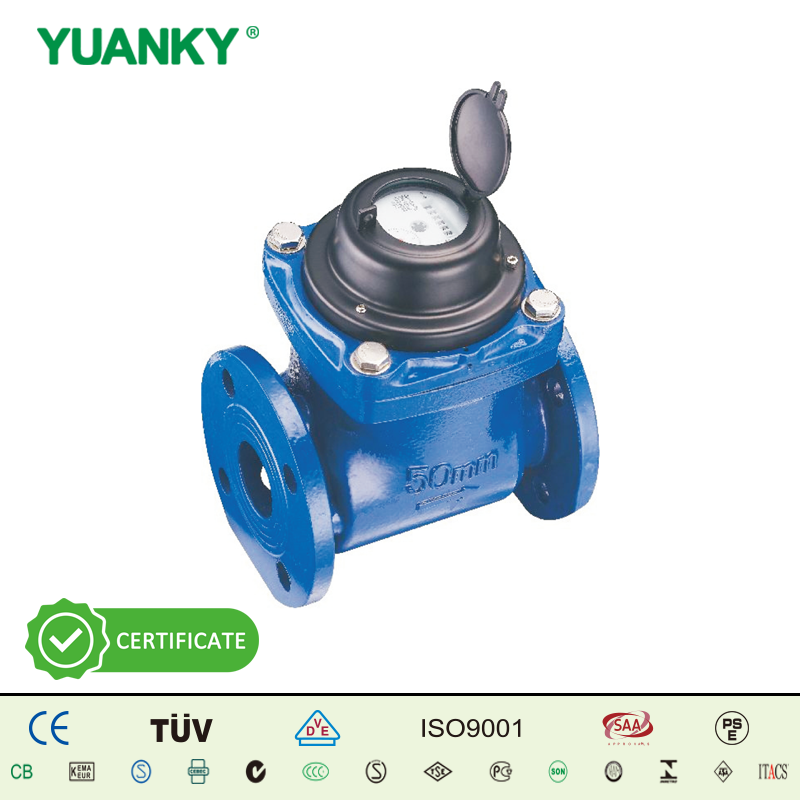

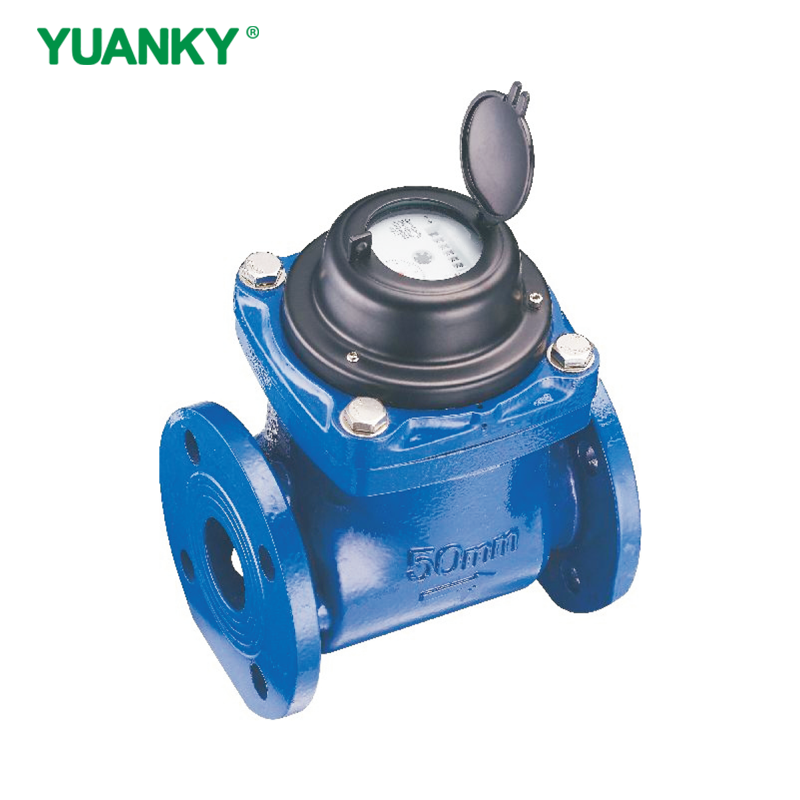

HWLC‑xxE3 (DN50‑DN300)
YUANKY
America, Europe, Britain, Australia, Southeast Asia, Philippines, I, Africa, French, Arabic, German
Product Features

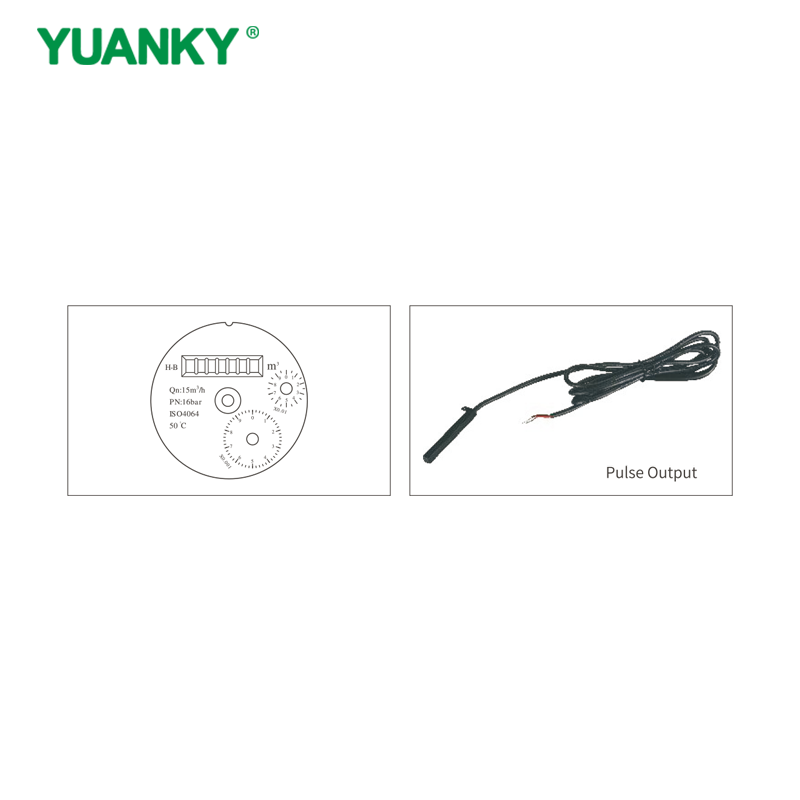

YUANKY HWLC‑xxE3 removable horizontal dry type woltman water meter comes with removable insert structure, sealed counter mechanism with magnetic transmission for direct reading on numerical rolls, its dial can rotate 360°, it is suitable for industry and irrigation application and prepared for pulse switch mountable even after installation, remote transmission device can be added upon request with optional pulse output of 100L/Pulse,1000L/Pulse, it adapts to cold water ≤30℃ and hot water up to 90℃ with water pressure ≤1MPa (PN:1.6MPa/16bar) and pressure loss ΔP≤0.1MPa, its measurement accuracy reaches ±5% from minimum flow‑rate(qmin) inclusive to transitional flow‑rate(qt) exclusive and ±2% from transitional flow‑rate(qt) inclusive to overload flow‑rate(qs) exclusive.
Technical parameters
| Size (mm) | Class of Measurement | Maximum Flow qs(m³/h) | Nominal Flow qp(m³/h) | Transitional Flow qt(m³/h) | Minimum Flow qmin(m³/h) | Minimum Reading min(m³) | Maximum Reading max(m³) |
|---|---|---|---|---|---|---|---|
| 50 | B | 30 | 15 | 3 | 0.45 | 0.002 | 9,999,999 |
| 65 | B | 50 | 25 | 5 | 0.75 | 0.002 | 9,999,999 |
| 80 | B | 80 | 40 | 8 | 1.2 | 0.002 | 9,999,999 |
| 100 | B | 120 | 60 | 12 | 1.8 | 0.002 | 9,999,999 |
| 125 | B | 200 | 100 | 20 | 3 | 0.02 | 99,999,999 |
| 150 | B | 300 | 150 | 30 | 4.5 | 0.02 | 99,999,999 |
| 200 | B | 500 | 250 | 50 | 7.5 | 0.02 | 99,999,999 |
| 250 | B | 800 | 400 | 80 | 12 | 0.02 | 99,999,999 |
| 300 | B | 1200 | 600 | 120 | 18 | 0.02 | 99,999,999 |
