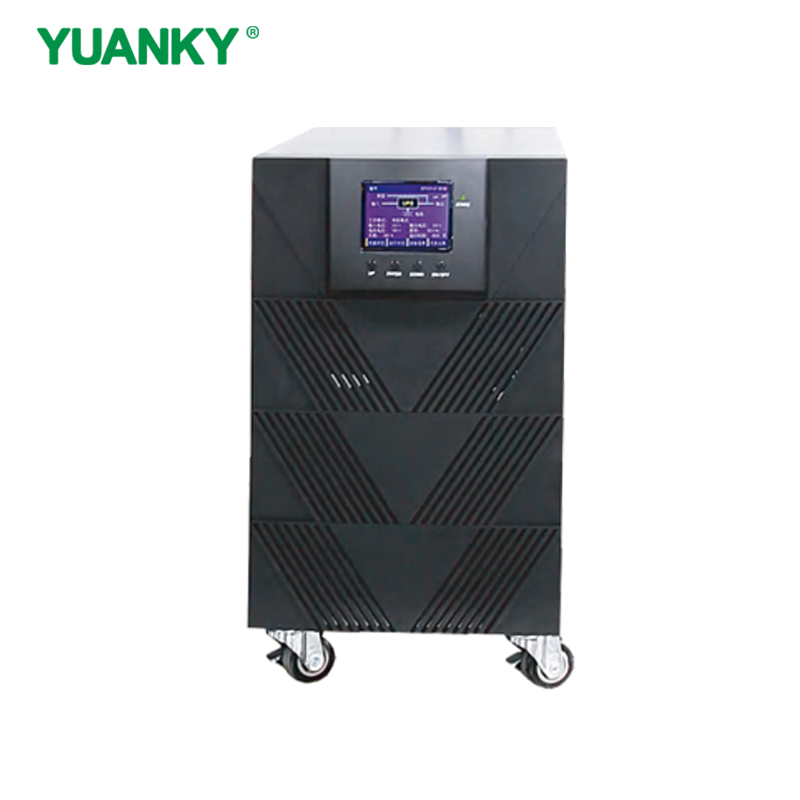

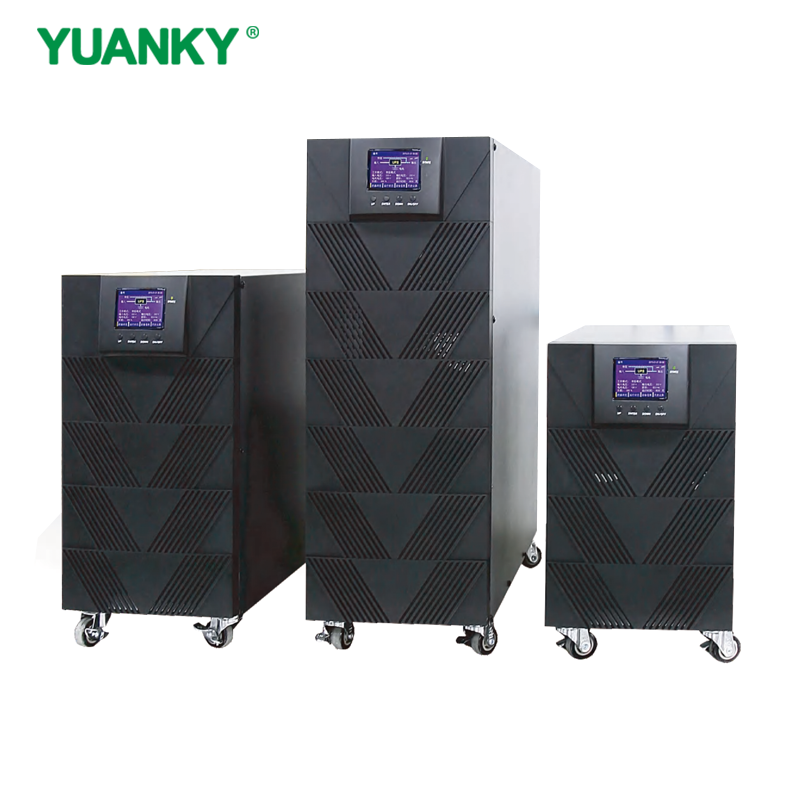

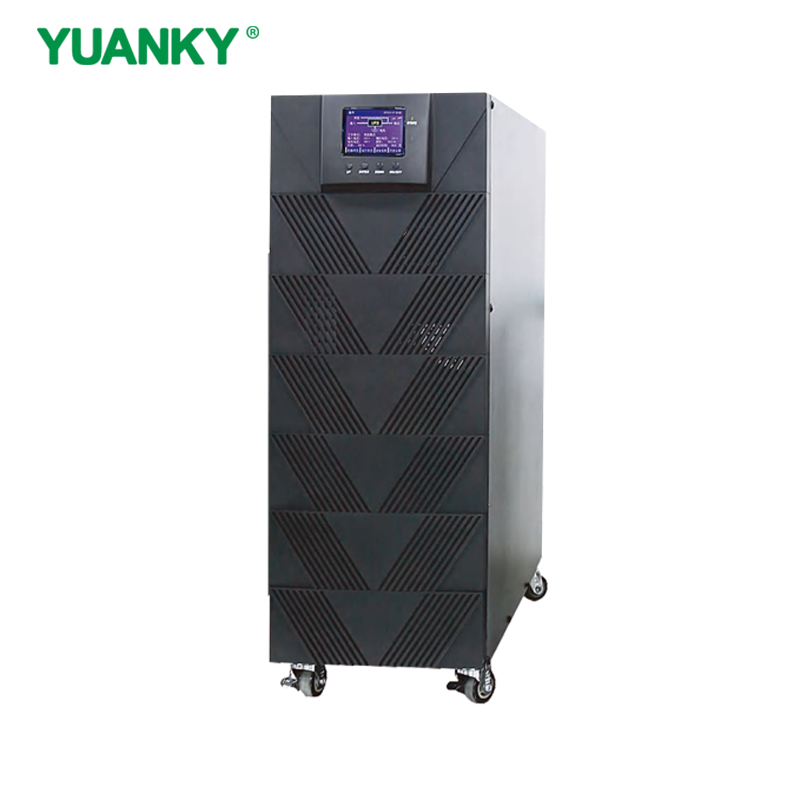

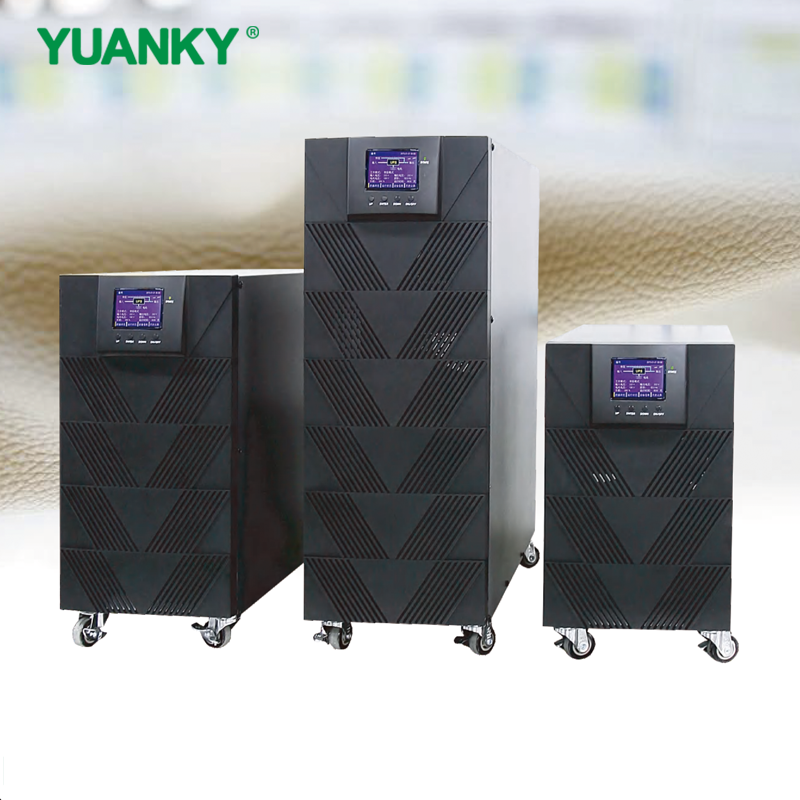

YUANKY MC6KL31 6KVA/4.8KW MC30KL31 30KVA/24KW UPS Technical LOW FREQUENCY 3/1 Series

Share to:

YUANKY MC6KL31 6KVA/4.8KW MC30KL31 30KVA/24KW UPS Technical LOW FREQUENCY 3/1 Series

Model MC6KL31 MC10KL31 MC15KL31 MC20KL31 MC30KL31 Capacity 6KVA/4.8KW 10KVA/8KW 15KVA/12KW 20KVA/16KW 30KVA/24KW Host Machine Specification UPS Structure Online Double Conversion Appearance Low Frequency with Output Isolated Transformer Overall Efficiency (AC-AC) >85% Noise (In 2 meters) <50dB Working Temp -10-40°℃ Storage Temp -25~60°℃ (Without Batteries) Humidity <95%Non-Condensing Safety Standard IEC62040 Parallel Redundancy Protections Available Overload, Short-Circuit, Over Temp., Utility Power Voltage High/low, BAT Voltage High/low DC Start Available Generator Compatibility Available Display LCD Display: Multi-L anguage with all kinds of messages, Input Output Status, ECO Mode Settings, INV Temp. TX Status Calendar, Time, Serial Number, Model, Structure, History Logs, Battery Test.LED Indicators: UPS States Indicator"

Availability:



Inquire Add to Basket

Model:
UPS Technical LOW FREQUENCY 3/1 Series
Brand:
YUANKY
Intercontinental Product:
America

Product Description

item	value
Place of Origin	China
	Zhejiang
Brand Name	Yuanky
Model Number	MC6KL3
Electric Energy	4800Wh
Battery Type	Lead Acid Battery
Phase	Single Phase
Protection	Short Circuit
Weight	9KG
Type	Line Interactive
Application	Security / Monitoring / Alarm
Voltage	220V-240VAC
Voltage range	±1%
Frequency range(battery mode)	46-54Hz
Full protection	Overload, discharge, and overcharge protection
Noise Level	Less than 50dB
Humidity	<95%Non-Condensing
