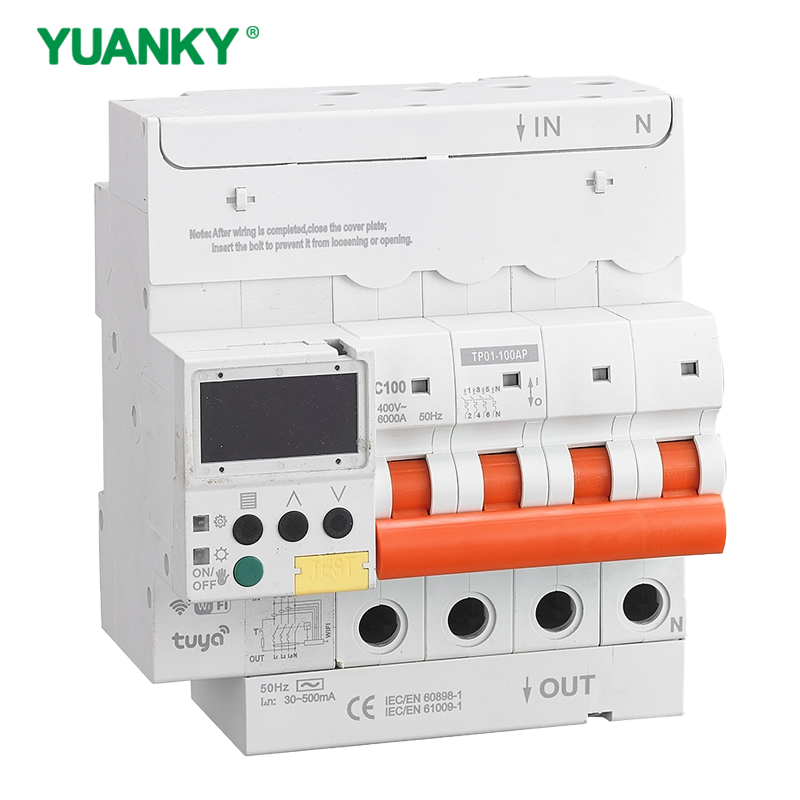

HW01-100APlot Smart Circuit Breaker

Hw series Internet of Things circuit breaker is a multi-functional intelligent switch that integrates metering, overload and short circuit. Over and under voltage, leakage, over temperature protection, remote opening and closing, timing, network communication and other functions.

Availability:



Inquire Add to Basket

Model:
HW01-100A
Brand:
Yuanky
Intercontinental Product:
America

Product Description

Instantaneous	C type (other types, can be customized)
Trip type	40A,63A,100A
Rated current	GB10963.1 GB16917

Standards compliont	≥6ka
Short-circuit breaking capacity	When the line is short-circuited, the circuit breaker 0.01S power-off
Short circuit protection	Protection
Leakage protection	When the line is leaking. the circuit breaker 0.1S power-off protection
Leakage protectionValue	30-500Ma can be set
Leakage self-test	According to actual usage, you can set the day, hour and minute
Overvoltage and under-voltage protections	When the line is overvoltage or undervoltage, the circuit breaker will be powered off after 3s (0-99s can be set) Overvoltage setting value 250-320V, undervoltage setting value: 100-200v
Power on delay	When A call comes in, it automatically closes, 0-99s can be set
Power off time delay	When the power grid is suddenly cut off, the circuit breaker is in the open state, O-10s can be set
Setting rated current	0.6~1 In
Overlood delay protection	0-99S can be set

Overlood temperature protection	0-120°C can be set, circuit breaker opening time can be set 0-99s
Due to power Over power	The amount of load change can be set, and the breaker opening time can be set from 0-99s
Power limit	When the limited power is reached, the circuit breaker will be powered off after 3s (0-99s can be set)
Timing control	Can be set, the body can be set 5 groups of time
Unbalanced	Both voltage and current can be set as a percentage, and the protection time can be set from 0-99s
Recording	680 Switch event logs can be queried locally
Display	Chinese and english menu
Frequency	Record various operation times of the circuit breaker to determine whether the circuit breaker is within the effective life
Maintain	It can perform setting self-check, device reset,battery reset, record reset, clock synchron Zation, restart device, restore sustem default, etc.
View	It can perform setting self-check, device reset,battery reset, record reset, clock synchron Zation, restart device, restore sustem default, etc.

Manual and automaticintegrated control	It can be controlled by mobile phone app or pc, which can be controlled by buttons, and can also be controlled by push rod （handleh）
Cover plate, pull rod	Equipped with anti-stealing and repairing anti-misclosure mechanical interlock function
Communication method	RS485 standard configuration, 2G/4G.WIFI, NB, RJ45, etc. Can be selected
Software remote upgrade	Programs can be customized according to actual usage conditions to realize remote updates and upgrades

smart circuit breaker lot Smart circuit breaker lot circuit breaker
