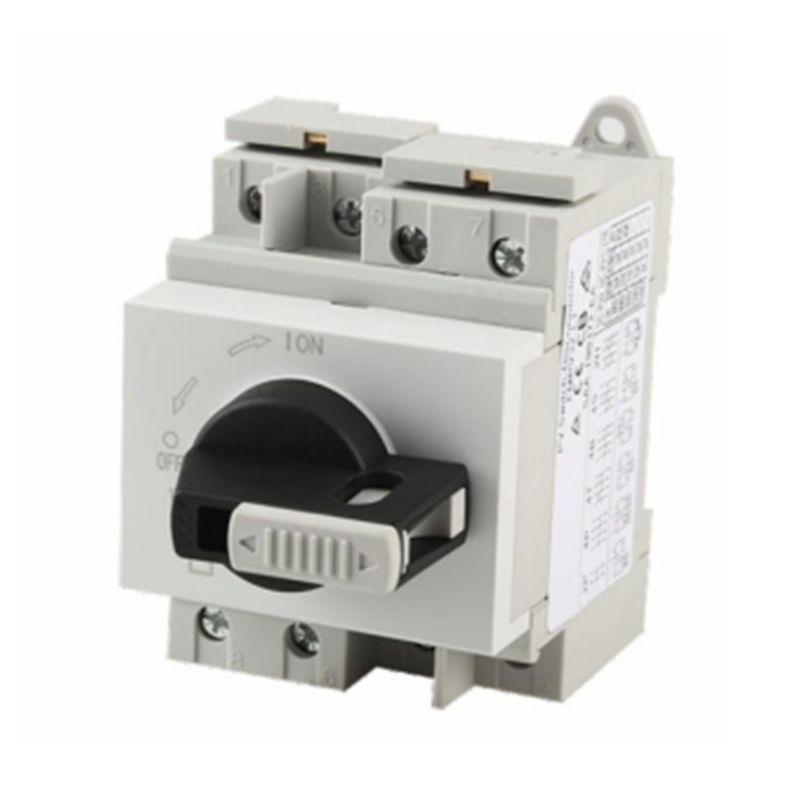

L1 Series DC Isolator Switch

L1 Series DC Isolator Switch is applied to 1-20 KW residential or commercial photovoltaic system, placed between photovoltage modules and inverters. Arcing time is less than 8ms, that keeps solar system more safe. To ensure its stability and long service life, our products are made by components with optimum quality. Max voltage is up to 1200V DC. It holds a safe lead among similar products.

Availability:



Inquire Add to Basket

Model:
L1
Brand:
Yuanky
Intercontinental Product:
America

Product Description

Type		FMPV16-L1,FMPV25-L1,FMPV32-L1
Function		Isolator,Control
Standard		IEC60947-3,AS60947.3
Utilization category		DC-PV2/DC-PV1/DC-21B
Pole		4P
Rated frequency		DC
Rated operational voltage(Ue)		300V,600V,800V,1000V,1200V
Rated operational voltage(le)		See the next page
Rated insulation voltage(Ui)		1200V
Conventional free air themal current(lth)		//
Conventional enclosed thermal current(lthe)		Same as le
Rated short-time withstand current(lcw)		1kA,1s
Rated impulsed withstand voltage(Uimp)		8.0kV
Overvoltage category		Ⅱ
Suitability for isolation		Yes
Polarity		No polarity,"+"and"-"polaritiescould be interchanged.
Service lifelcycle operation
Mechanical		18000
Electrical		2000
Installation Environment
ingress protection	Switch Body	IP20
Storge temperature		-40℃~+85℃
Mounting Type		Vertically or horizontally
Pollution degree		3
