250Watt Maximum power
Mono-crystalline solar panel

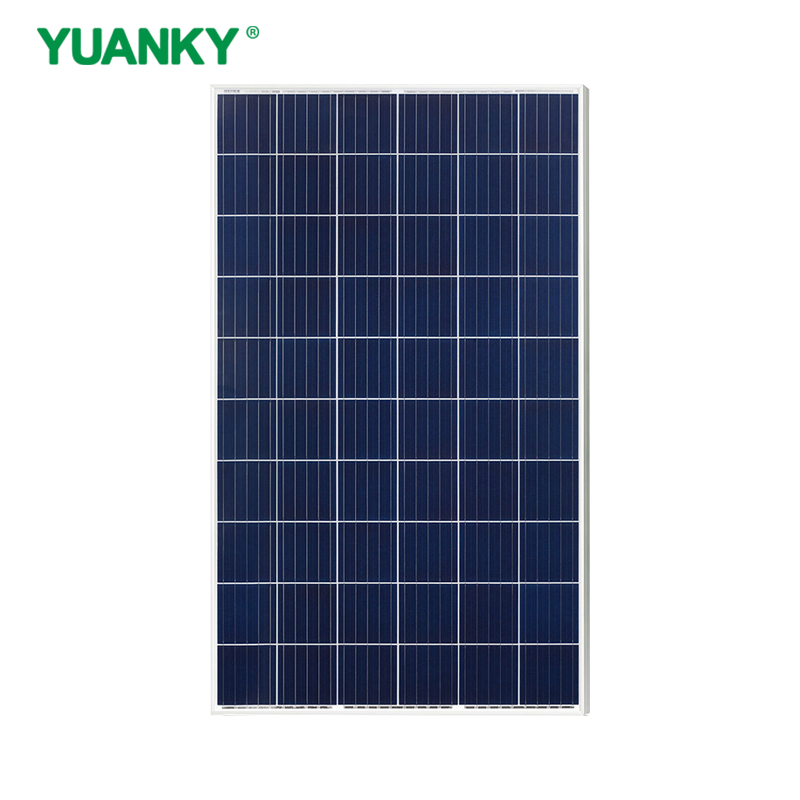

Poly-crystalline solar panel
HWSP-210 HWSP-240
HWS P-220 ; HWSP-250
HWS P-230
Quality and safety
●25-year power output warranty with China Pacific Property Insurance Co.,Ltd
●Rigorous quality control meeting the highest international standards
●Iso 9001: 2008(Quality Management System)certified factories manufacturing world-class products
Recommended Applications
●On-grid utility systems
●On-grid commercial systems
●Off-grid ground mounted systems
Electrical Characteristics
Characteristics | HWSP-210 | HWSP-220 | HWSP-230 | HWSP-240 | HWSP-250 |
Open-Circuit Voltage(Voc) | 36.6 | 36.8 | 37 | 37.5 | 43.3 |
Optimum Operating Voltage(Vmp | 29.4 | 29.8 | 30 | 30.6 | 34.4 |
Short-Circuit Current(lsc) | 7.62 | 8 | 8.18 | 8.38 | 8.05 |
Optimum Operating Current(Imp) | 6.8 | 7.39 | 7.66 | 7.48 | 7.27 |
Maximum power at STC(Pmax | 210W | 220W | 230W | 240W | 250W |
Operating Temperature | -40℃to+85℃ | ||||
Maximum System Voltage | 1000VDC | 1000VDC | 1000VDC | 1000VDC | 1000VDC |
Series Fuse Rating | 20A | 20A | 20A | 20A | 20A |
Power Tolerance | ±3% | ±3% | ±3% | ±3% | ±3% |
NO.of Cells | 60 | 72 | |||
Dimensions(MM) | 1650x992x40 | 1650x992×40 | 1650x992×40 | 1650×992×40 | 650x992x40 |
Weight (KG) | 19 | ||||
Front Glass | 3.2mm tempered glass | ||||
Frame | Anodised aluminium alloy | ||||
Junction Box | PV-320(TUV) |
Temperature Coefficents
Nominal Operating Cell Temperature(NOCT) | 45±2℃ |
Temperature Coefficient of Pmax | -0.48%/℃ |
Temperature Coefficient of Voc | -0.34%/℃ |
Temperature Coefficient of Isc | -0.017%/℃ |
