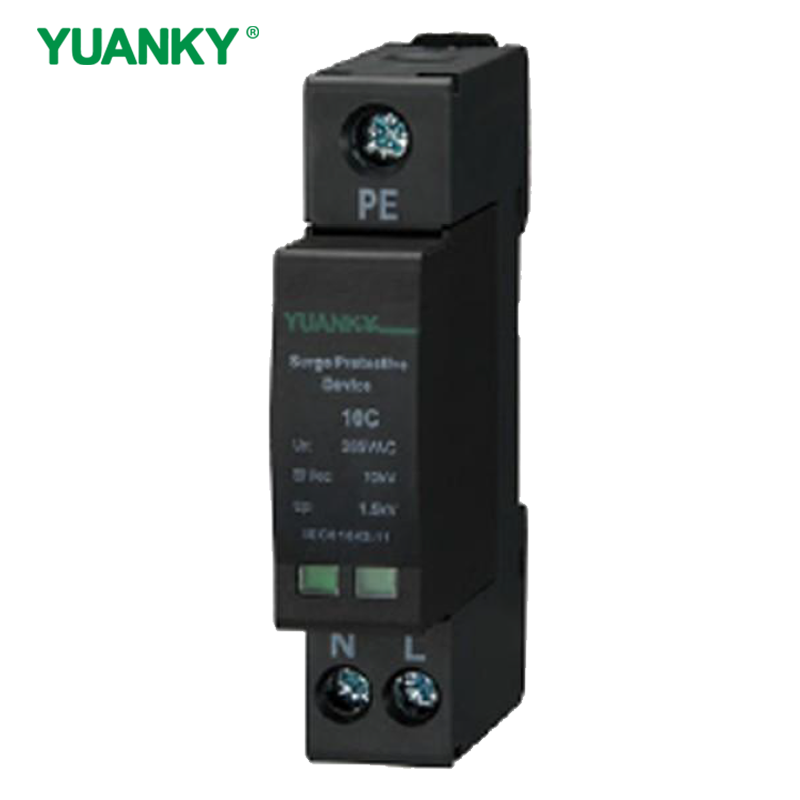

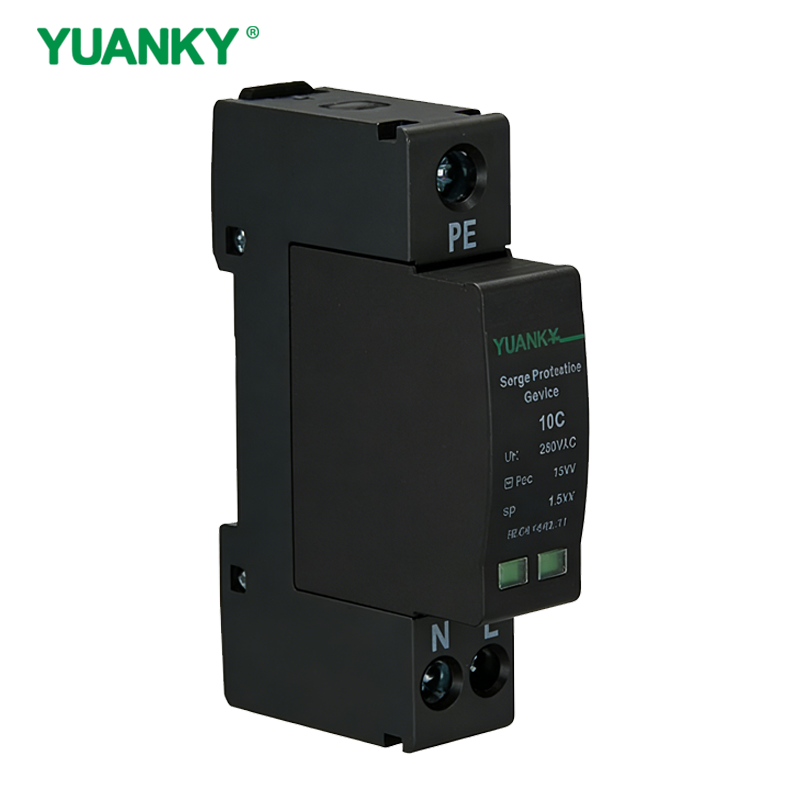

Technical Data
Max Continuous Operating Voltage | (AC)Uc | 385V |
Rated Voltage | (AC)Un | 220V |
Nominal discharge current (T3) | Uoc | 10kA |
Protection level | Up | 1.5 |
Response Time | tA | 100ns |
SPD Special disconnector | Recommend | SSD40 |
Residual current-Leakage current at | lpe | NONE |
Remote communication | With | |
Remote communication connection | 1411:NO,1112:NC | |
Remote contact rated current | 220V/0.5A | |
Mechnical characteristics
Connection Byscrew terminals | 4-16mm² |
Terminal Screw Torque | 2.0Nm |
Recommended Cable cross Section | ≥10mm² |
Insert wire length | 15mm |
Mounting DIN rail | 35mm (EN60715) |
Degree of Protection | IP20 |
Housing | PBT/PA |
Flame retardant grade | UL94VO |
Operating temperature | -40℃~+70℃ |
Operating relative humidity | 5%-95% |
Working atmospheric pressure | 70kPa～106kPa |
Technical Data
Max Continuous Operating Voltage | (AC)Uc | 385V |
Rated Voltage | (AC)Un | 220V |
Nominal discharge current (T3) | Uoc | 10kA |
Protection level | Up | 1.5 |
Response Time | tA | 100ns |
SPD Special disconnector | Recommend | SSD40 |
Residual current-Leakage current at | lpe | NONE |
Remote communication | With | |
Remote communication connection | 1411:NO,1112:NC | |
Remote contact rated current | 220V/0.5A | |
Mechnical characteristics
Connection Byscrew terminals | 4-16mm² |
Terminal Screw Torque | 2.0Nm |
Recommended Cable cross Section | ≥10mm² |
Insert wire length | 15mm |
Mounting DIN rail | 35mm (EN60715) |
Degree of Protection | IP20 |
Housing | PBT/PA |
Flame retardant grade | UL94VO |
Operating temperature | -40℃~+70℃ |
Operating relative humidity | 5%-95% |
Working atmospheric pressure | 70kPa～106kPa |
