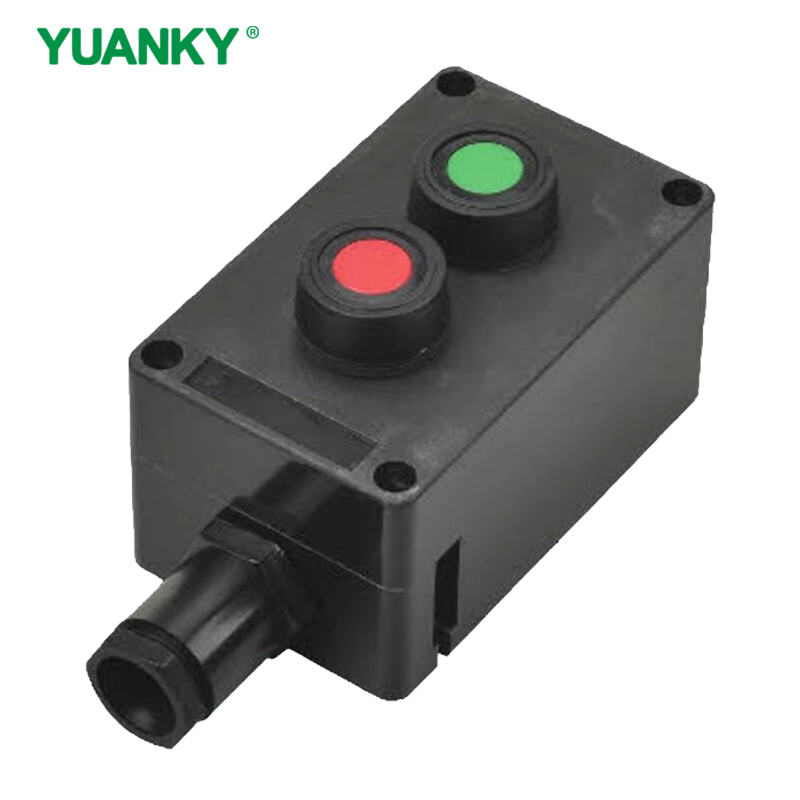

Explosion-proof anti-corrosion master controller
Scope of application
Suitable for dangerous places with explosive gas mixture: Zone 1 and zone 2;
Suitable for temperature group: T1 ~ T6;
Suitable for explosive gas mixture Ⅱ a, Ⅱ B and Ⅱ C;
Explosion proof signs: Exde Ⅱ BT6, Exde Ⅱ CT6
Suitable for combustible dust environment in zone 20, 21 and 22;
It is widely used in dangerous environment such as oil exploitation, oil refining and chemical industry, military industry, offshore oil platform, cruise ship and so on.
Product features
Increased safety type enclosure with explosion-proof components;
The shell is made of glass fiber reinforced unsaturated polyester resin, which has excellent performance of antistatic, impact resistance, corrosion resistance and thermal stability;
The flameproof control switch has compact structure, good reliability, small volume, strong on-off ability, long service life, and multiple functions for users to choose. The explosion-proof button adopts ultrasonic packaging technology to ensure reliable bonding strength. The function of the button can be combined by unit. The explosion-proof indicator light adopts special design, and the AC 220 V ~ 380 V is universal.
The joint surface of shell and cover adopts curved sealing structure, which has good waterproof and dustproof ability;
The exposed fasteners are designed with stainless steel anti dropping type, which is convenient for maintenance.
Technical parameter
Executive Standards: GB3836.1-2010, GB3836.2-2010, GB3836.3-2010, GB12476.1-2013, GB12476.5-2013 and IEC60079;
Explosion proof signs: exde Ⅱ BT6, exde Ⅱ CT6;
Rated current: 10A;
Rated voltage: AC220V / 380V;
Protection grade: IP65;
Anticorrosion grade: WF2;
Use category: AC-15 DC-13;
Inlet thread: G3 / 4 “;
Outer diameter of cable: 9mm ~ 14mm.
Selection table
Appearance | Scheme outline drawing | Built in components | Model |
| A control switch | HWF88-K1 |
A set of buttons | HWF88-A1 |
A set of buttons (mushroom head self-supporting) | HWF88-A1 |
Two sets of buttons (one mushroom head self-supporting type, one standard type) | HWF88-A2 |
A set of buttons, an indicator light | HWF88-A1D1 |
Two sets of buttons | HWF88-A2 |
One control switch (two pole switch) A 48 type ammeter (voltmeter) | HWF88-K1B1 |
One control switch (two pole switch) A 48 type ammeter (voltmeter) | HWF88-K1B1 |
Three sets of buttons (two standard , one mushroom head self-supporting) | HWF88-A3 |
Two sets of buttons, one signal light | HWF88-A2D1 |
