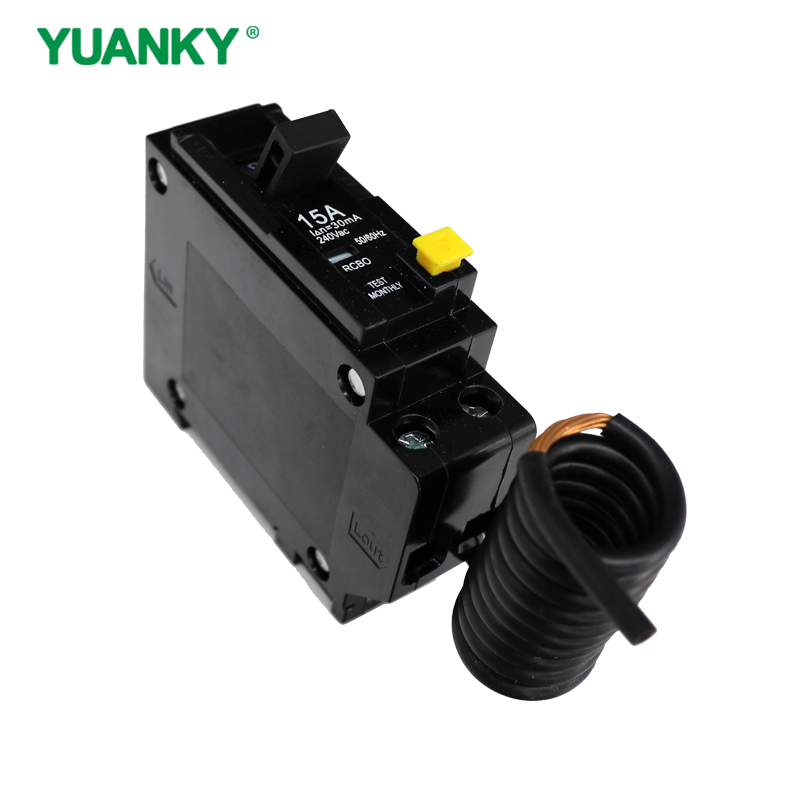

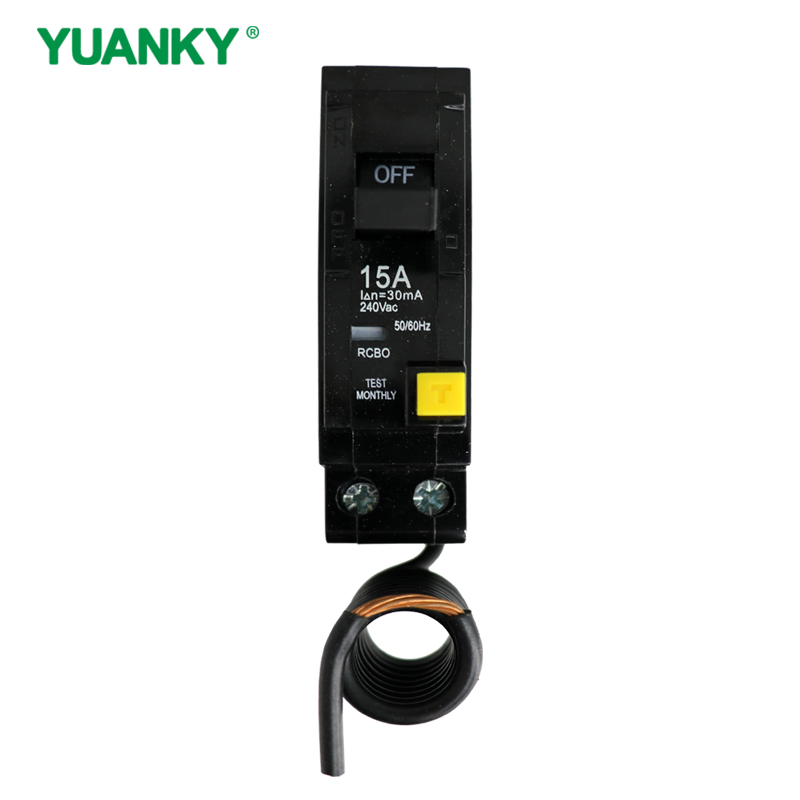

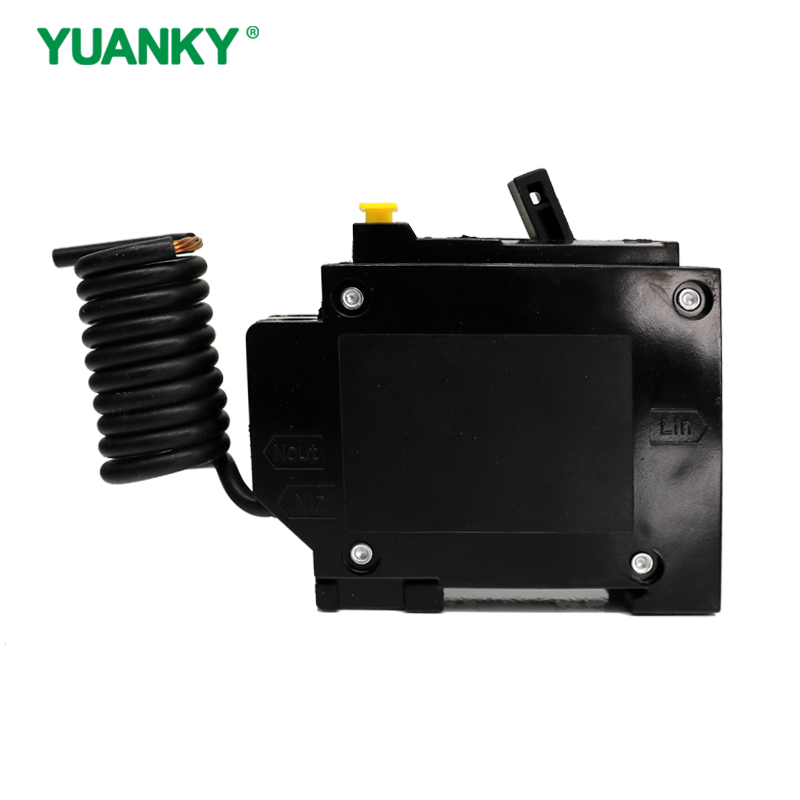

N7BY Residual Current Circuit Breaker With OverCurrent Protection (RCBO)

Technical Data & Standard

Rated currents (A) : 7500A,10000ARated voltage (VAC): 240/415vRated frequency(Hz):50/60HzTerminal size top for cable:25mm2Terminal size bottom for cable: 2mm2

Mounting: On DIN rail EN 60715(35mm)by means of fast slip deviceIEC/EN 61009-1
Availability:
  • N7BY

  • YUANKY

  • America


Product Drawing Size

图2

Wiring Diagram

图3

Characteristic Curve

图4



item value
BCD Curve C
Breaking Capacity 30ma
Rated Voltage 240VAC
Model Number
Brand Name YUANKY
Place of Origin China

Zhejiang
Application Industrial, Households
Mounting Type Rail Mounting
Protection Other
Rated Frequency (Hz) 50/60 Hz
Type AC MCB
Rated current 1/2/3/4/6/10/16/20/25/32/40/50/63A
Rated voltage 240VAC
Rated frequency 50/60 Hz
Number of poles 1/2/3/4P
Breaking capacity operating 30ma
Type Mini
Poles Number 1,2,3,4
