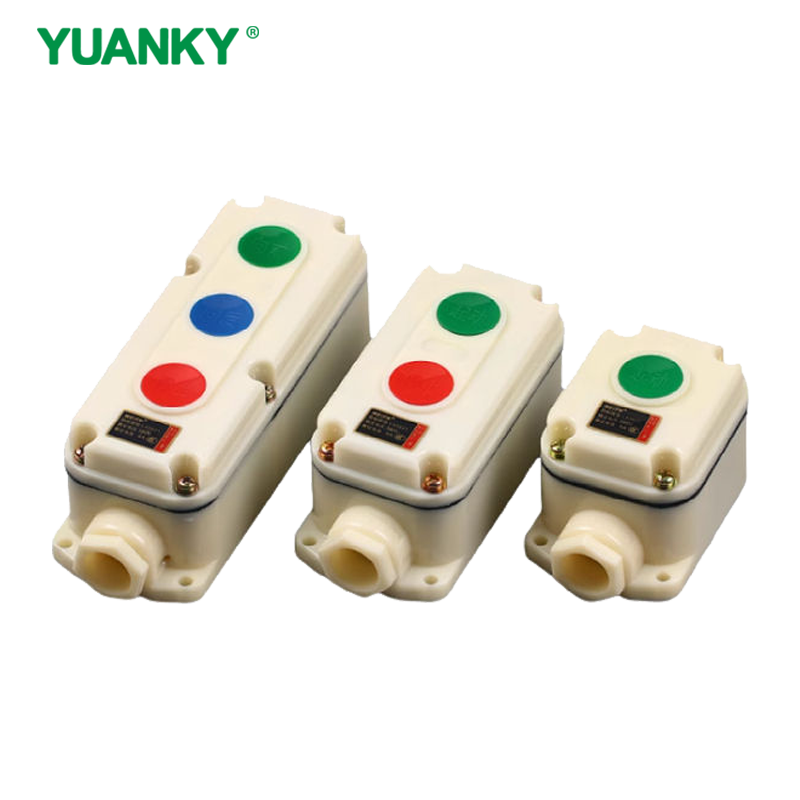

Explosion-proof control button
Scope of application
Zone 1 and zone 2 are suitable for explosive gas environment;
It is suitable for class ⅡA, ⅡB and ⅡC explosive gas environment;
It can be used in 20, 21 and 22 areas of combustible dust environment;
It is widely used in oil exploitation, oil refining, chemical industry, military industry and other dangerous environment, as well as offshore oil platforms, cruise ships and other places.
Technical parameter
Executive Standards: GB3836.1-2010, GB3836.2-2010, GB3836.3-2010, GB12476.1-2013, GB12476.5-2013 and IEC60079;
Explosion proof signs: Exde Ⅱ BT6, Exde Ⅱ CT6;
Rated voltage: AC380V / 220V;
Rated current: 10A;
Protection grade: IP65;
Anticorrosion grade: WF2;
Inlet specification: G3 / 4 “;
Outer diameter of cable: φ8mm-φ12mm.
Product features
The shell is made of flame retardant ABS injection molding, which has beautiful appearance, corrosion resistance, impact resistance and other excellent properties;
The whole structure is a composite structure, which is equipped with explosion-proof components;
The curved road sealing structure has strong waterproof and dustproof ability;
The flameproof control button has the advantages of compact structure, good reliability, small volume, strong on-off ability and long service life.
Outline and installation dimensions (mm)
