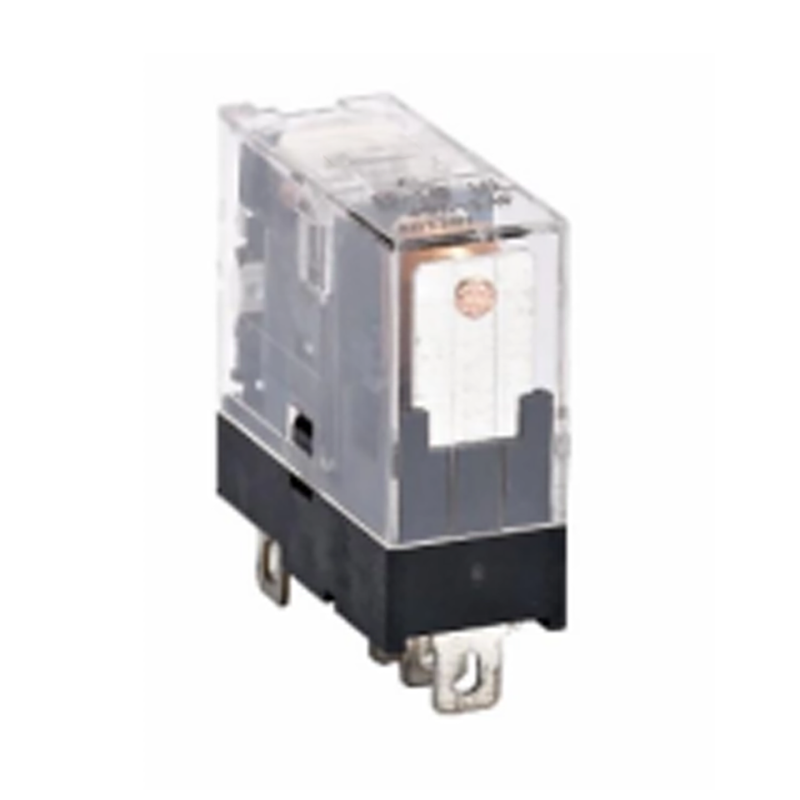

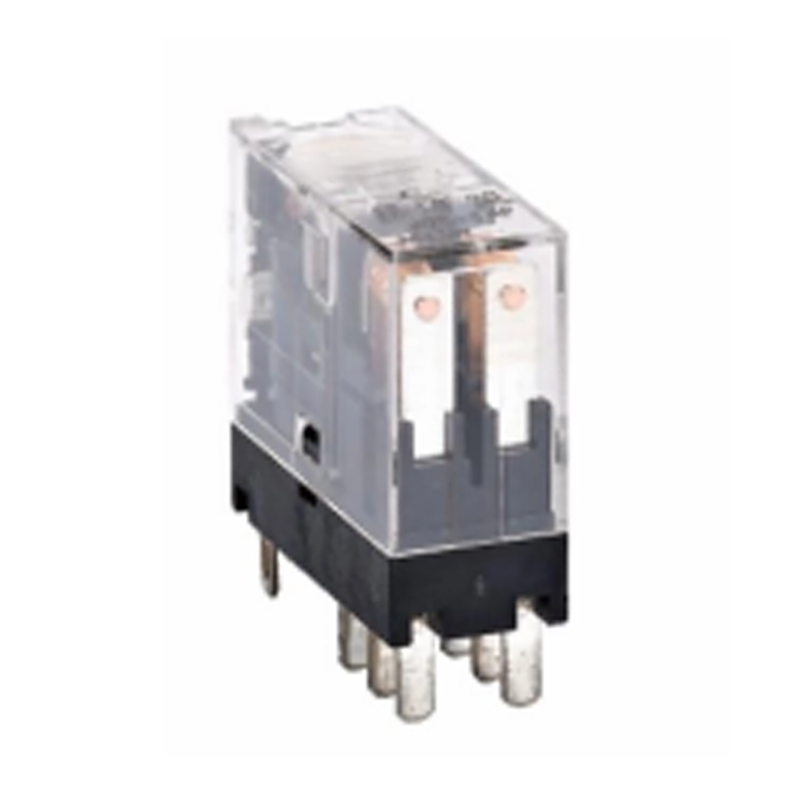

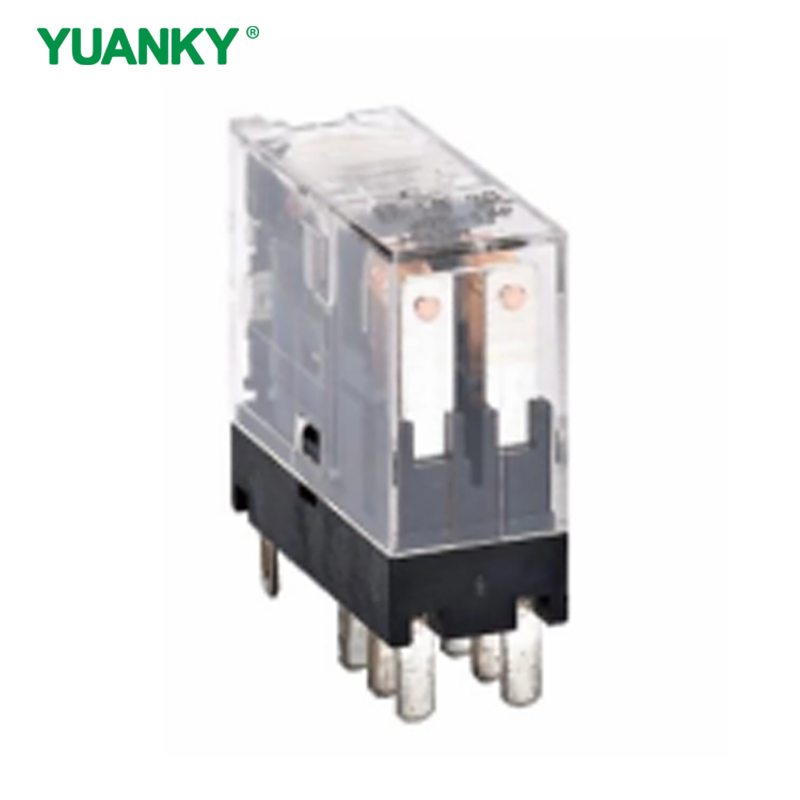

HW-14F1Z、HW-14F2Z Electromagnetic Relay

small size ,easy installation
contact with large load:1Z 12A
high sensitivity
plug in mounted

Availability:
Inquire Add to Basket

  • America

Type and meaning

s11

1、Enterprise Code: Haohui Electronics

2、Serial Number: 14F

3、Number of contact groups: one、two

4、H-nomally open contact Contact Form: Z-conversion type D-normally closed contact

5、mounted type: P:PCB mounted type No Letters: plug-in moudted

6、operating state:L:LED indicate No Letters:no indicate

7、auxiliary function :D/CRInhibitory protection

8、Coil Voltage:DCis for direct voltage AC is for alternating voltage

Product performance

Contact parameters Contact Form 1Z,1H,1D 2Z,2H,2D
load Hindrance 10A,16/250VAC,30VDC 5A,8/250VAC,30VDC
motor 1/3HP,240VAC;1/2HP,240AC 1/6HP,240VAC
Switching power 2500VA,300W;4000VA,480W          1250VA,150W;2000VA,240W
Contact Resistance ≤100mΩ
Contact Material Silver Alloy
Electrical life ≥10⁵
Mechanical life ≥10⁶
Pick -up Voltage
DC:≤75%,AC:≤80%
Drop-out Voltage
DC:≥10%,AC:≥30%
Max Voltage
110%
Insulation Resistance
≥1000M2(500VDC)
Coil voltage DC(W) 0.53
AC(VA) 1.0
Suction time
≤20ms
Release time
≤10ms
Initial withstand voltage Between the same pde omtacts 1200VAC/1min(Leakage current)
Between polar contacts 1500VAC/1min(Leakage current
Between contact and coil 2500VAC/1min(Leakage current)
Ambient temperature -25°℃+55℃
Ambient humidity 35%~85%RH
Atmospheric pressure 86~106KPa
Impact resistance 10G(Sine half wave pulse;11ms
Vibration resistance 10~55Hz Double amplitude:1.0mm
mounted type plug-in moudted
weight around 20c

External dimensions (mm)

s12


Wiring diagram

s13



electromagnetic relay Miniature Power Relay Magnetic Latching Relay
