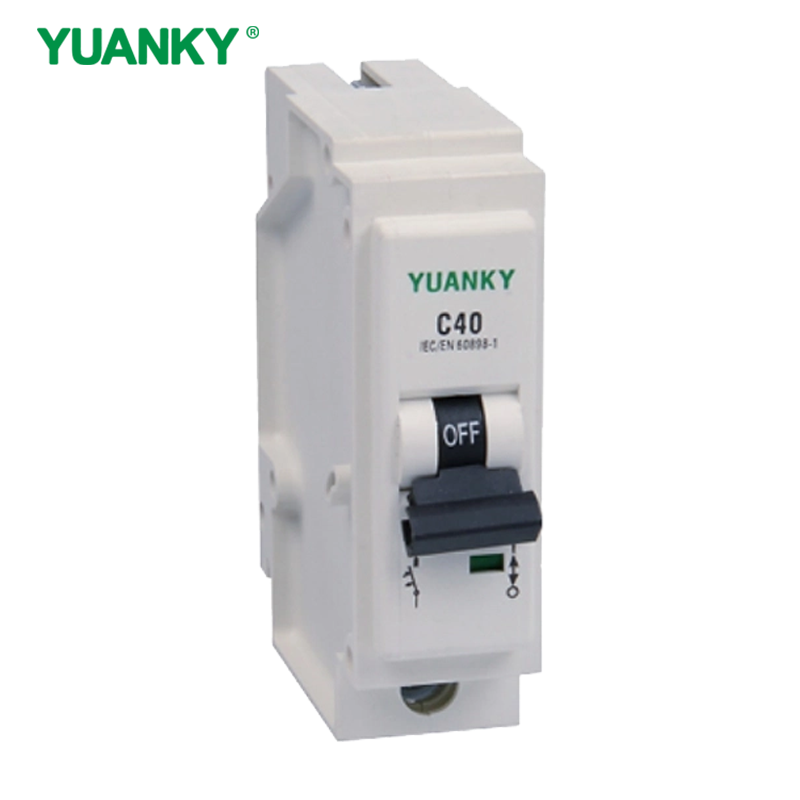

S7 25mm Plug in Type Circuit Breaker

Electrical Specification

Rated Voltage		230V/400V;50/60Hz
Rated breaking capacity		10kA IEC898 (0.5~63A)
Short circuit breaking capa of DC		Max 48V(S7..,10kA)Multipole
		Max 250V(S7…6kA)Multipole
Trip characteristic		C,D Type Characteristic curve
Max fuse than can be connected to		100A gL(>10kA)
Selection grade		3
Work environment temperature		-5 to +40℃
Case protection grade		IP40(Install after)
BH-M6		40℃
Life	Electric	Not less of 8000 times switching operation
	Mechanical	Not less of 20000 times switching operation

Electrical Specification

The length of exposed plane	45mm
Enclosure height	80mm
Enclosure width	17.5mm every pole (mountly manner)
Mountly manner	The standard IEC 35mm rail
Terminal manner	Dual purpose terminal can connect generatrix and wire
Terminal block capacity	Conductor1-25mm;Generatrix thickness 0.8-2mm

Technology Specification

Conforming of latest standard of lEC and GB10963-99Accurate current tripping and setting

High breaking capability up to 10kA

High current limitation capability to realize the high selection

Dual-terminal at two sides is suitable for the busway and single-core conductorMultiple-function accessories series

Wiring screw of combined channel with large torque and solid wiring and rapid wiringFree incoming-line direction of power supply

DC product could be used at the fields such as communication or electric vehicle and so on

Type	S7-0.5/3/C,S7-1/3/C,S7-2/3/C S7-3/3/C,S7-4/3/C,S7-6/3/C S7-10/3/C,S7-16/3/C,S7-20/3/C S7-25/3/C,S7-32/3/C,S7-40/3/C S7-50/3/C,S7-63/3/C	S7-2/3/D,S7-4/3/D,S7-6/3/D S7-10/3/D,S7-16/3/D,S7-20/3/D S7-25/3/D,S7-32/3/D,57-40/3/D
	S7-6/1N-2/C,S7-10/3N-2/C 57-20/3N-2/C,57-25/3N-2/C S7-32/3N-2/C,S7-40/3N-2/C S7-50/3N-2/C,S7-63/3N-2/C
	S7-1/4/C,S7-3/4/C,S7-6/4/C S7-10/4/C,S7-16/4/C,S7-20/4/C S7-25/4/C,57-32/4/C,57-40/4/C S7-50/4/C,S7-63/4/C	S7-2/3N/D,S7-4/3N/D,S7-6/3N/D S7-10/3N/D,S7-16/3N/D,S7-20/3N/D 57-25/3N/D,57-32/3N/D,S7-40/3N/D
Rated current In(A)	0.5,1,2,3,4,6,10,16,20,25, 32,40,50,63	2,4,6,10,16,20,25,32,40
