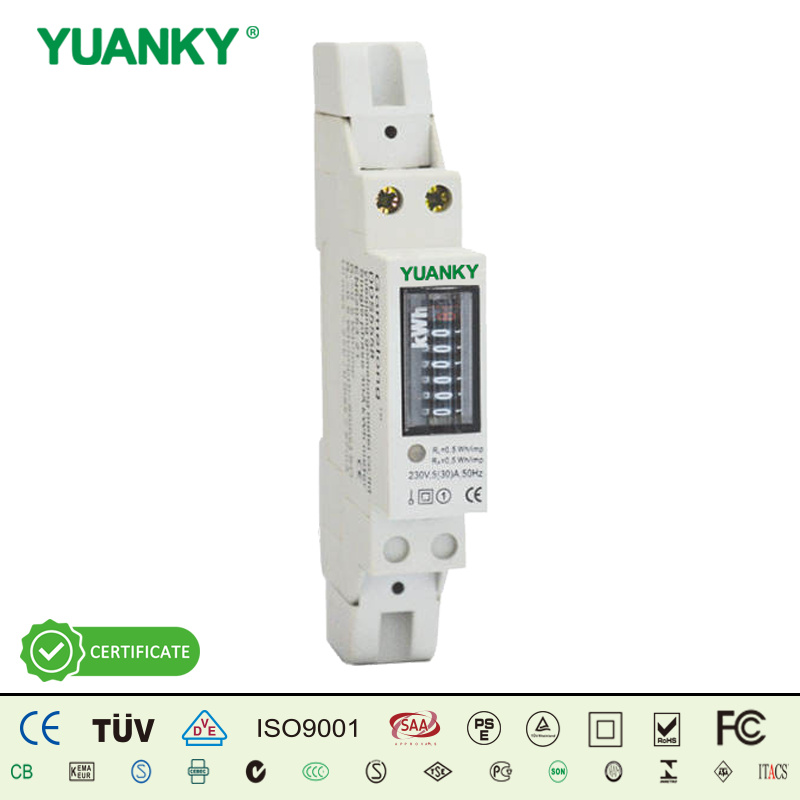

Single Phase Electronic Din-rail Active Energy Meter DDS5558

Model DDS5558 single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc.
Availability:
  • Yuanky

  • America



Specification
DDS5558L
DDS5558R
Accuracy
Active
                                                      Class1.0
Reactive
                                                            /
Voltage
Rated
                                         110/120/220/230/240V
Range
                                                  0.9Un~1.1Un
Limit
                                                  0.8Un~1.2Un
Frequency
                                                      50/60Hz
Current
Range
                                      5(20)A ,5(25)A ,5(30)A,5(32)A
Starting Current
                                                       0.4%lb
Constant
Active
                                     1600 imp/kWh ,2000imp/kWh
Reactive
                                                            /
Display
Type
                          LCD
                           Register
Digit
                                                        6+1

Power

Consumption

Voltage Circuit
                                                 ≤0.8W,10VA
Current Circuit
                                                       ≤4VA
Communication
Interface
                                Optical/Infrared/RS485 (Optional)
Protocol
                                       MODBUS,DLT/645,IEC1107
Temperature
Working Temperature
                                                   -45°C~+55°℃
Storage Temperature
                                                   -40°C~+70°C
Humidity
                                                        <90%
Protection
                                                         IP54
