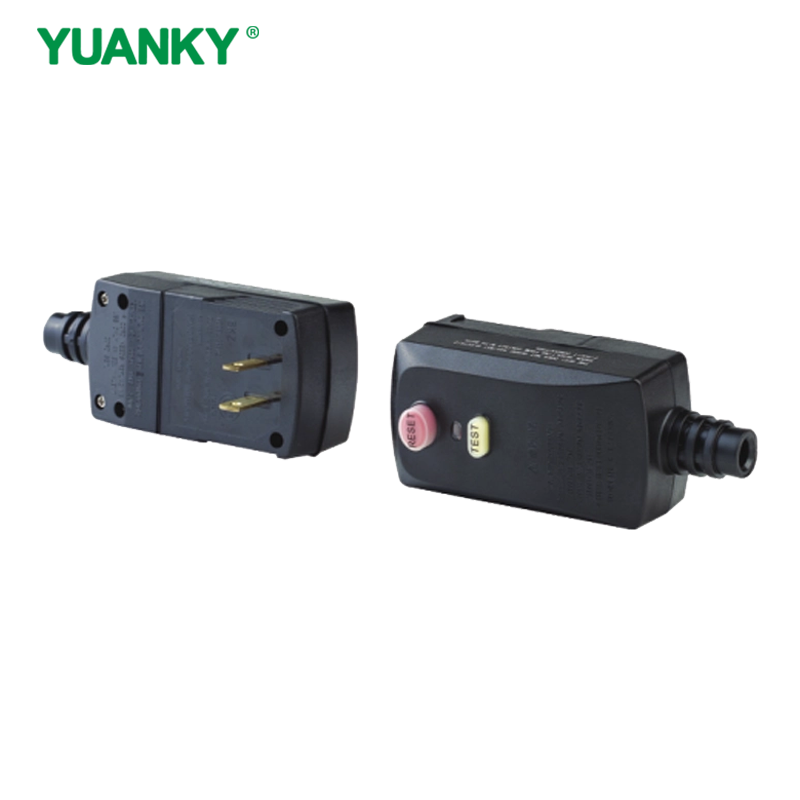

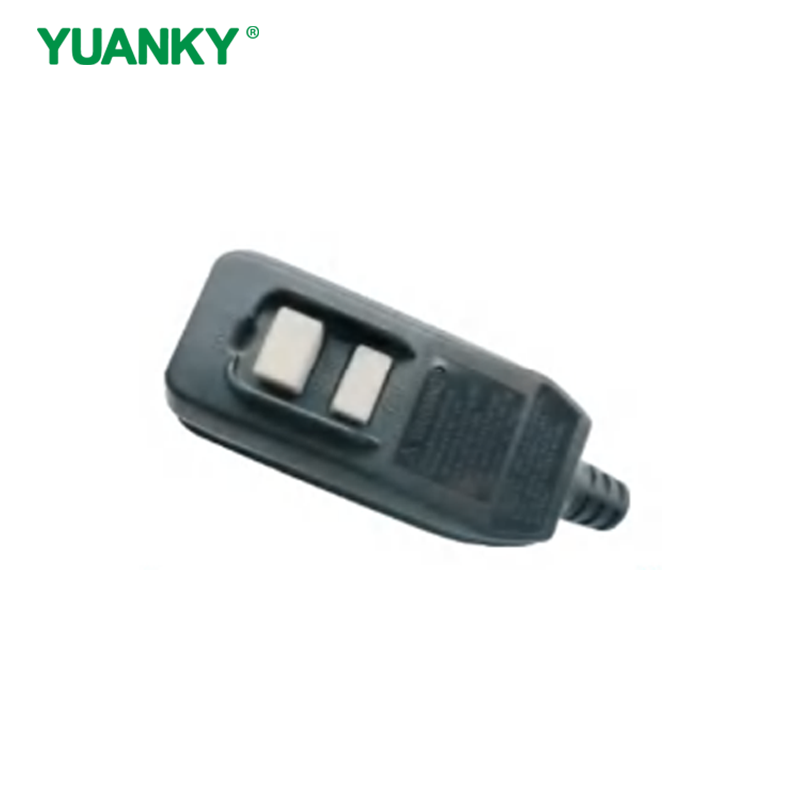

SP502 Ground-Fault Circuit-Interrupters

Availability:
Inquire Add to Basket

  • America

Specification

Rated Voltage: 120VAC

Rated Current: 15A max

Frequency: 60Hz

Tripping current: 4-6mA

Tripping speed: 25mS max

Voltage Surge: 6K (100KHz Ring Wave)

Endurance: 30oo Cycles min(With 15A Load)

Hit-Pot: 1.25KV for 1 minute

Approval: ETL

lnput Type: NEMA 1-15 Plug(2P)

Output Type and Power Cord:Wire Terminal with #14AWG,#16AWG,#18AWG sJTw

Waterproof rating: UL50 3R

h4h5
