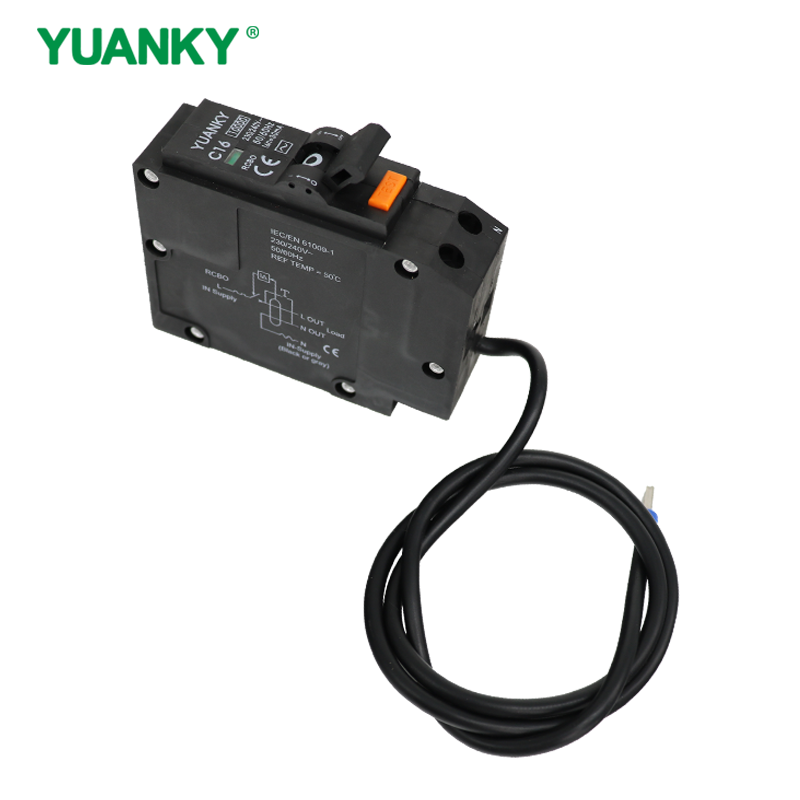

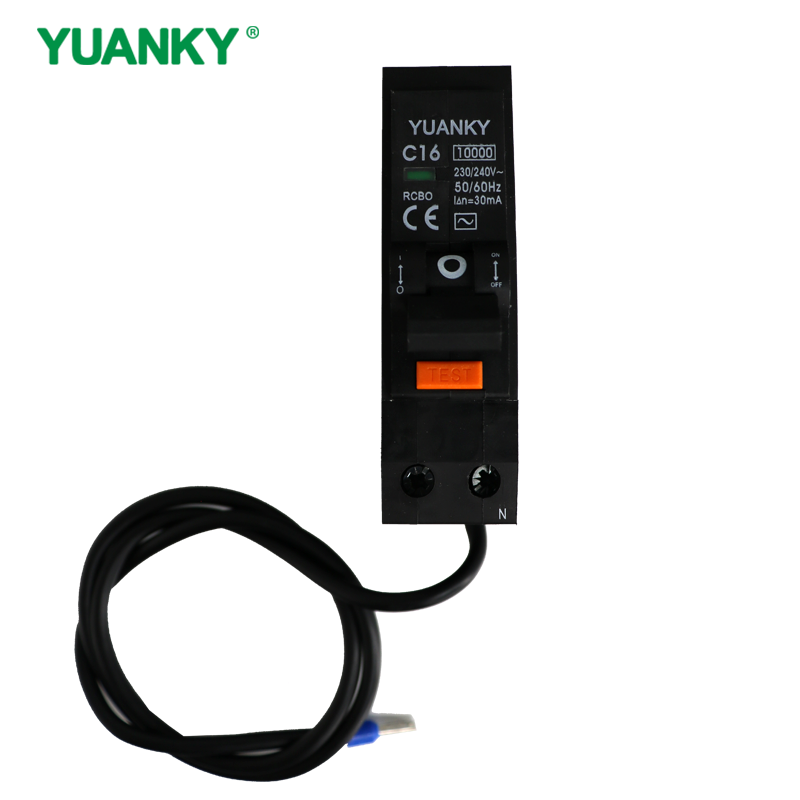

N7BR Residual Current Circuit Breaker With OverCurrent Protection (RCBO)

Technical Data & Standard

Rated currents (A) : 6A,10A,16A,20A,25A,32A,40ARated voltage (VAC): 110/220,120/240

Rated frequency (Hz): 50/60Hz

Curve type: A/AC

Terminal size top for cable:16mm2Terminal size bottom for cable: 16mm2Mounting: Plug-in type

IEC/EN 61009-1
Availability:
  • N7BR

  • YUANKY

  • America

Product Drawing Size

图12

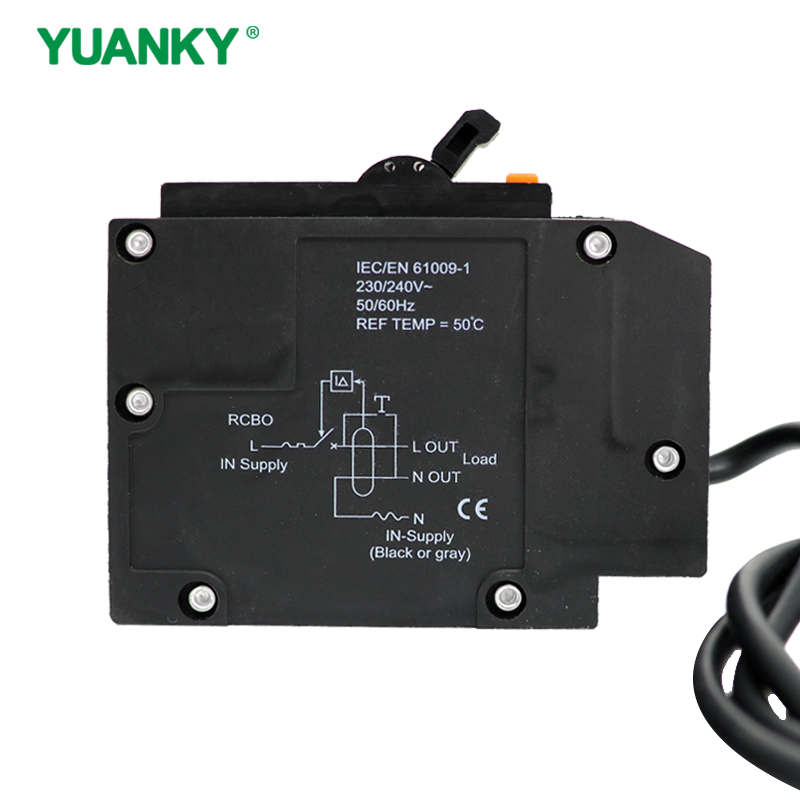

Wiring Diagram

图13

Characteristic Curve

图14




item value
BCD Curve C
Breaking Capacity 30ma
Rated Voltage 230v 240v
Model Number C16
Brand Name YUANKY
Place of Origin China

Zhejiang
Application Industrial, Households
Mounting Type Rail Mounting
Protection Other
Rated Frequency (Hz) 50/60 Hz
Type AC MCB
Rated current 1/2/3/4/6/10/16/20/25/32/40/50/63A
Rated voltage 230-240v
Rated frequency 50/60 Hz
Number of poles 1/2/3/4P
Breaking capacity operating 30ma
Type Mini
Poles Number 1,2,3,4
