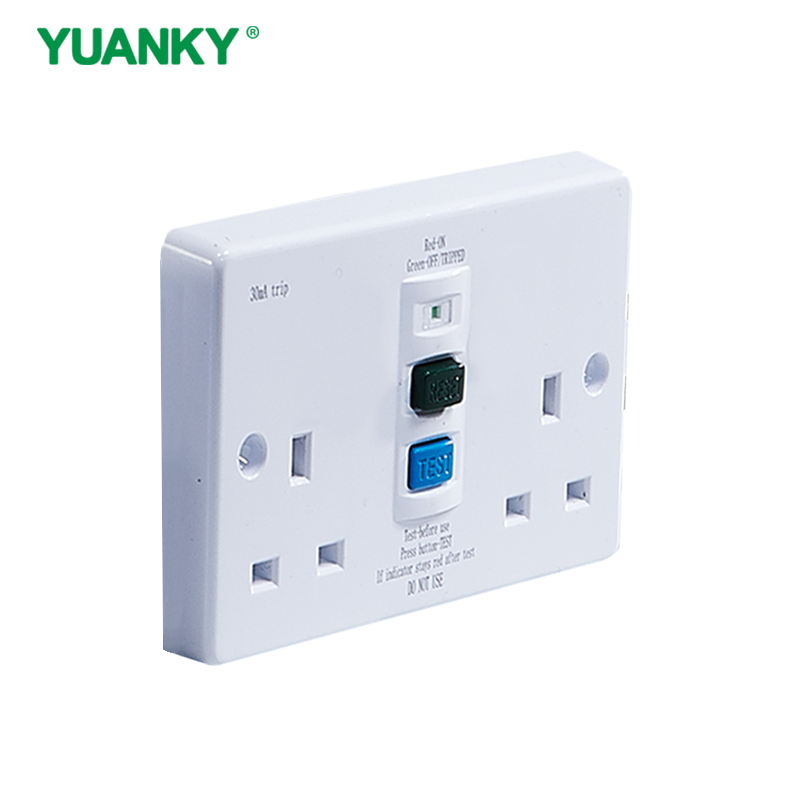

Wholesale Single Rcd Power Switch Socket For Wall Sockets And Switches


  • America


  • An easily fitted socket incorporating a Residual Current Device, give much greater safety in the use of electrical appliances against a risk of electrocution.

  • 0230SPW plastic and UK type can be fitted to a standard box with mininum depth of 25th

  • Press green reset (R) button and window indicators turns red

  • Press blue test (T) button and window indicator turns black means the RCD has tripped successfully

  • Designed and munufactured in accordance with BS7288, and used with BS1363 plugs fitted with a BS1362 fuse only.

Types Single Socket; With/No switched
Material Plastic
Rated Voltage 240VAC
Rated Current 13A maxc
Frequency 50Hz
Tripping Current 10mA & 30mA
Tripping speed 40mS max
RCD contact breaker Double pole
Voltage Surge 4K (100kHz Ring Wave)
Endurance 3000 cycles min
Hit-pot 2000V/1min
Approval CE BS7288; BS1363
Cable capacity 3×2.5mm²
IP Rating IP4X
Dimension 86*86mm
Application Equipment, Household appliances etc.
