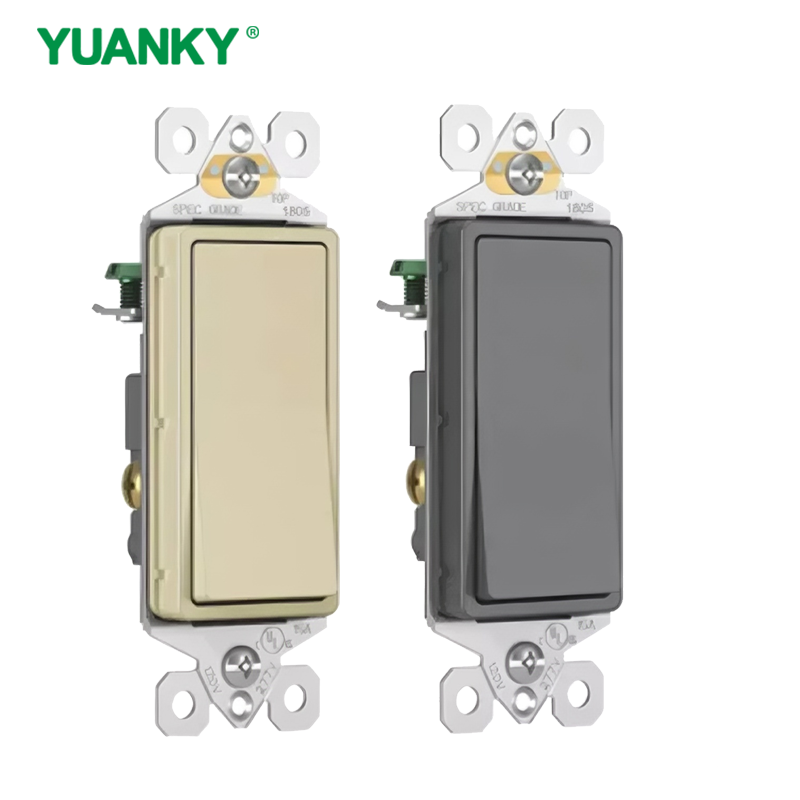

Yuanky Decorator Switches 15A 120V Self Grounding Single Pole Push In Wire 3 Ways Toggle Wall Switch



Features and Benefit

Color: White/Ivory/Almond/Black/Grey/Brown

Operating Temperature: Maximum continuous +60℃, minimum -40° C without impact

Flammability: UL94 V2

Product Size: 106×36.2×31.2mm

Certification: UL/CUL

Rating: 15A, 120V/277V

Grounding: Self-Grounding With auto Ground Clip

Grade: Residential & Commercial Grade

Finish: Glossy

Plate: Standard Plate/Screwless Plate



Availability:
  • America

●High-impact resistant thermoplastic construction;

●Narrow back body leaves more room for wires in the box;

●Designer-style satin-finish rocker;

●Easy-access green hex head ground screw;

●Excellent performance with quiet paddle action;

●Accepts #12 and #14 AWG(Push-In wire #14 AWG only) ;

●Tri-drive ground, terminal and mounting screws;

●Auto ground copper clip assures positive ground.

●Standard plate/Screwless wallplate optional.



Following colors available

*custom colors are acceptable






Dimensions



Decorator Switch

Single Pole/3-ways

Height    106.0±0.5mm

Width     36.2±0.5mm

Depth     31.2±0.5mm

*Metal Bracket Thickness:1.2mm



Toggle Switch

Single Pole

Height    106.0±0.5mm

Width     22.6±0.5mm

Depth     22.4±0.5mm

*Metal Bracket Thickness:1.2mm



Decorator Switch

3-ways

Height    106.0±0.5mm

Width     31.7±0.5mm

Depth     22.4±0.5mm

*Metal Bracket Thickness:1.2mm

Types of Switches

Decorative/Toggle Switches


Model

Description

Rating(A  V)

Wiring Type

Function

DS15

15A 120/277V AC

Decorative Switch

15A

120/277V

Side Wire/

Push in Wire

Self-

Grounding

DS15.3

15A 120/277V AC

Decorative Switch

3-ways

15A

120/277V

Side Wire/

Push in Wire

Self-

Grounding



T15

15A 120V AC

Single Pole Toggle

Switch

15A

120V

Side Wire/

Push in

Quick Wire

Self-

Grounding



T15.3

15A 120V AC

3-ways Toggle

Switch

15A

120V

Side Wire/

Push in

Quick Wire

Self-

Grounding
