HWS‑xxD1 (DN15‑DN25)
YUANKY
America, Europe, Britain, Australia, Southeast Asia, Philippines, I, Africa, French, Arabic, German
Product Features

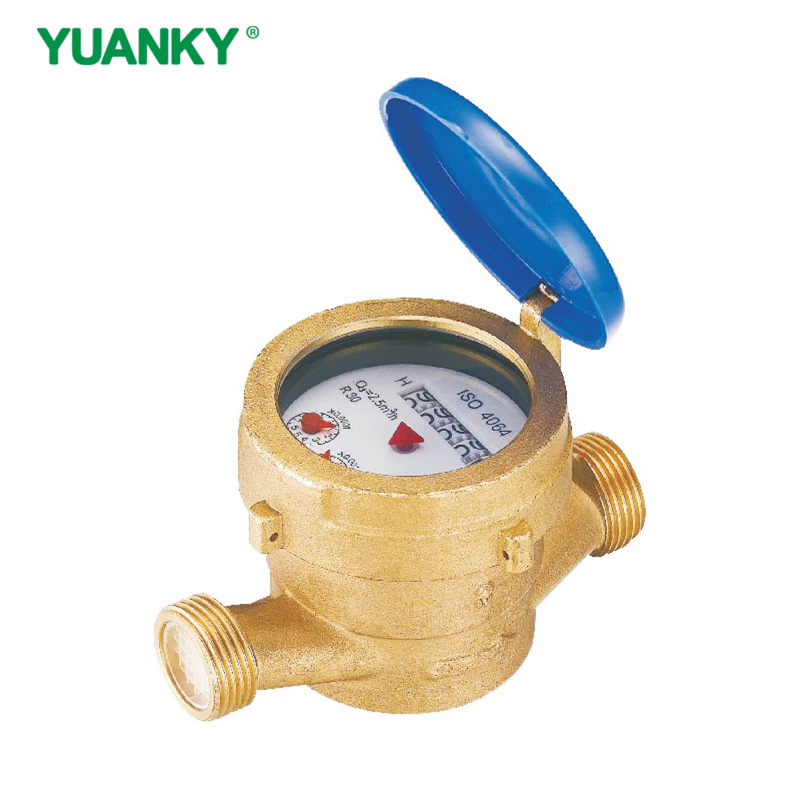

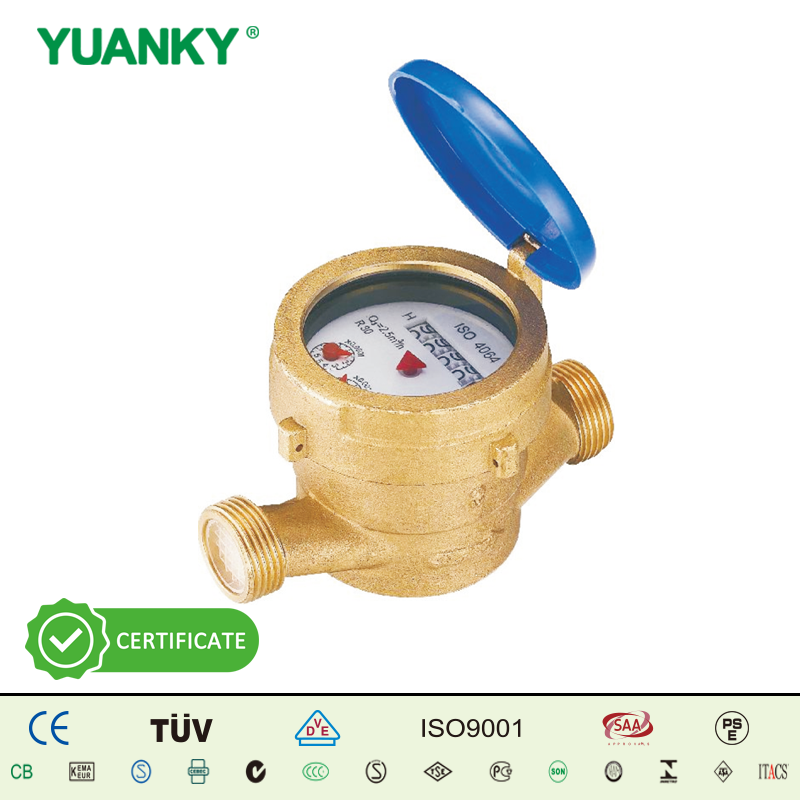

YUANKY single jet wet type water meter features small and light structure with wet‑dial register, its brass body can be painted or nickel coated, it is suitable for cold water or hot water with high‑accuracy performance, the meters conform to ISO4064 Standard Class B, working water temperature ≤30℃ for cold water, working pressure ≤1.6MPa(16bar) and ΔP≤0.1MPa, it reaches accuracy of ±5% from minimum flow‑rate to transitional flow‑rate, and ±2% from transitional flow‑rate to overload flow‑rate.
Technical parameters
| Nominal Size DN(mm) | Class of Measurement | Overload Flow‑rate qs(m³/h) | Permanent Flow‑rate qp(m³/h) | Transitional Flow‑rate qt(l/h) | Minimum Flow‑rate qmin(l/h) |
|---|---|---|---|---|---|
| 15 | B | 3 | 1.5 | 120 | 30 |
| 20 | B | 5 | 2.5 | 200 | 50 |
| 25 | B | 7 | 3.5 | 280 | 70 |
