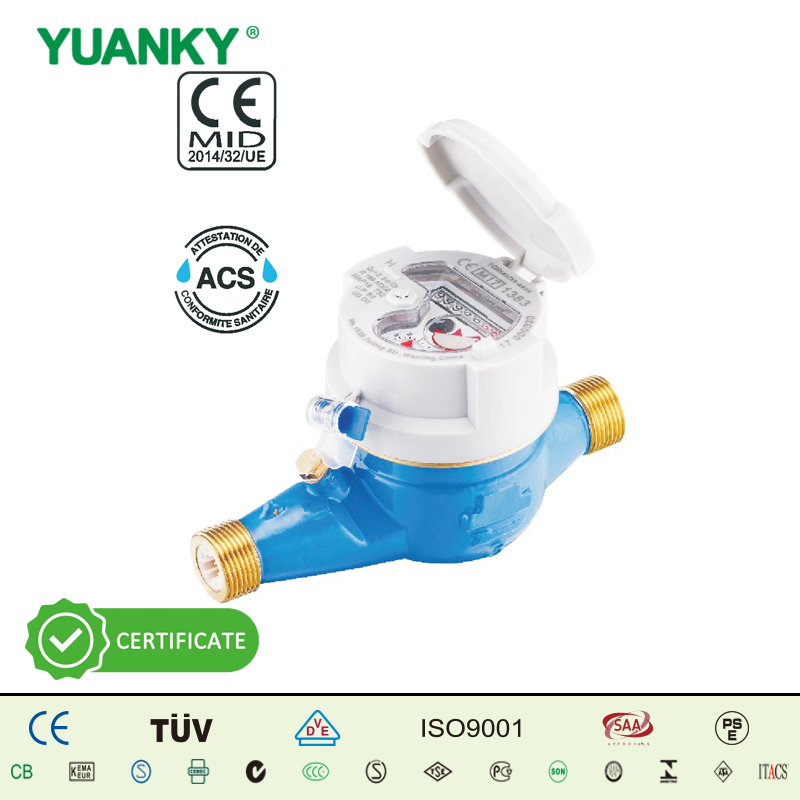

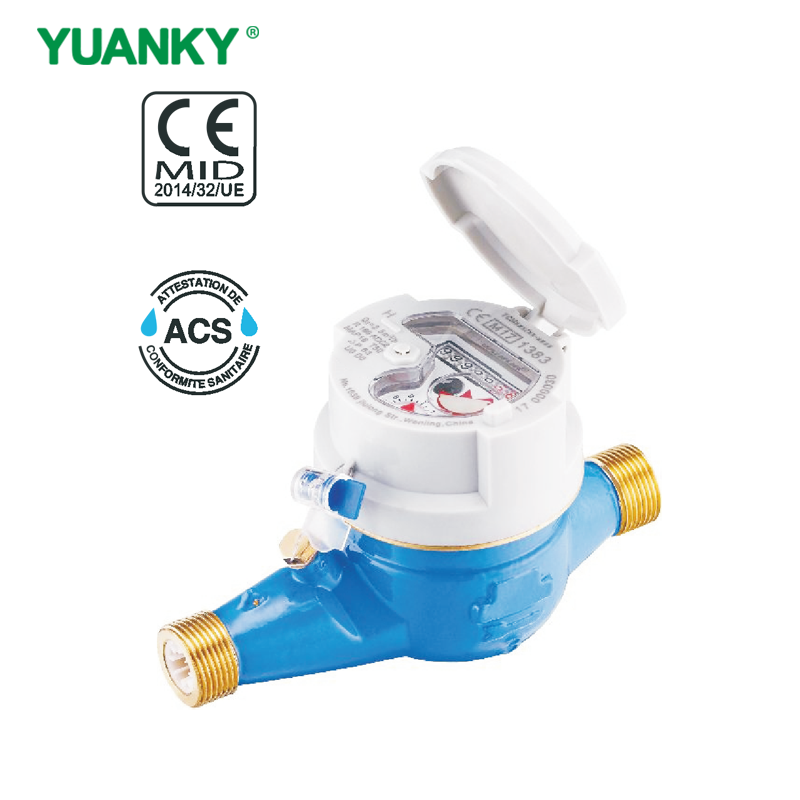

HWSG‑xxE5/RLN1 (DN15‑DN40)
YUANKY
America, Europe, Britain, Australia, Southeast Asia, Philippines, I, Africa, French, Arabic, German
Product Features

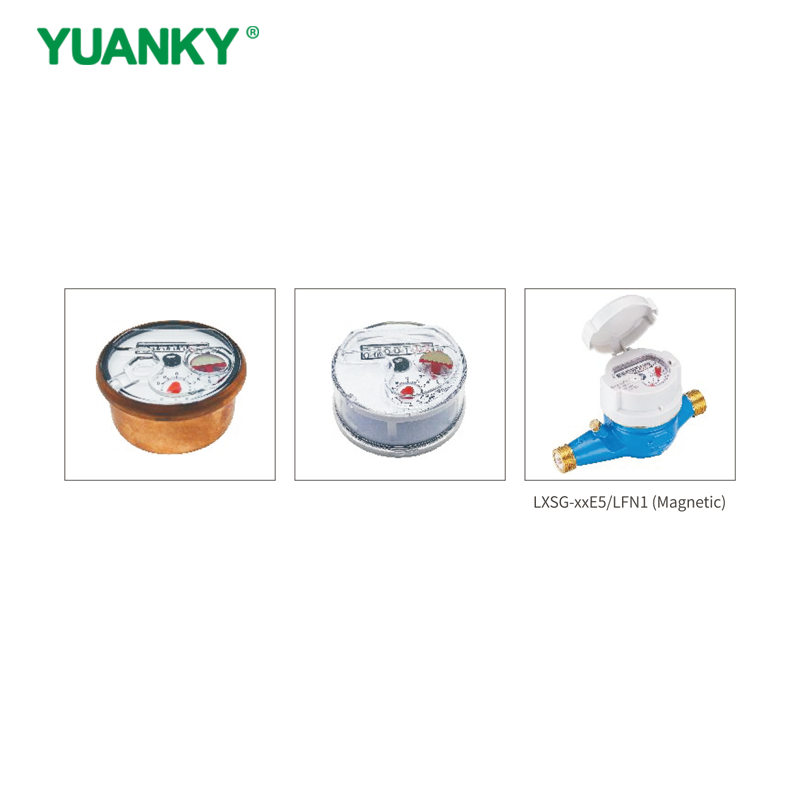

YUANKY multi jet dry type water meter comes with durable brass body, dry register ensures clean and clear reading over long‑term operation, magnetic drive structure is equipped with anti‑magnetic protection, external regulating device is available for adjustment, various length and connection options can be supplied upon request, non‑return valve is optional, pulse output supports 1L/Pulse and 10L/Pulse, copper can register and plastic can register are both selectable, this meter works for cold water ≤30℃ and hot water up to 90℃ with rated working pressure ≤1.6MPa(16bar), maximum permissible error is ±5% in lower zone and ±2% in upper zone.
Technical parameters
| (DN)[mm] | 15 | 20 | 25 | 32 | 40 |
|---|---|---|---|---|---|
| Size (inch) | 1/2" | 3/4" | 1" | 1‑1/4" | 1‑1/2" |
| (Q4) [m³/h] | 3.125 | 5 | 7.875 | 12.5 | 20 |
| (Q3) [m³/h] | 2.5 | 4 | 6.3 | 10 | 16 |
| R80 (Q2) [l/h] | 50 | 80 | 126 | 200 | 320 |
| R80 (Q1) [l/h] | 31.25 | 50 | 78.75 | 125 | 200 |
| R100 (Q2) [l/h] | 40 | 64 | 100.8 | 160 | 256 |
| R100 (Q1) [l/h] | 25 | 40 | 63 | 100 | 160 |
| R125 (Q2) [l/h] | 32 | 51.2 | 80.64 | 128 | 204.8 |
| R125 (Q1) [l/h] | 20 | 32 | 50.4 | 80 | 128 |
| R160 (Q2) [l/h] | 25 | 40 | 63 | 100 | 160 |
| R160 (Q1) [l/h] | 15.62 | 25 | 39.37 | 62.5 | 100 |
| Indicating range[m³] | 99 999 | 99 999 | 99 999 | 99 999 | 99 999 |
| Resolution of the indicating device[m³] | 0.00005 or 0.00002 | 0.00005 or 0.00002 | 0.00005 or 0.00002 | 0.00005 or 0.00002 | 0.00005 or 0.00002 |
| Temperature class | T30 and T50 | T30 and T50 | T30 and T50 | T30 and T50 | T30 and T50 |
| Water pressure classes | MAP 16 | MAP 16 | MAP 16 | MAP 16 | MAP 16 |
| Pressure‑loss classes | △P63 | △P63 | △P63 | △P63 | △P63 |
