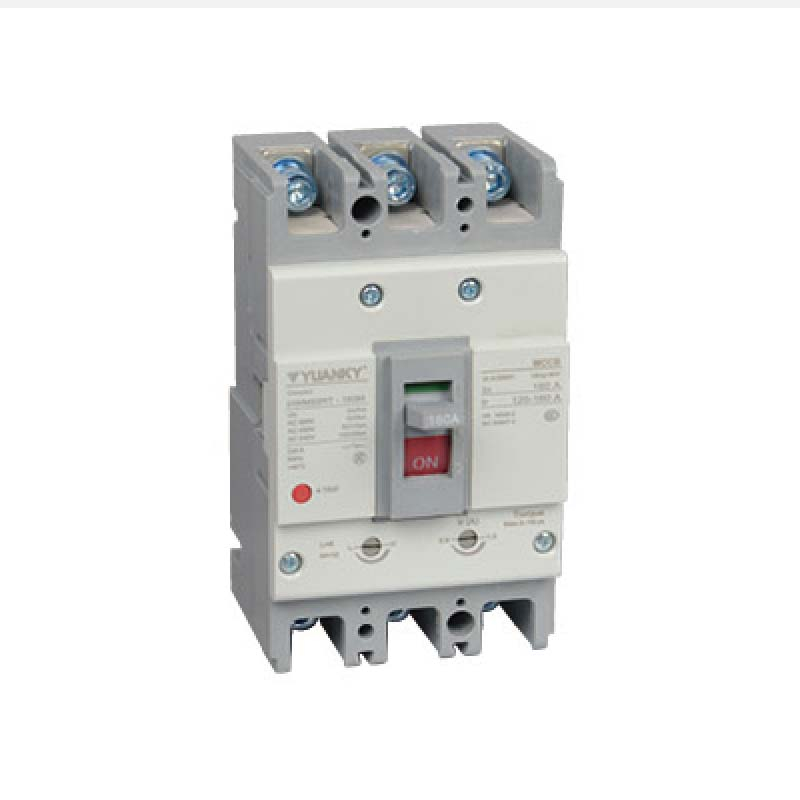

High Quality 800A Double Adjustable Moulded Case Circuit Breakers Durable MCCB Electrical Mcb Supply for Home & Office Use

This breaker's rated insulation voltage is 69ov, is applied to distribution network circuit of Ao 50Hz or 60 Hz, rated working voltage up to 690V, rated working current up to 800A, which is for electricenergy distribution, circuit protection, protecting power supply facility from destroying by the fault of overloading, short circuit and undervoltage. Meanwhile, it is also used for protection from unfrequent starting, overloading, short circuit and undervoltage of the electromotor.

This breaker has such characteristics of compact volume. high short circuit interrupting capacity. short flash arcing and etc, which is a ideal product for users.

This breaker can be installed vertically (upright), and also horizontally.

This breaker comply with standard IEC60947-2, GB 14048.2.

Altitude less than 2000m;

Ambient medium temperature is from-5℃ to +40℃ (+45℃ for shipping product).

Can withstand moist air Max incination is 22.5°

Can withstand mold

Can withstand nuclear radiation

It can still work reliably if the product subjects to the normal vibration from ships

It can still work reliably if the product subjects to the earthquake(4g)

Put in the place where is no explosion danger and conductive dust.cant corrode metel and destroy the insulating gas

Put in the place where is no sleet.

item	value
Breaking Capacity	15KA
Rated Voltage	690V
Place of Origin	China
	Zhejiang
Brand Name	YUANKY
Model Number	HWM32RT
Material	plastic
Trip Unit Technology	Electronic
Rated Frequency (Hz)	50Hz
Product name	Mccb Moulded Case Circuit Breaker
Material	Flame Resistant
