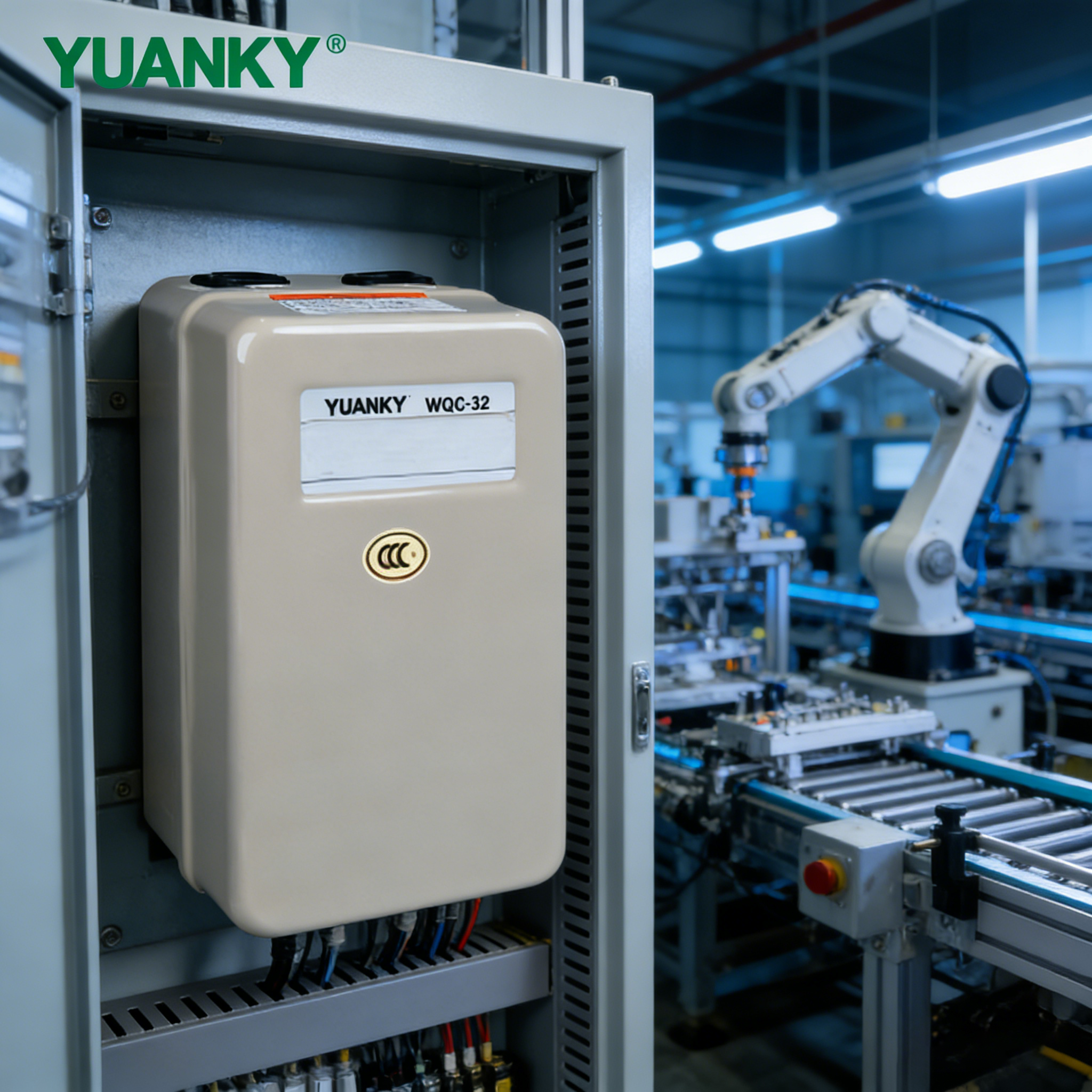

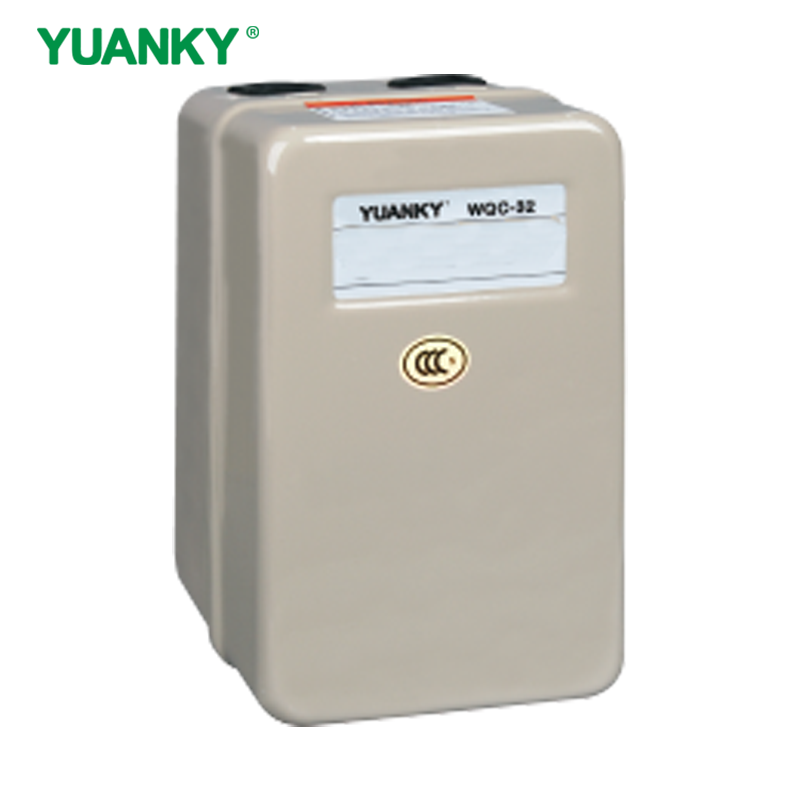

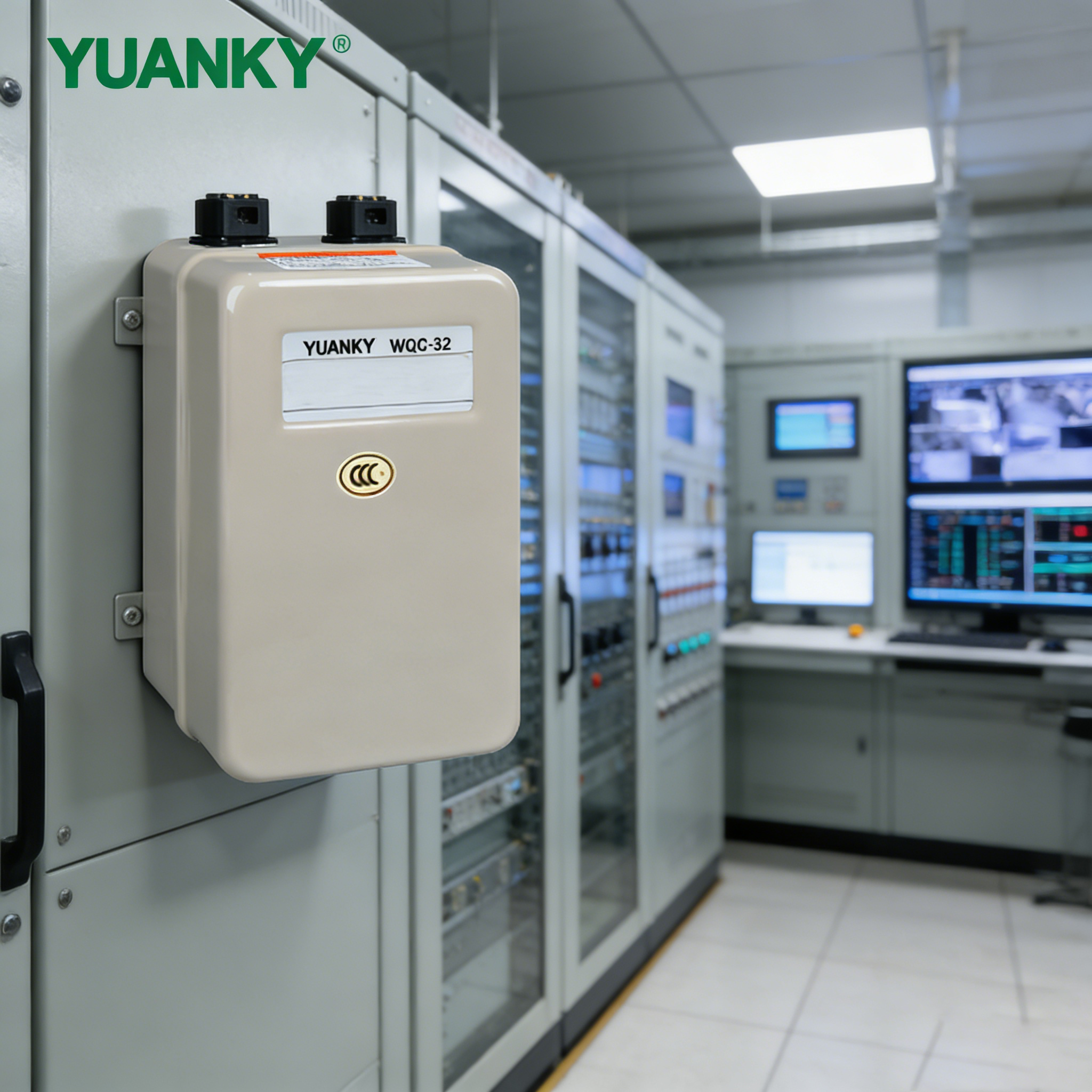

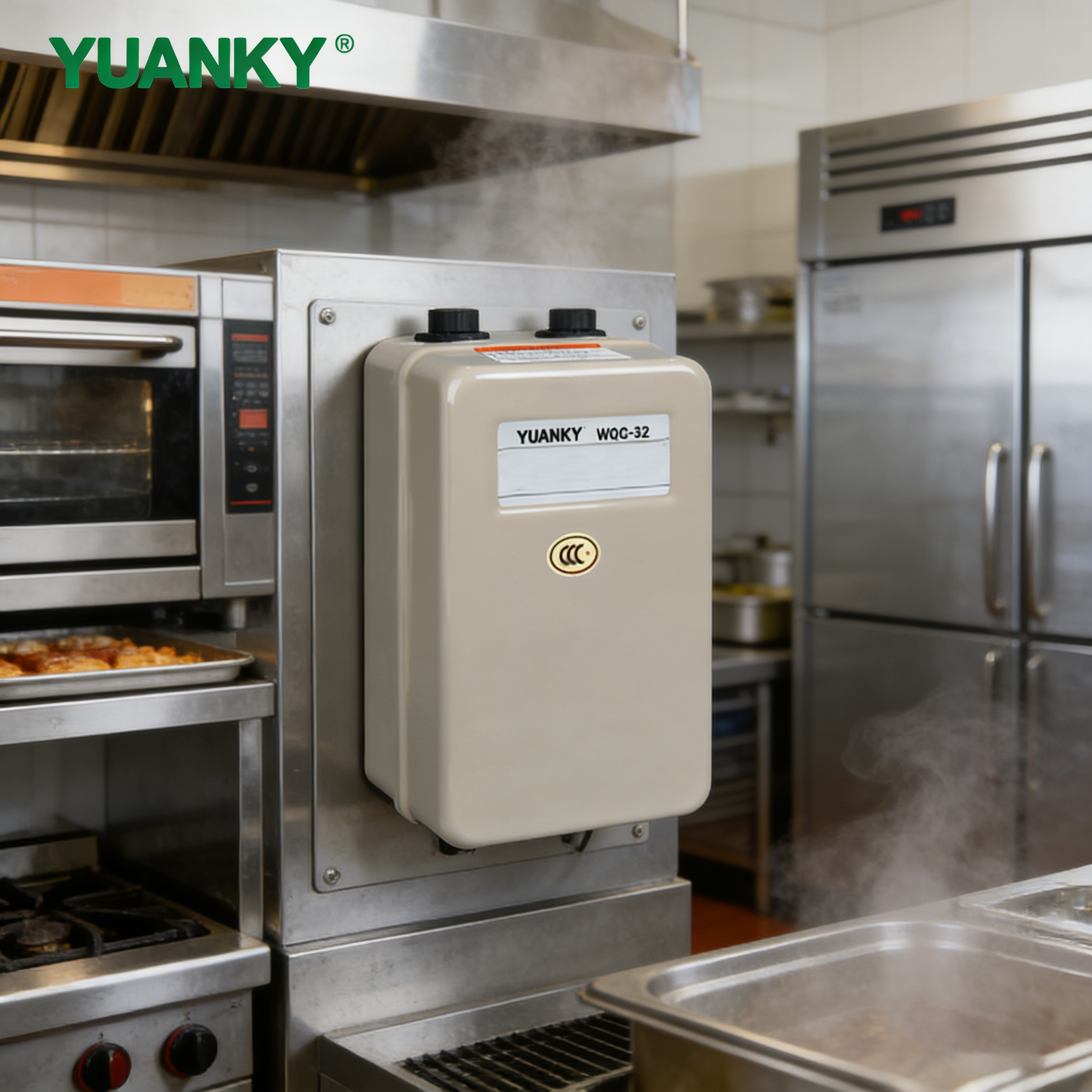

WQC、QCX5(MS-K)
YUANKY
America
Air Compressor Special Technoloty Parameter And Modes (WQC)
Type | Power | Voltage | Rated current | Thermal relay part adjusted scope |
WQC-12 | 0.75KW | 380V | 2.1A | 1.7-2.5A |
WQC-12 | 1.1KW | 380V | 2.5A | 2-3A |
WQC-12 | 1.5KW | 380V | 3.6A | 2.8-4.4A |
WQC-12 | 2.2KW | 380V | 5A | 4-6A |
WQC-12 | 3KW | 380V | 6.6A | 5.2-8A |
WQC-32 | 4KW | 380V | 9A | 7-11A |
WQC-32 | 5.5KW | 380V | 11A | 9-13A |
WQC-32 | 7.5KW | 380V | 15A | 12-18A |
WQC-32 | 11KW | 380V | 22A | 20-32A |
WQC-50 | 15KW | 380V | 30A | 28-45A |
WQC-50 | 18.5KW | 380V | 37A | 40-63A |
WQC-65 | 18.5KW | 380V | 37A | 40-63A |
WQC-85 | 22KW | 380V | 44A | 40-63A |
WQC-95 | 30KW | 380V | 60A | 53-85A |
Type | Contactor | Standard thermal relay | Control motor power (KW) | Rated current (A) | ||||
Type | Setted current | 220V | 380V | 500V | 220V | 380V | ||
QCX5-9 | CJX5-9 | JRS-5-12/Z | 3.6A | 0.75 | 1.5 | 2.2 | 11 | 9 |
QCX5-9 | CJX5-9 | JRS-5-12/Z | 5A | 1.1 | 2.2 | 3 | 11 | 9 |
QCX5-9 | CJX5-9 | JRS-5-12/Z | 6.6A | 1.5 | 3 | 3.7 | 11 | 9 |
QCX5-9 | CJX5-9 | JRS-5-12/Z | 9A | 2.2 | 4 | 5.5 | 11 | 9 |
QCX5-12 | CJX5-12 | JRS-5-12/Z | 3.6A | 0.75 | 1.5 | 2.2 | 13 | 12 |
QCX5-12 | CJX5-12 | JRS-5-12/Z | 5A | 1.1 | 2.2 | 3 | 13 | 12 |
QCX5-12 | CJX5-12 | JRS-5-12/Z | 6.6A | 1.5 | 3 | 3.7 | 13 | 12 |
QCX5-12 | CJX5-12 | JRS-5-12/Z | 9A | 2.2 | 4 | 5.5 | 13 | 12 |
QCX5-12 | CJX5-12 | JRS-5-12/Z | 11A | 3 | 5.5 | 7.5 | 13 | 12 |
QCX5-22/11 | CJX5-22/11 | JRS-5-20/F | 11A | 3 | 5.5 | 7.5 | 22 | 22 |
QCX5-22/11 | CJX5-22/11 | JRS-5-20/F | 15A | 3.7 | 7.5 | 9 | 22 | 22 |
QCX5-22/22 | CJX5-22/22 | JRS-5-20/F | 11A | 3 | 5.5 | 7.5 | 22 | 22 |
QCX5-22/22 | CJX5-22/22 | JRS-5-20/F | 15A | 3.7 | 7.5 | 9 | 22 | 22 |
QCX5-32 | CJX5-32 | JRS-5-20/F | 19A | 5.5 | 11 | 11 | 30 | 30 |
QCX5-32 | CJX5-32 | JRS-5-20/F | 22A | 5.5 | 11 | 11 | 30 | 30 |
QCX5-40 | CJX5-40 | JRS-5-20/F | 19A | 5.5 | 11 | 11 | 40 | 40 |
QCX5-40 | CJX5-40 | JRS-5-20/F | 22A | 5.5 | 11 | 11 | 40 | 40 |
QCX5-40 | CJX5-40 | JRS-5-20/F | 29A | 7.5 | 15 | 18.5 | 40 | 40 |
QCX5-40 | CJX5-40 | JRS-5-20/F | 35A | 9 | 18.5 | 22 | 40 | 40 |
Dimension and Mounting Dimension
■ The starter can be long time and withour thermal relay working. The frequency can be 600 times/hour in short time and repeatly working;
■ Attraction coil can reliably work when 85%~105% rated voltage, It's released voltage approximately is 40~55% rated voltage;
■ The starter contact in the operating frequency is 600/hours, the circular telegram continues to lead forthe merit 40%.Puts through the nominal current put through, when separation the factor is 0.35, It's electrical life is not lower than 640,000 times;
■ The starter's mechanical life is 3 million times;
■ The starter's auxiliary contact, it's nominal current is 5A;
■ The thermal relay has the temperature compensation organization, May balance the temperature which is caused by the changes of voltage surrounding temperature;
■ The thermal relay overload is with the stipulations. To see the following.
