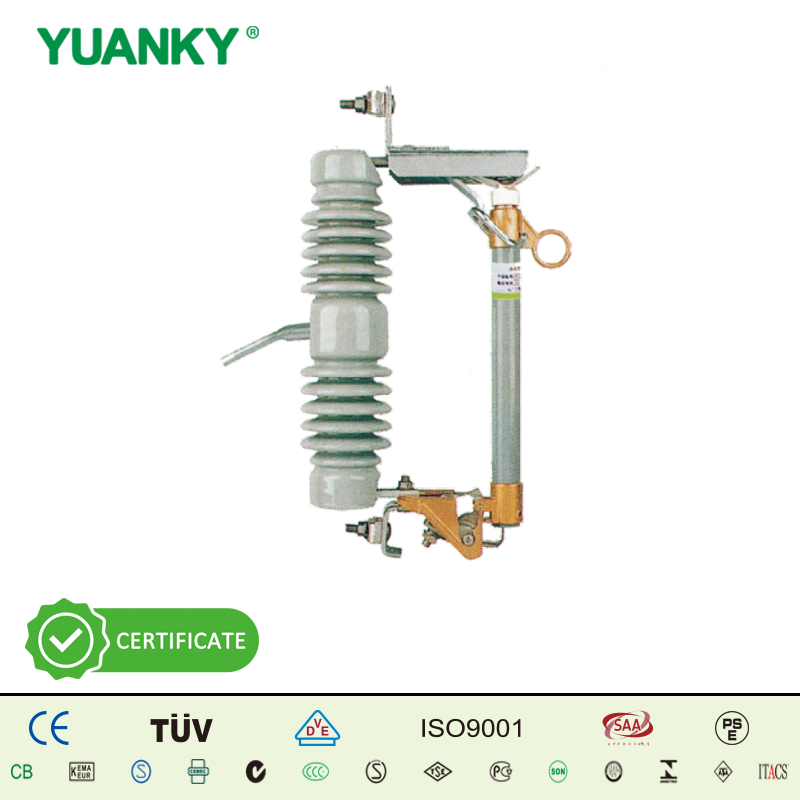

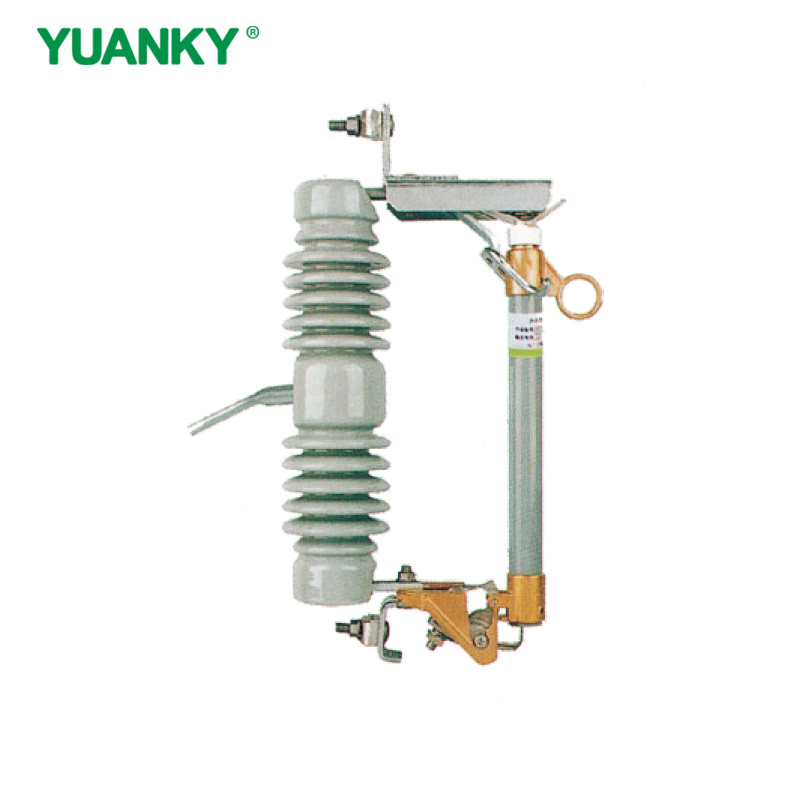

ZC1 15kV‑27kV Drop‑out Fuse
YUANKY
America, Europe, Britain, Australia, Southeast Asia, Philippines, I, Africa, French, Arabic
This outdoor drop‑out fuse adopts porcelain insulator structure with stable mechanical performance. It is available in 100A and 200A rated‑current versions, featuring sufficient breaking‑current capacity, qualified impulse and power‑frequency withstand voltage, proper creepage distance for outdoor overhead installation.

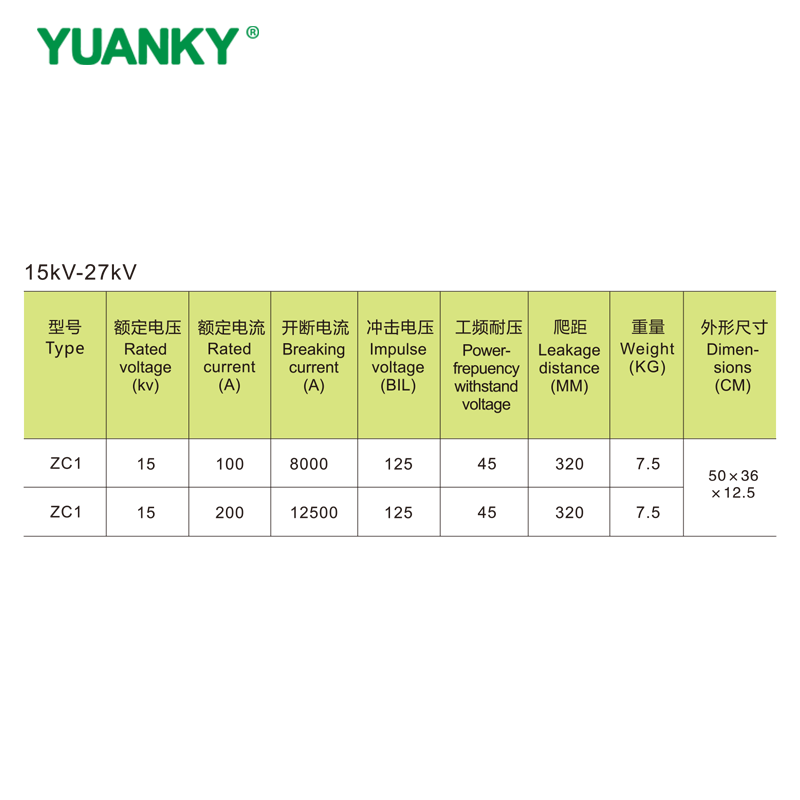

Technical Parameters
Type | Rated voltage(kv) | Rated current(A) | Breaking current(A) | Impulse voltage(BIL) | Power‑frequency withstand voltage | Leakage distance(MM) | Weight(KG) | Dimensions(CM) |
|---|---|---|---|---|---|---|---|---|
ZC1 | 15 | 100 | 8000 | 125 | 45 | 320 | 7.5 | 50×36×12.5 |
ZC1 | 15 | 200 | 12500 | 125 | 45 | 320 | 7.5 | 50×36×12.5 |
