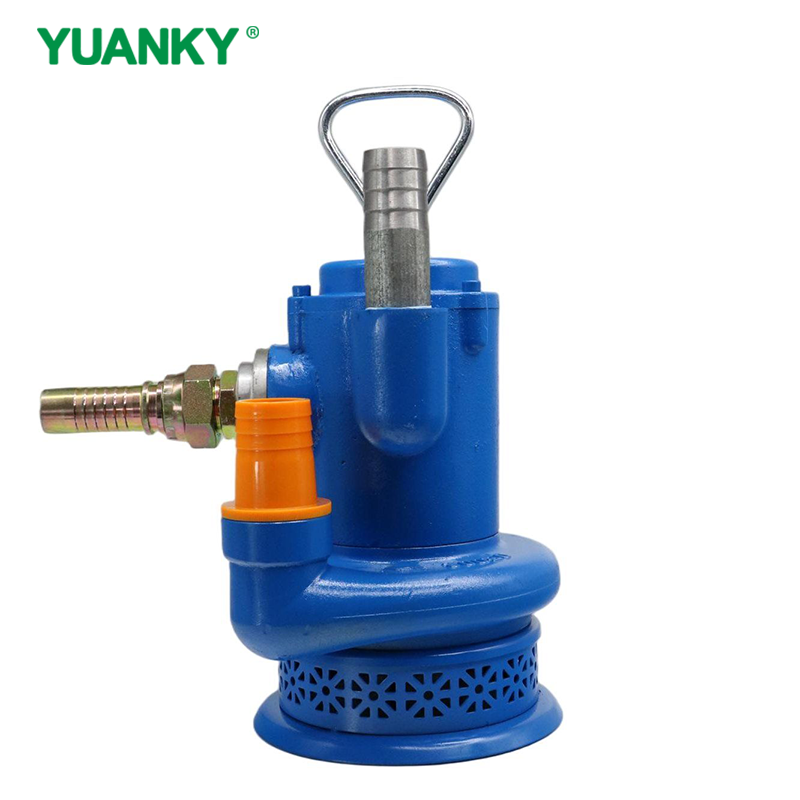

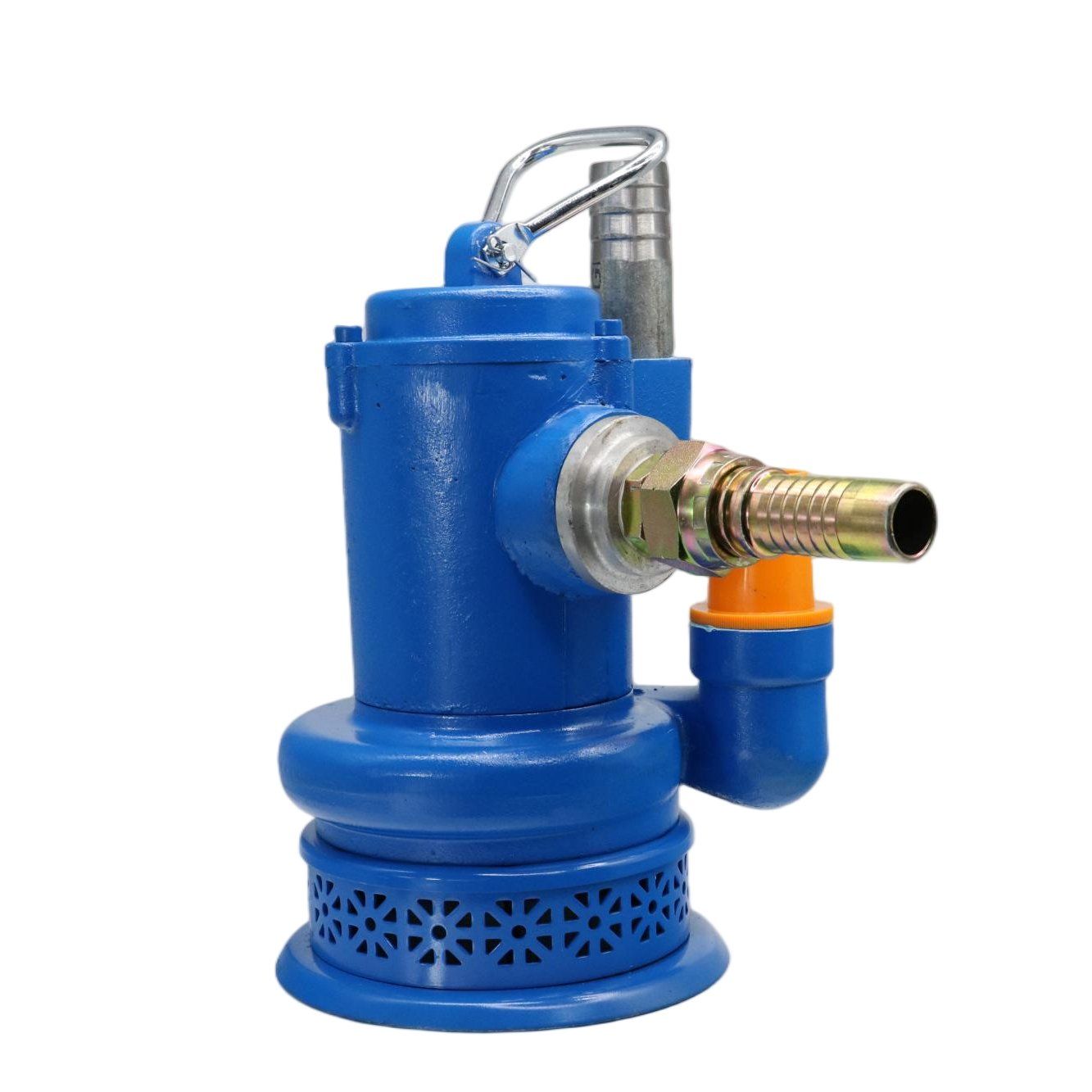

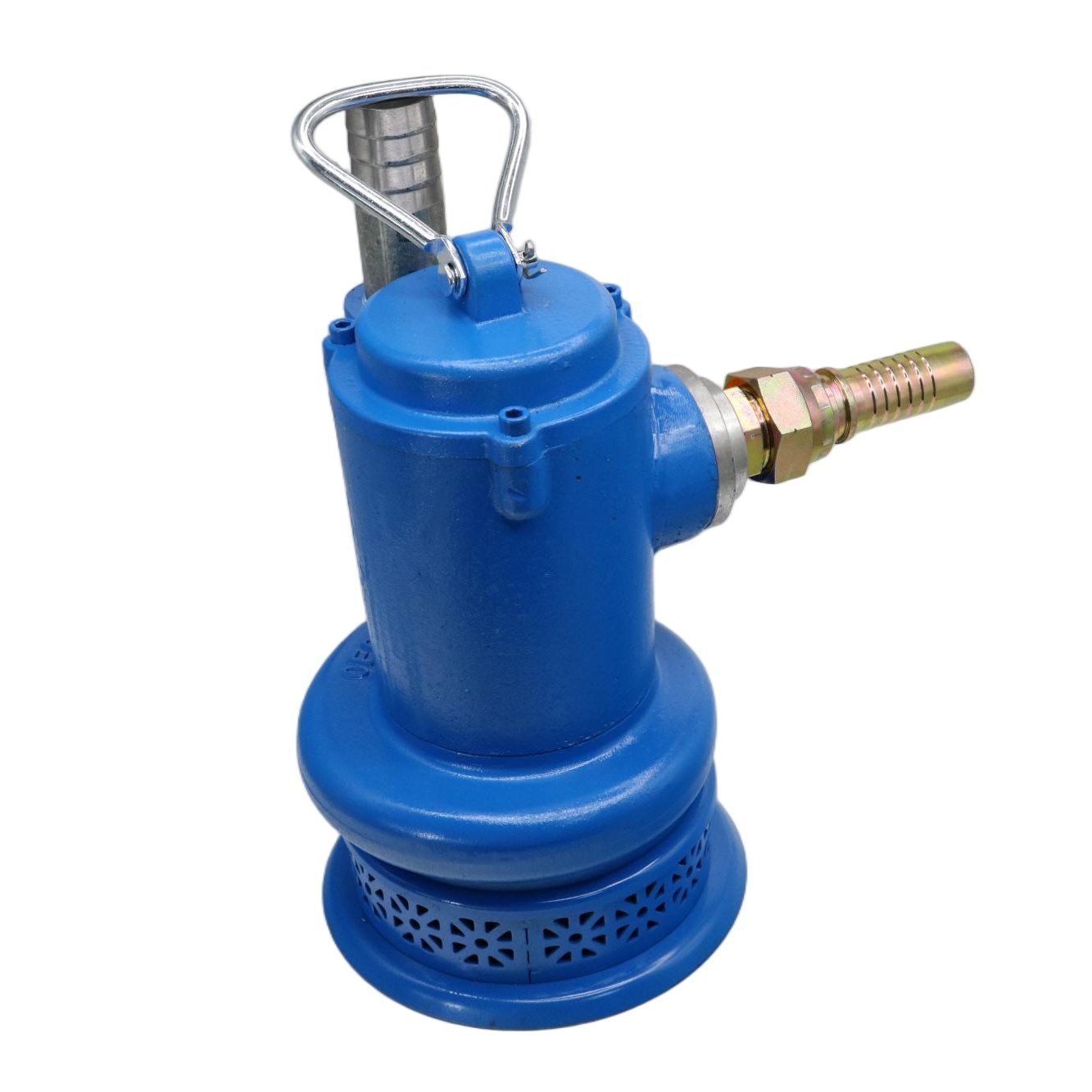

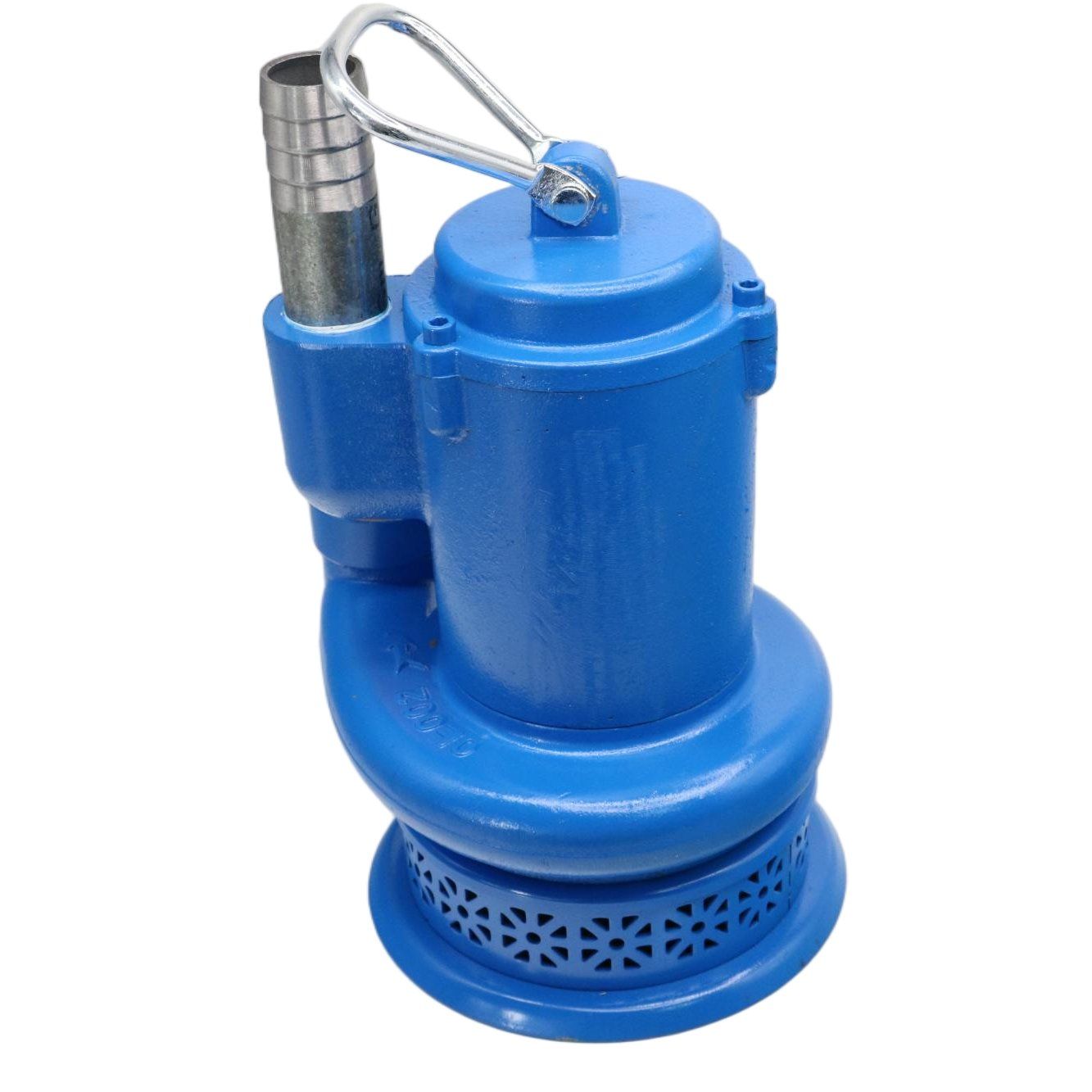

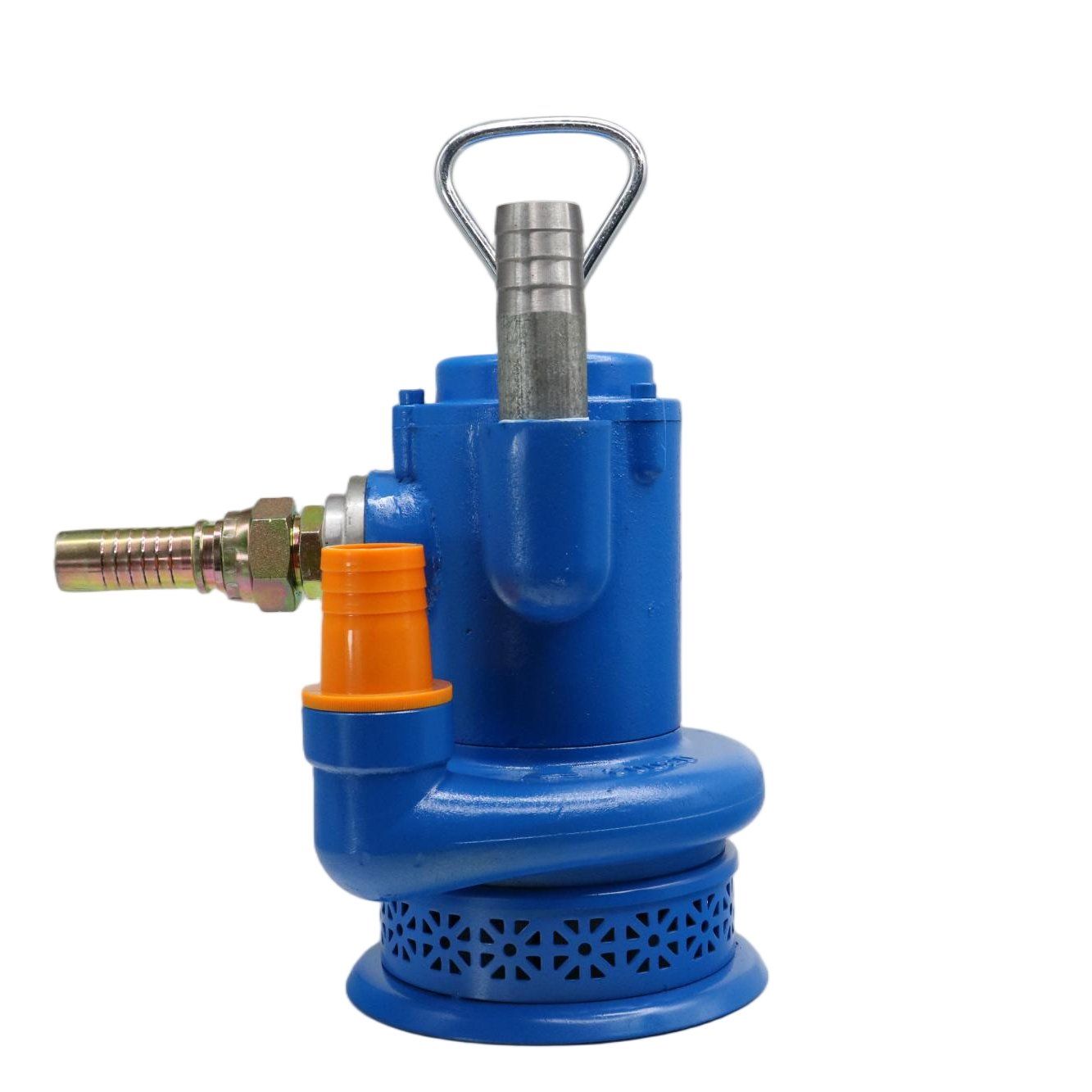

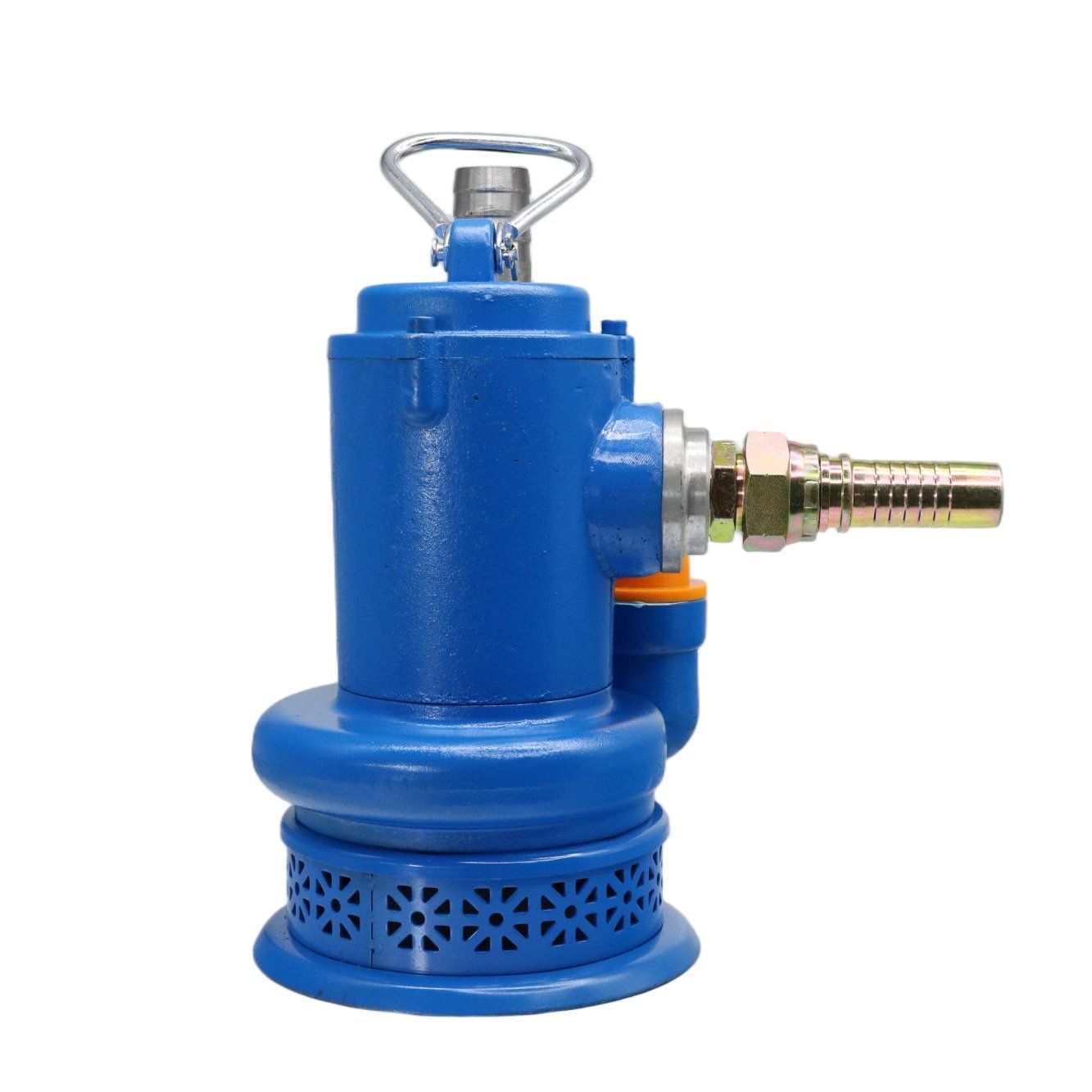

YUANK SP-SP20-60 Series Pneumatic Sump Pumps, Air Pressure 0.3Mps-0.7Mpa, Rated Lift 60mtrs-80mtrs, Speed 4500rpm-5000rpm Air Pumps

No.

Model

Part     Name

Qty

1

SP-SP30-80-24

Air Inlet Pipe Joint

1

2

SP-SP30-80-22

Internal Connection Of Air Intake

1

3

SP-SP30-80-21

Oil Regulating Valve Core

1

4

SP-SP30-80-15

Muffler

1

5

SP-SP30-80-17

Top Cover

1

6

6305

Bearing

1

7

SP-SP30-80-12B

Housing

1

8

SP-SP30-80-09

Cylinder

1

9

SP-SP30-80-10

Blade

4

10

6305

Bearing

1

11

SP-SP30-80-14

Spacer

1

12

47x58x10

Skeleton Oil Seal

2

13

SP-SP30-80-16

Spacer

1

14

SP-SP30-80-05

Impeller

1

1025

Flat Key

1

15

SP-SP30-80-04

Impeller Nut

1

GB856-76

Washers

1

16

SP-SP30-80-01

Pump Seat

1

17

SP-SP30-80-23

Pipe Joint Cap Assembly

1

18

SP-SP30-80-25

Oil Regulating Valve Screw

1

19

SP-SP30-80-20

Oil Mist Collector Body

1

20

SP-SP30-80-19

Oil Mister Housing

1

21

Oil Injection Hole Screw

1

22

SP-SP30-80-18

Snap Ring

1

23

GB893-76

Collar Hat

1

24

SP-SP30-80-16B

Bearing Cover

1

25

SP-SP30-80-13B

Upper Cylinder Head

1

26

SP-SP30-80-11B

Rotor

1

27

SP-SP30-80-08

Lower Cylinder Head

1

28

SP-SP30-80-06

Oil Seal Spacer

1

29

SP-SP30-80-07

Shaft Sleeve

1

30

SP-SP30-80-02

Water Outlet Elbow

1

31

SP-SP30-80-03

Pump   Body

1
