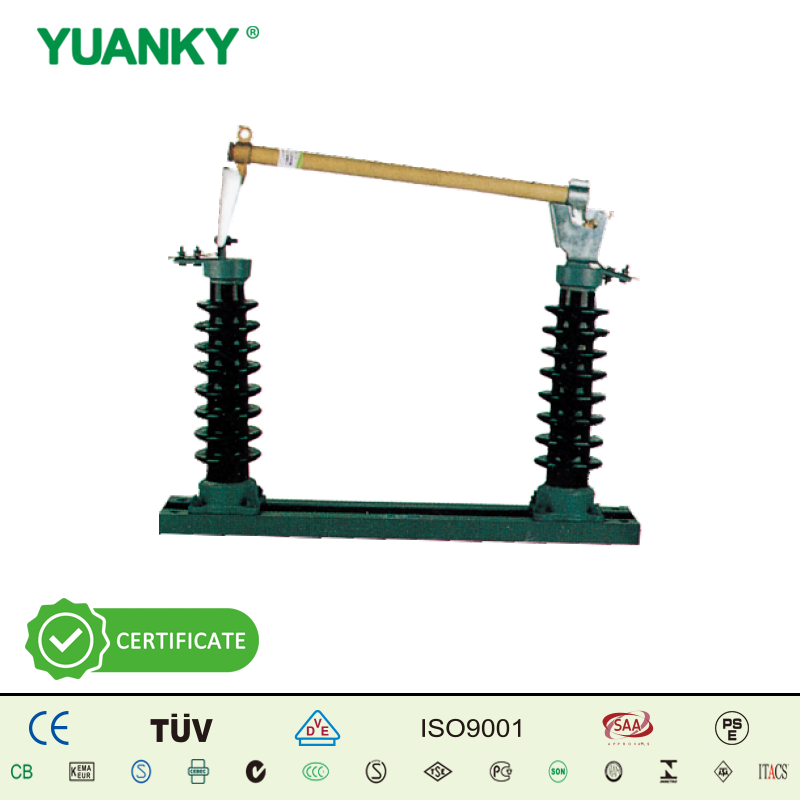

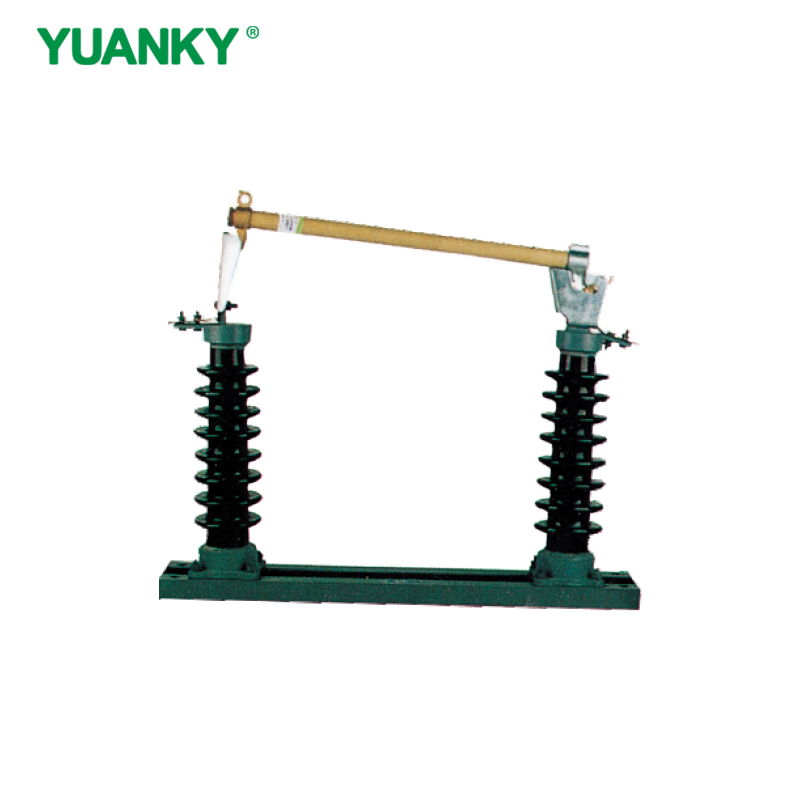

RW5 35kV Drop‑out Fuse
YUANKY
America, Europe, Britain, Australia, Southeast Asia, Philippines, I, Africa, French, Arabic
This outdoor high‑voltage drop‑out fuse adopts porcelain insulator with qualified creepage distance to adapt to complex field environments, it provides 100A and 200A rated‑current options with stable breaking‑current capacity, and possesses excellent impulse and power‑frequency withstand performance to ensure steady long‑time operation in outdoor conditions.

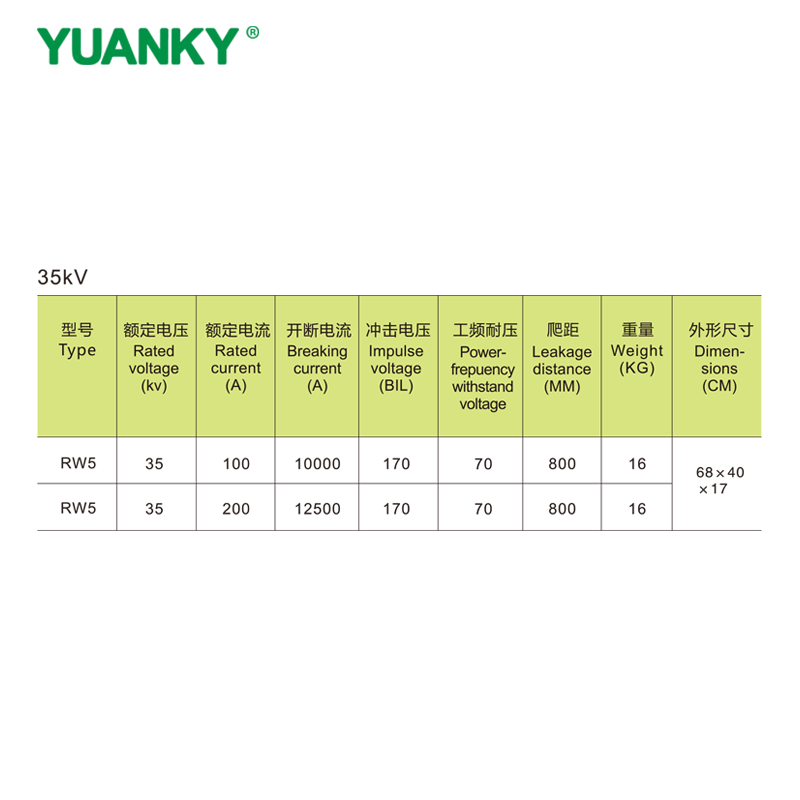

Technical Parameters
Type | Rated voltage(kv) | Rated current(A) | Breaking current(A) | Impulse voltage(BIL) | Power‑frequency withstand voltage | Leakage distance(MM) | Weight(KG) | Dimensions(CM) |
|---|---|---|---|---|---|---|---|---|
RW5 | 35 | 100 | 10000 | 170 | 70 | 800 | 16 | 68×40×17 |
RW5 | 35 | 200 | 12500 | 170 | 70 | 800 | 16 | 68×40×17 |
