HWP‑xxE (DN50‑DN300)
YUANKY
America, Europe, Britain, Australia, Southeast Asia, Philippines, I, Africa, French, Arabic, German
Product Features

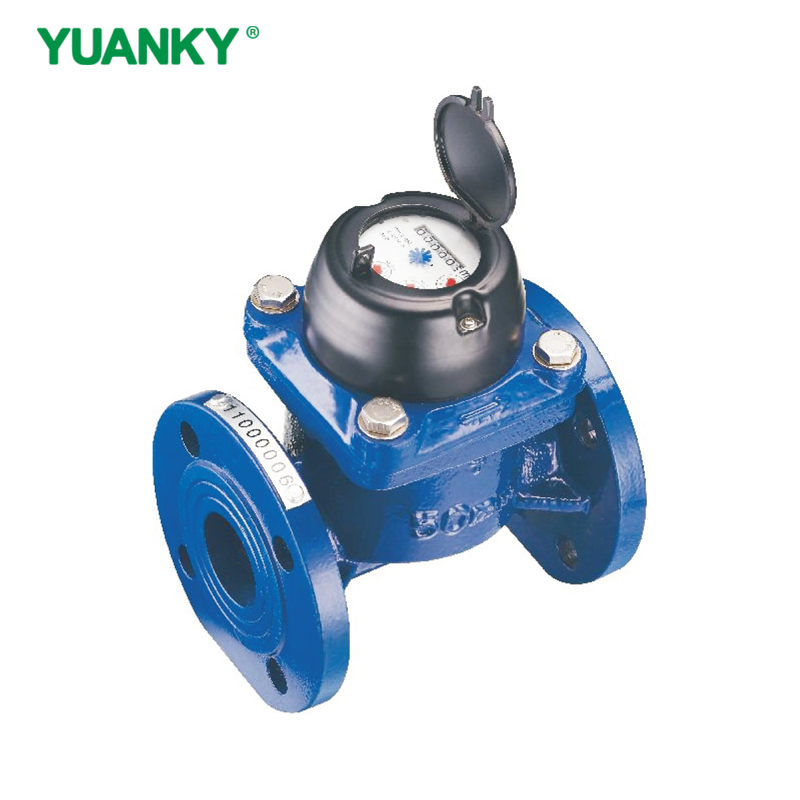

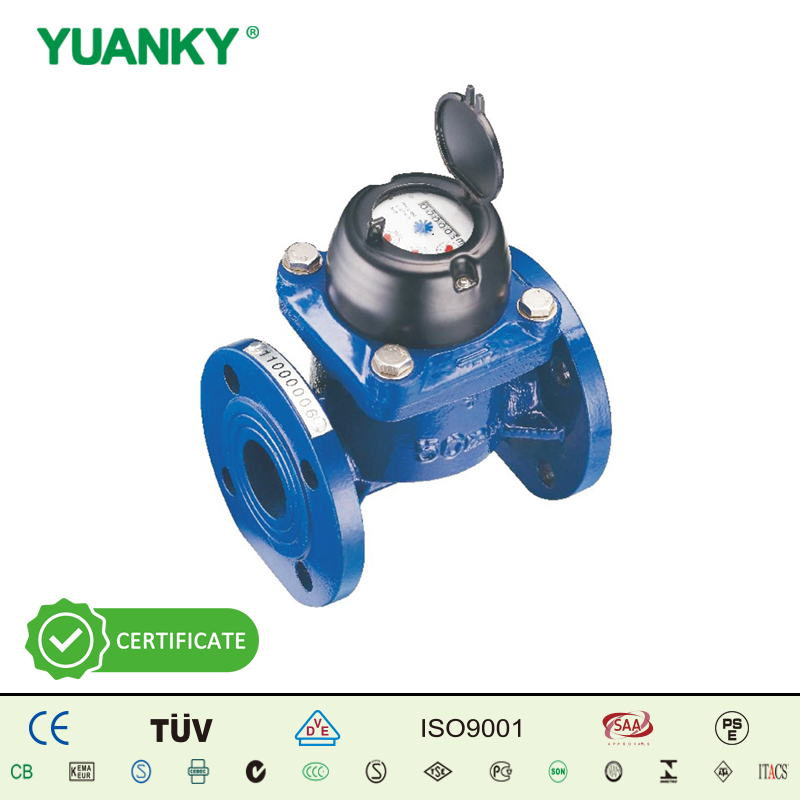

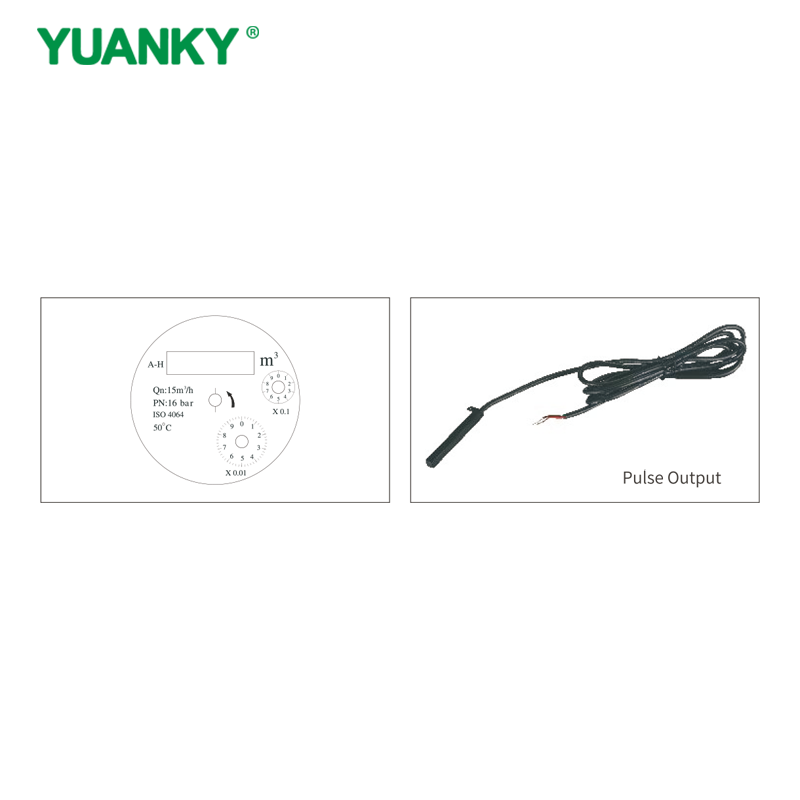

YUANKY HWP‑xxE irrigation removable water meter (sewage meter) adopts dry dial and magnetic transmission structure, it is specially developed for irrigation scenarios and capable of measuring dirty water containing solid sediments, remote transmission device can be added upon request with optional pulse output of 100L/Pulse,1000L/Pulse, it suits cold water ≤30℃ and hot water up to 90℃, working water pressure ≤1MPa (PN:1.6MPa/16bar) with pressure loss ΔP≤0.63MPa, its measurement accuracy is ±5% from minimum flow‑rate(qmin) inclusive to transitional flow‑rate(qt) exclusive and ±2% from transitional flow‑rate(qt) inclusive to overload flow‑rate(qs) exclusive.
Technical parameters
| Size (mm) | Class of Measurement | Maximum Flow qs(m³/h) | Nominal Flow qp(m³/h) | Transitional Flow qt(m³/h) | Minimum Flow qmin(m³/h) | Minimum Reading min(m³) | Maximum Reading max(m³) |
|---|---|---|---|---|---|---|---|
| 50 | A | 30 | 15 | 4.5 | 1.2 | 0.0002 | 999,999 |
| 65 | A | 50 | 25 | 7.5 | 2 | 0.002 | 999,999 |
| 80 | A | 80 | 40 | 12 | 3.2 | 0.002 | 999,999 |
| 100 | A | 120 | 60 | 18 | 4.8 | 0.002 | 999,999 |
| 125 | A | 200 | 100 | 30 | 8 | 0.002 | 999,999 |
| 150 | A | 300 | 150 | 45 | 12 | 0.002 | 999,999 |
| 200 | A | 500 | 250 | 75 | 20 | 0.002 | 999,999 |
| 250 | A | 800 | 400 | 120 | 32 | 0.02 | 9,999,999 |
| 300 | A | 1200 | 600 | 180 | 48 | 0.02 | 9,999,999 |
