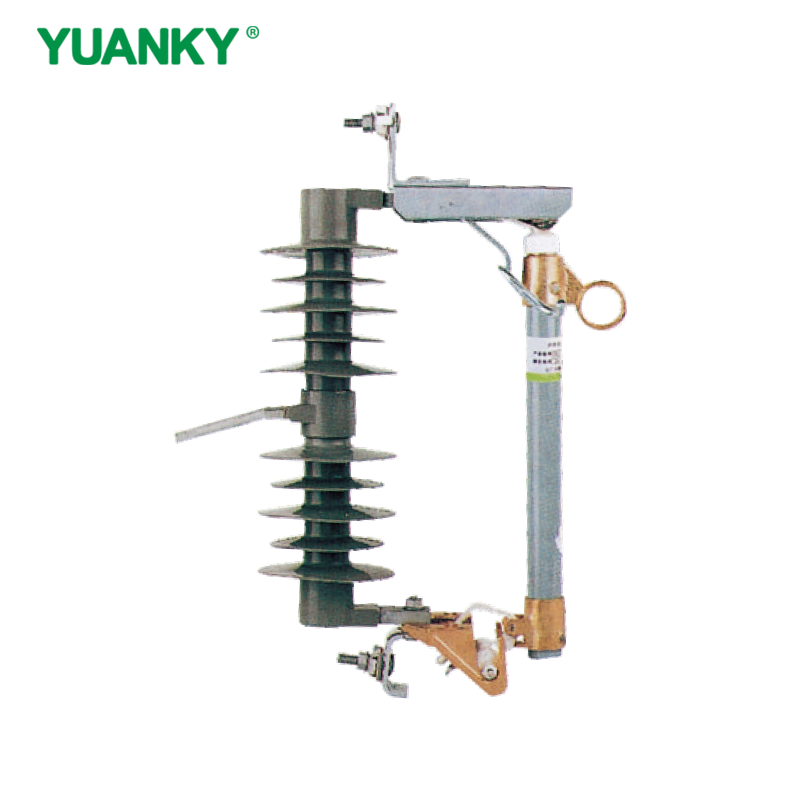

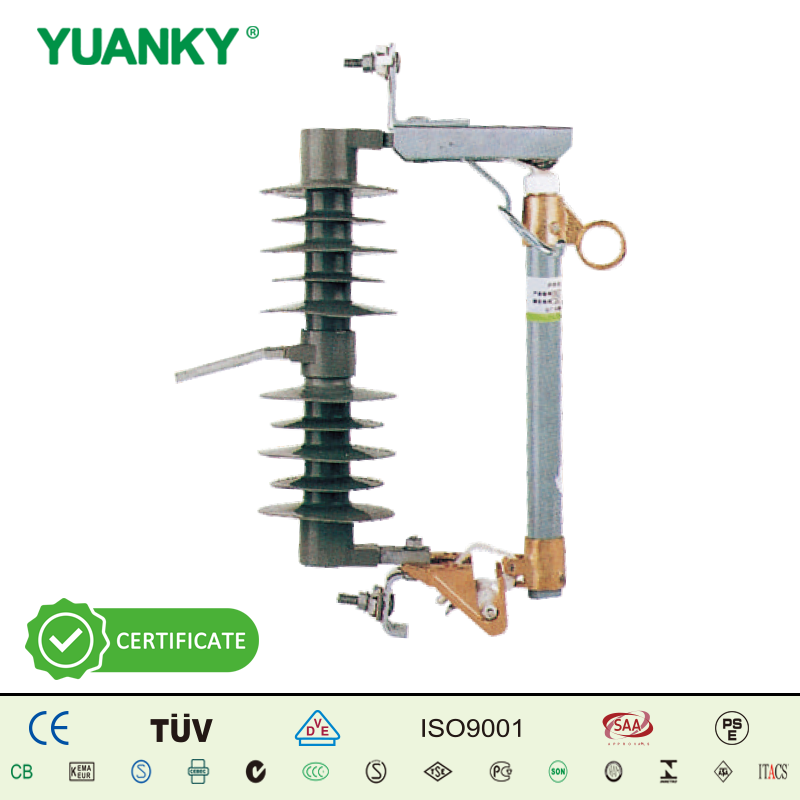

HZC1 24kV‑27kV Drop‑out Fuse
YUANKY
America, Europe, Britain, Australia, Southeast Asia, Philippines, I, Africa, French, Arabic
This outdoor drop‑out fuse adopts composite polymer insulator for light weight and good weather resistance. It comes with 100A and 200A rated‑current options, delivering reliable breaking‑current performance, qualified impulse and power‑frequency withstand voltage, as well as sufficient creepage distance to adapt to various outdoor overhead operating environments.

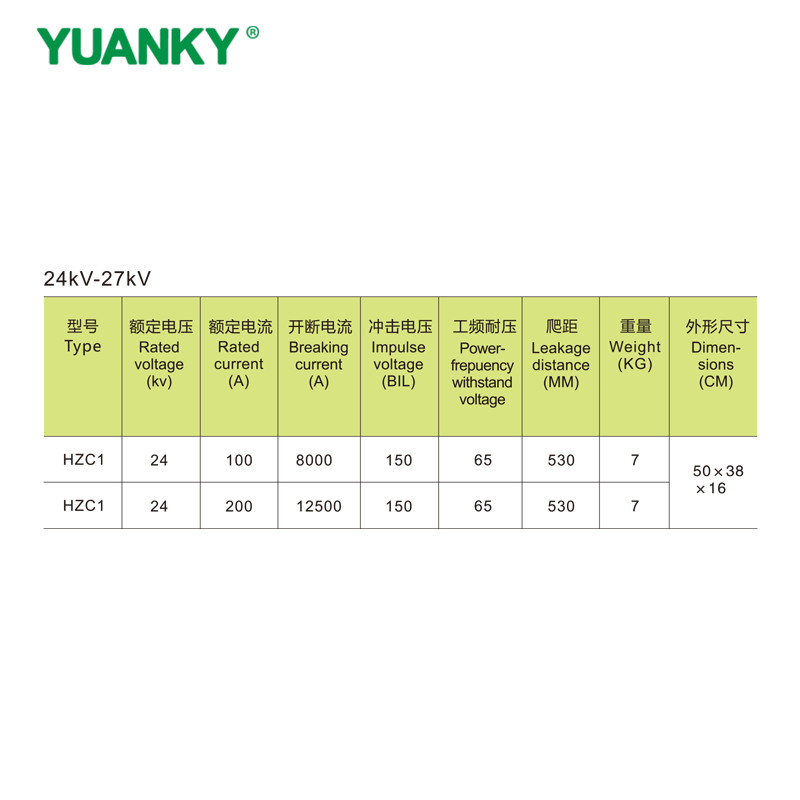

Technical Parameters
Type | Rated voltage(kv) | Rated current(A) | Breaking current(A) | Impulse voltage(BIL) | Power‑frequency withstand voltage | Leakage distance(MM) | Weight(KG) | Dimensions(CM) |
|---|---|---|---|---|---|---|---|---|
HZC1 | 24 | 100 | 8000 | 150 | 65 | 530 | 7 | 50×38×16 |
HZC1 | 24 | 200 | 12500 | 150 | 65 | 530 | 7 | 50×38×16 |
