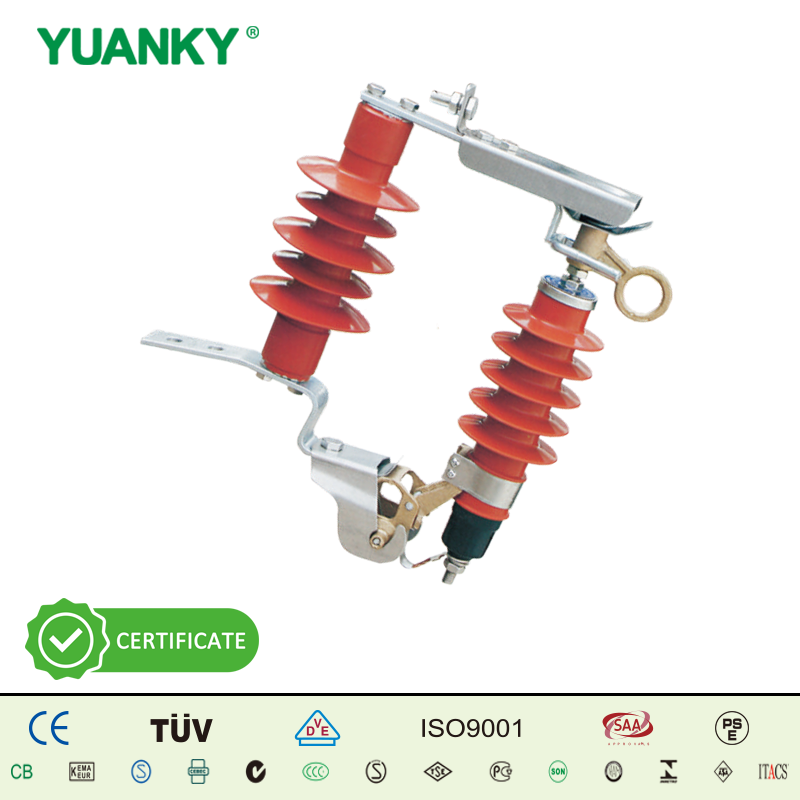

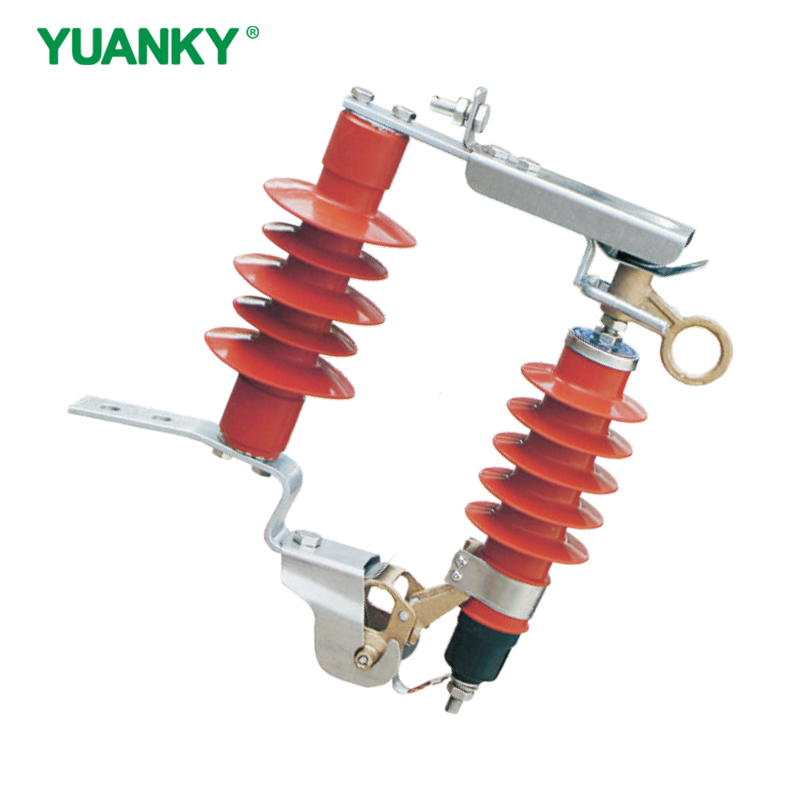

YUANKY Thermal explosion from type drop type arrester

Yuanky thermal explosion drop‑type arrester is specially designed for overhead distribution power lines. Integrated with thermal explosion dropout disconnector structure, it provides reliable lightning over‑voltage protection for distribution network. When internal failure occurs, the dropout mechanism will act to isolate the faulty unit, avoiding sustained grid fault and facilitating quick on‑site inspection.

Availability:



Inquire Add to Basket

Model:
Thermal explosion from type drop type arrester
Brand:
YUANKY
Intercontinental Product:
America, Europe, Britain, Australia, Southeast Asia, Philippines, I, Africa, French, Arabic

Product Description

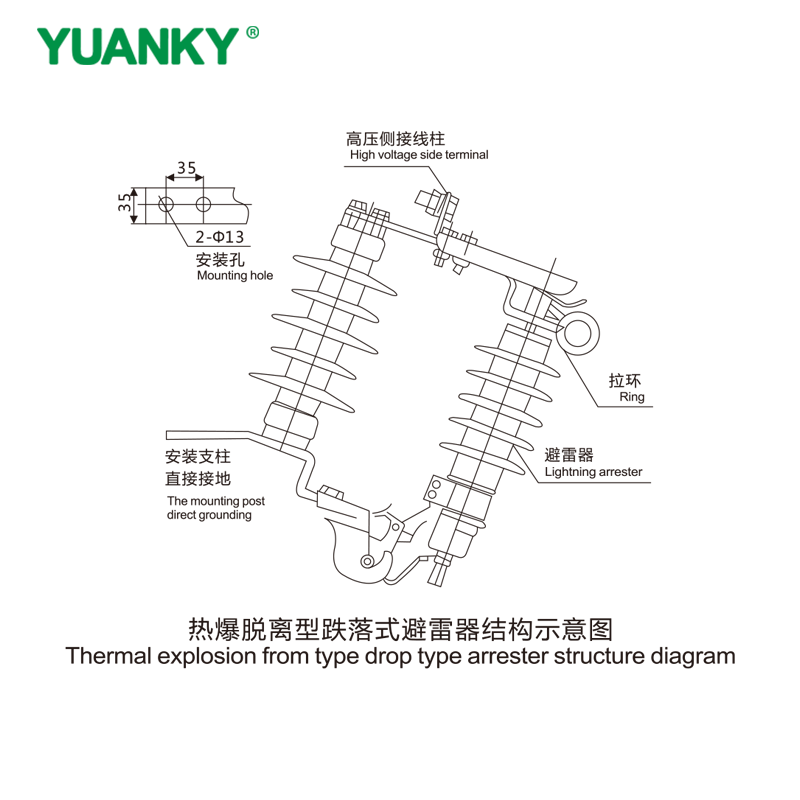

Yuanky thermal explosion drop‑type arrester is specially designed for overhead distribution power lines. Integrated with thermal explosion dropout disconnector structure, it provides reliable lightning over‑voltage protection for distribution network. When internal failure occurs, the dropout mechanism will act to isolate the faulty unit, avoiding sustained grid fault and facilitating quick on‑site inspection.

Technical Parameters

Item	HY5WS‑10/30DL HY5WS‑10/30DL‑TR HY5WS‑10/30DL‑TB	HY5WS‑17/50DL HY5WS‑17/50DL‑TR HY5WS‑17/50DL‑TB
System rated voltage(kV r.m.s)	9	10
Arrester rated voltage(kV r.m.s)	10	17
Continuous operating voltage(kV r.m.s)	8.0	13.6
DC reference voltage(U1mA) ≥kV	15.0	25.0
0.75U1mA leakage current ≤μA	30	30
Lightning impulse residual voltage ≥kV	30	50.0
Switching impulse residual voltage ≥kV	25.6	42.5
Square‑wave current capacity(2ms) ≤A	150	150
Large‑current impulse withstand ≤kA	40	40
Application scenario	Distribution	Distribution
