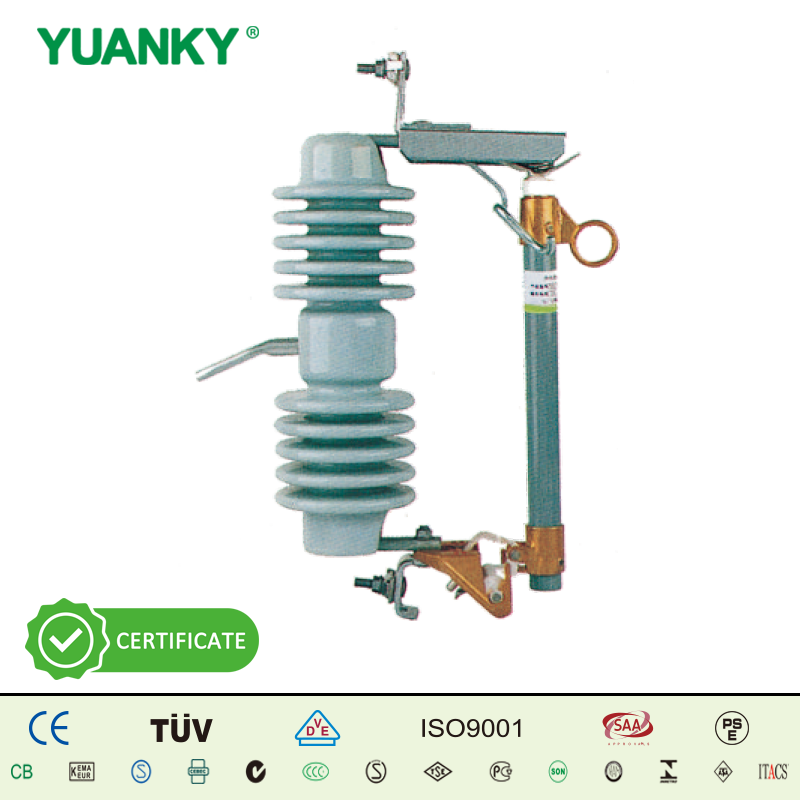

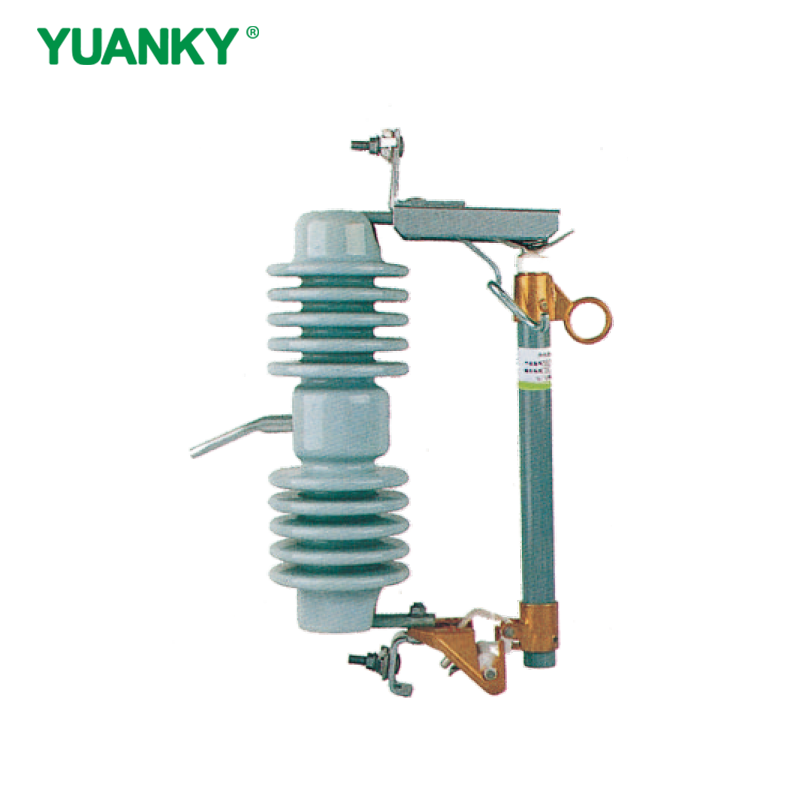

ZC1 24kV‑27kV Drop‑out Fuse
YUANKY
America, Europe, Britain, Australia, Southeast Asia, Philippines, I, Africa, French, Arabic
This outdoor drop‑out fuse is built with porcelain insulator for stable mechanical performance. It supplies 100A and 200A rated‑current options with sufficient breaking‑current capacity, good impulse and power‑frequency withstand performance, and adequate creepage distance to satisfy outdoor overhead working conditions.

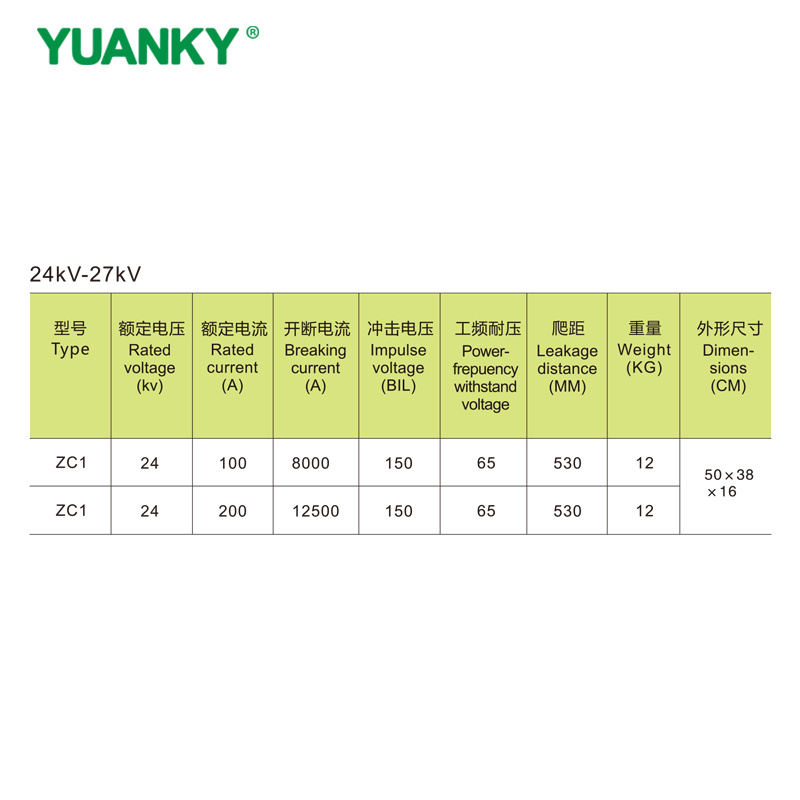

Technical Parameters
Type | Rated voltage(kv) | Rated current(A) | Breaking current(A) | Impulse voltage(BIL) | Power‑frequency withstand voltage | Leakage distance(MM) | Weight(KG) | Dimensions(CM) |
|---|---|---|---|---|---|---|---|---|
ZC1 | 24 | 100 | 8000 | 150 | 65 | 530 | 12 | 50×38×16 |
ZC1 | 24 | 200 | 12500 | 150 | 65 | 530 | 12 | 50×38×16 |
