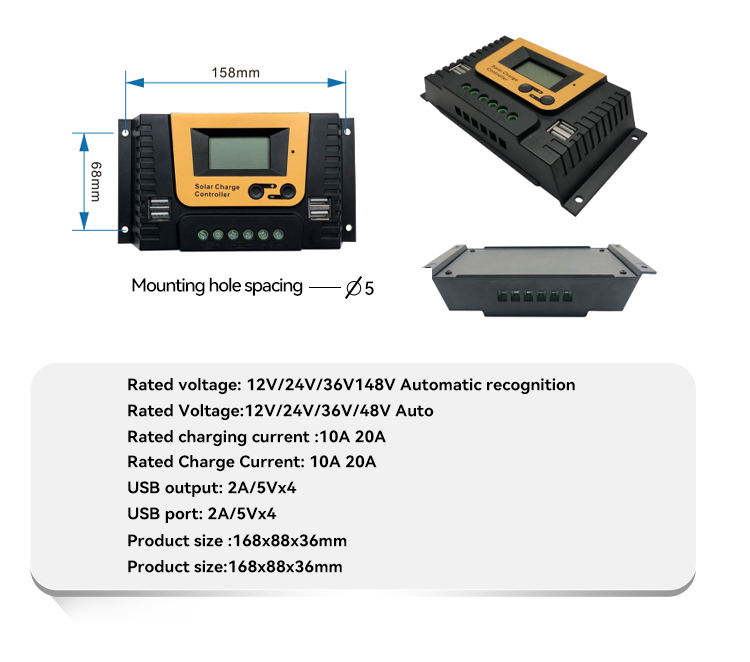

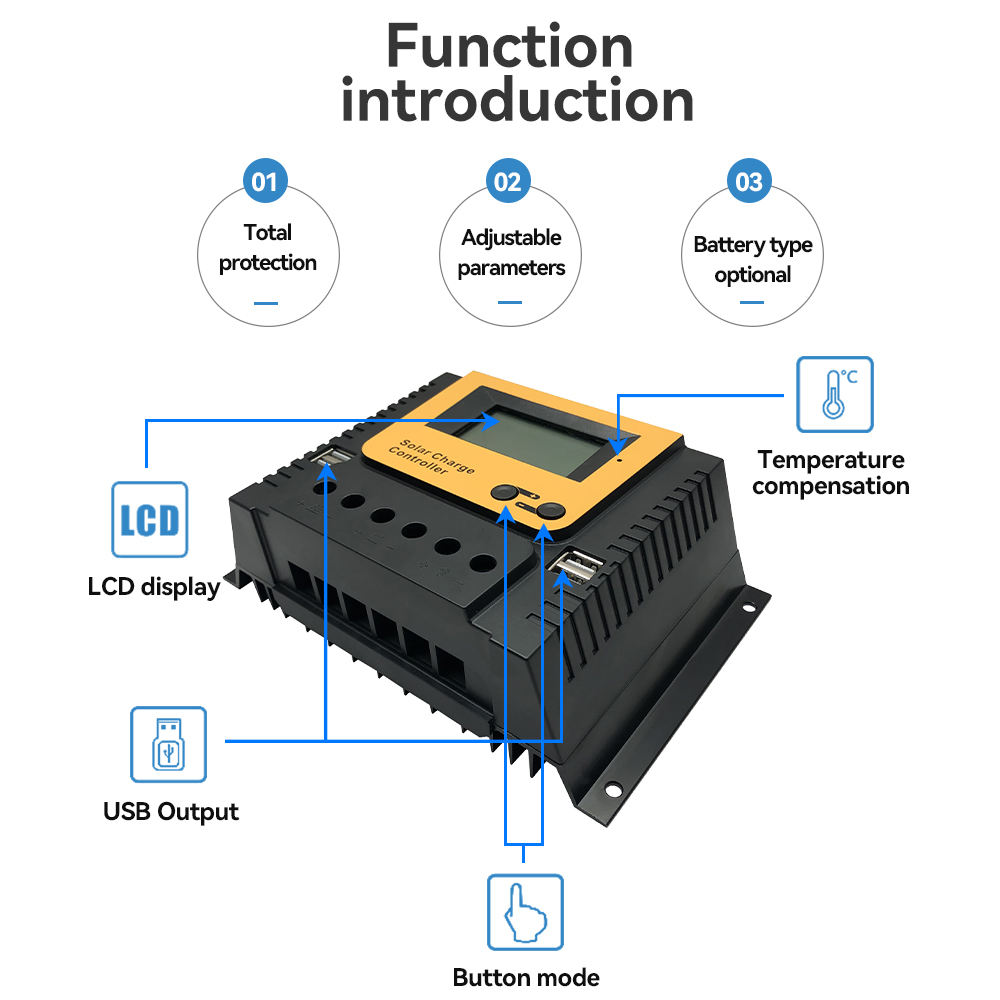

CP/MS SERIES Solar Controller

Availability:
  • America

MODEL CP-10A CP-20A CP-30A CP-40A
Battery Voltage 12V/24V AUTO
Input Voltage <50V
Rated Current 10A 20A 30A 40A
Light Control YES
Time Contro YES
Temp.Compensation -4mV/degress centigrade
Charge Mode PWM
Package Color BOX
PCS/CTN 40pcs/ctn 30pcs/ctn
No load loss 10 mA 20 mA
Size 152*107*42 mm 165*133*43.5 mm
Carton Size 165*119*48 mm 182*143*50 mm
N.W 0.35 kg 0.45kg

10

MODEL MS1024U MS1524U MS2024U MS2524U
Rated Voltage 12V/24V AUTO
Rated Current 10A 15A 20A 25A
USB Output 5V,2.1A
Light Control YES
Time Control YES
DC PORT 12V/24V
Package Color BOX
PCS/CTN 50pcs/ctn
Size 152*100*42mm
N.W. 0.26 kg
MODEL MS3024-U MS4024-U
Rated Voltage 12V/24V AUTO
Rated Current 30A 40A
USB Output 5V,2.1A
Light Control YES
Time Contro YES
DC PORT 12V/24V
Package Color BOX
PCS/CTN 50pcs/ctn
Size 190*116*51 mm
N.W. 0.4 kg
MODEL MS5024U MS6024U MS8024U MS5048U MS6048U MS8048U
Rated Voltage 12V/24V AUTO
Rated Current 50A 60A 80A 50A 60A 80A
USB Output 5V,2.1A
Light Control YES
Time Control YES
DC PORT 12V/24V
Package Color BOX
PCS/CTN 30pcs/ctn
Size 188*140*60 mm
N.W. 0.6 kg
