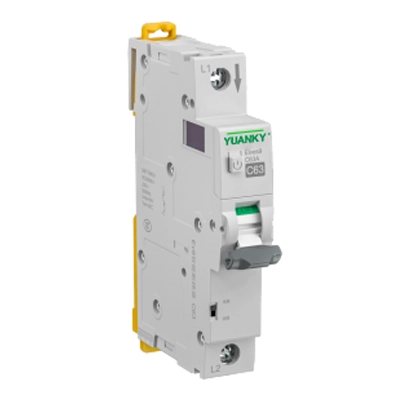

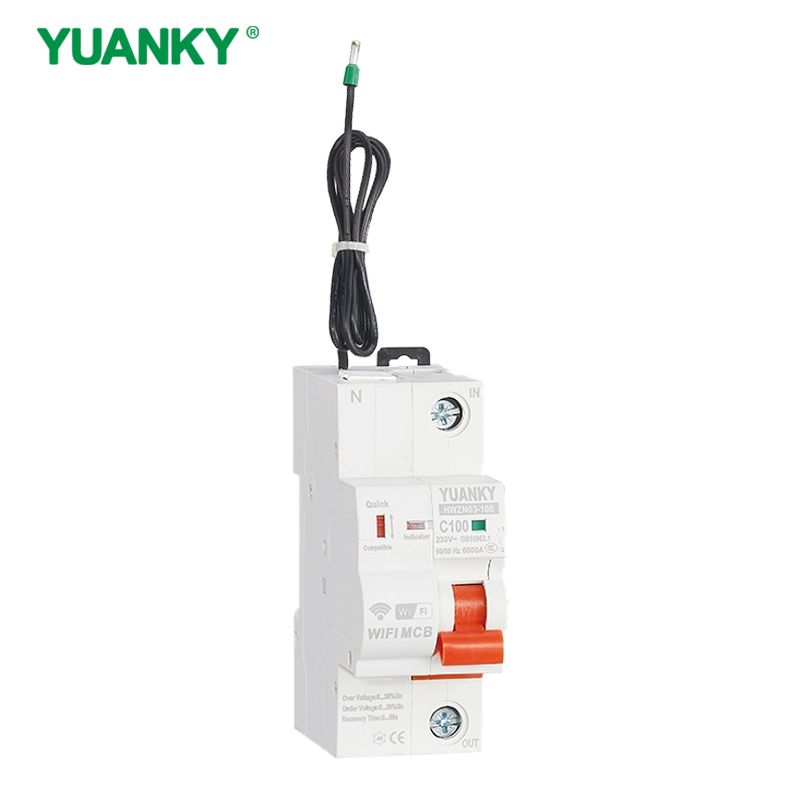

HW-40APlot Circuit Breaker

Hw series Internet of Things circuit breaker is a multi-functional intelligent switch that integrates metering, overload and short circuit. Over and under voltage, leakage, over temperature protection, remote opening and closing, timing, network communication and other functions.

Availability:



Inquire Add to Basket

Model:
HW-40A
Brand:
Yuanky
Intercontinental Product:
America

Product Description

Electric meter	C tupe lother tupes, can be customizedl
Rated current	16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A
StandardsCompliant	GB10963.1
Short circuit Breaking capacity	≥6KA
Short circuit Protection	When the line is short-circuited, the circuit breaker 0.01s power-off protection
Quorunltaao Protection	When the line is over or under voltage, the circuit breaker will be powered off after 3s (can be set) Over voltage setting demand setting percentage value
Overload delay Protection	According to the rated current of the circuit breaker, it meets the requirements of the GB10963.1 Standard
Timing control	Can be set according to needs
View	You can check the voltage and switch on and off status through this app on your mobile phone
Manual and automatic integrated control	The mobile phone app can be automatically controlled, and the on-off can also be controlled by the push rod (handle);
Communication Method	Wireless wifi
