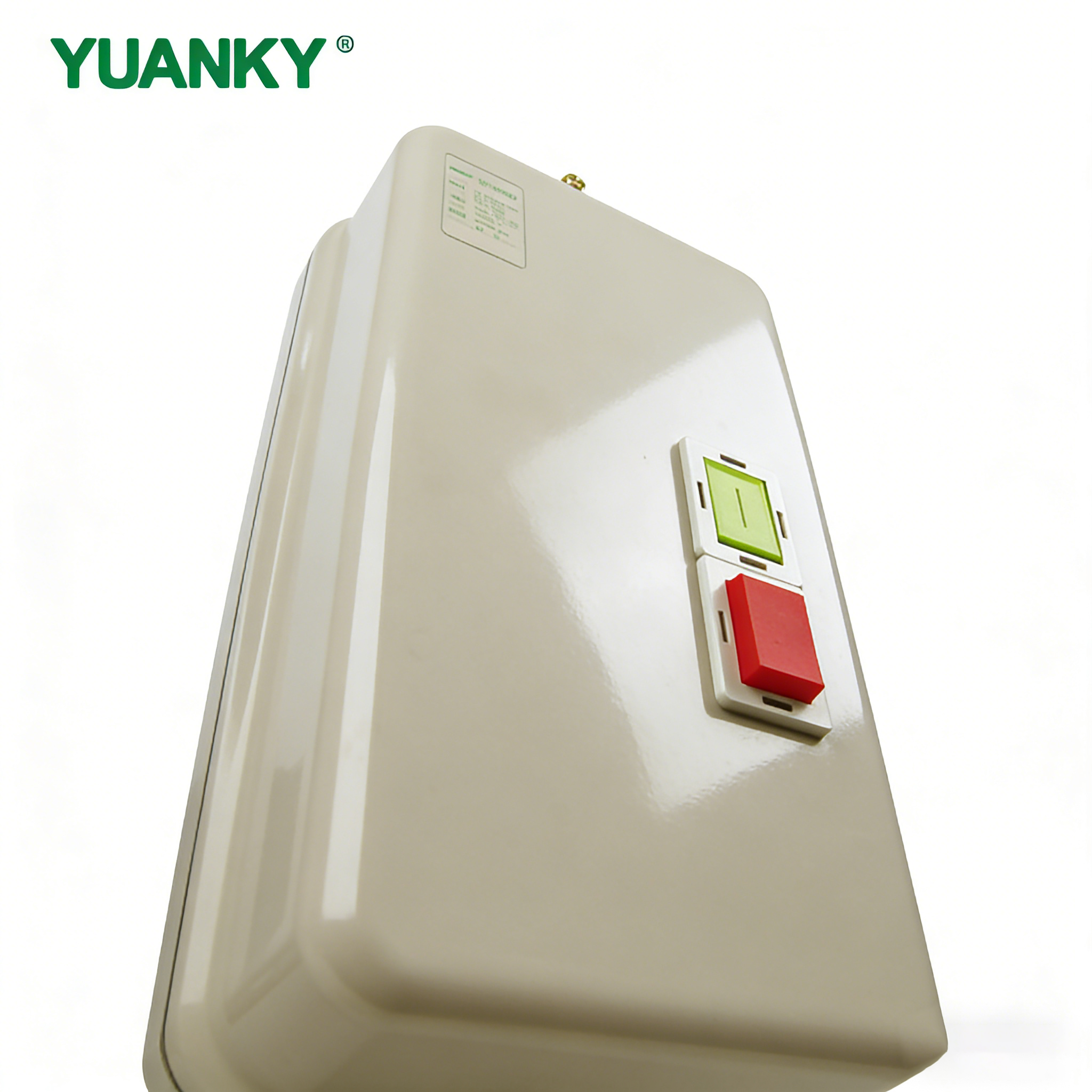

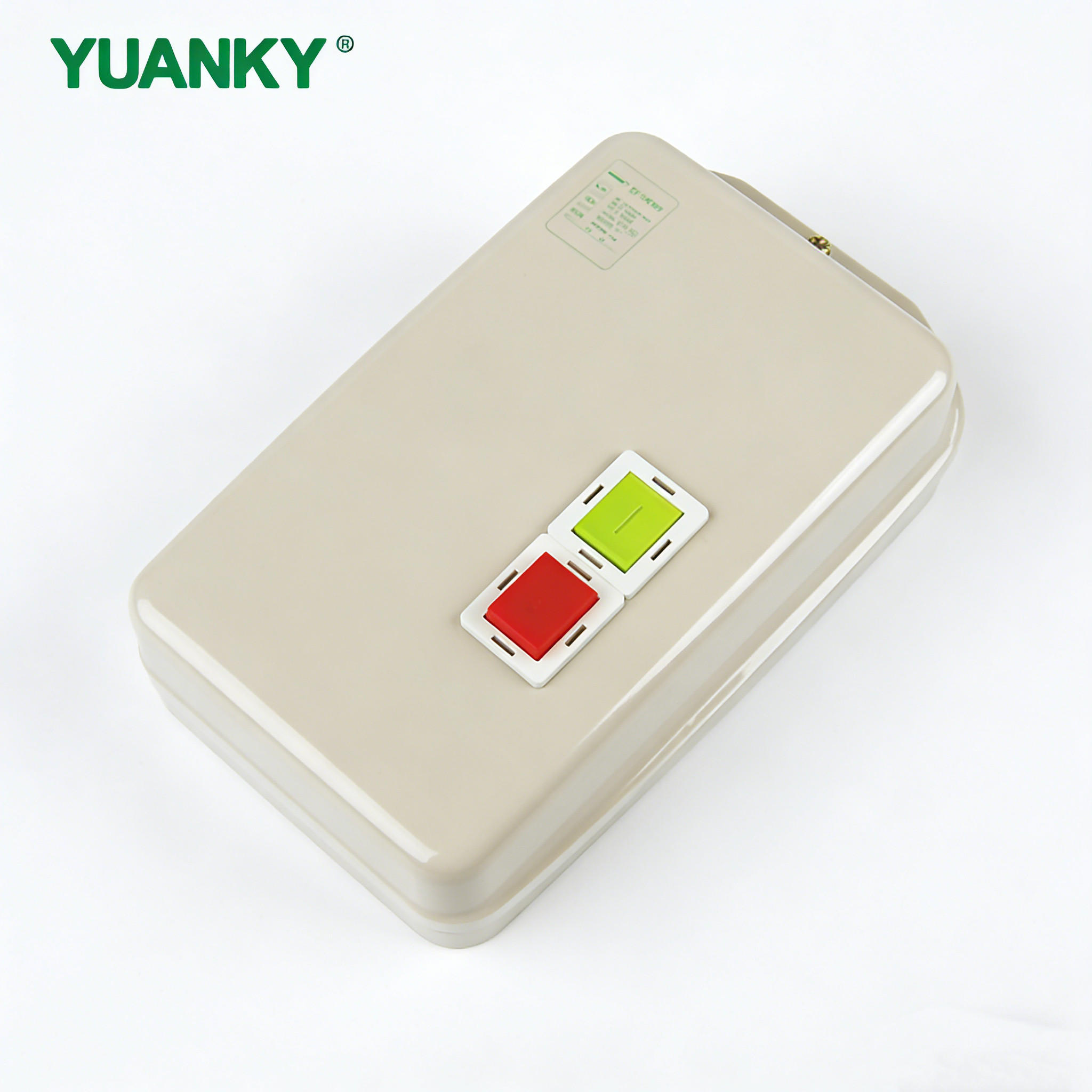

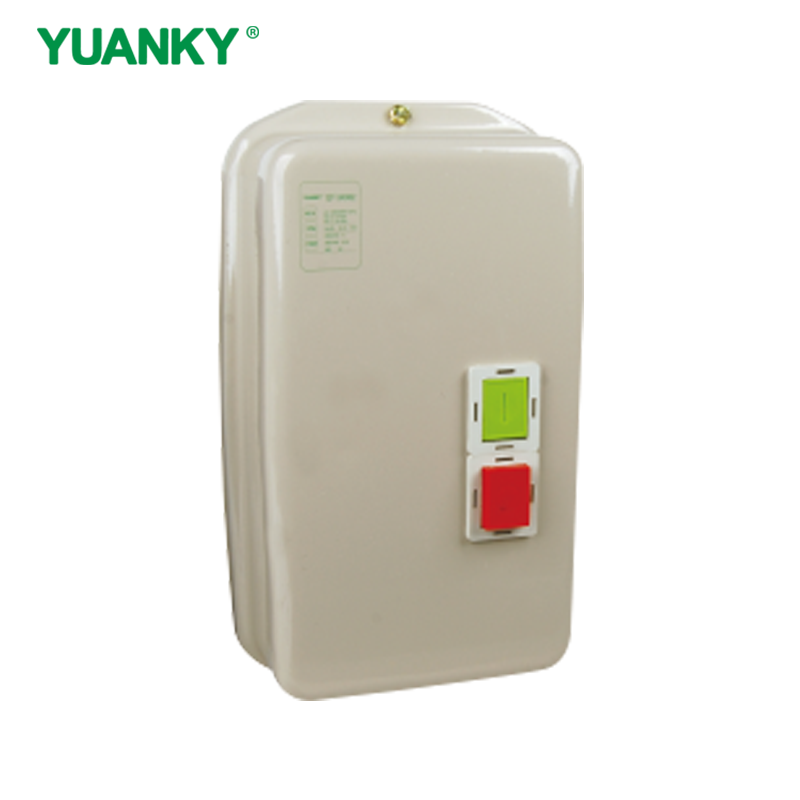

QCX2 Series Magnetic Starter

QCX2 series magnetic motor starter is mainly applied to circuit of AC 50 or 60Hz, voltage
up to 550V for all distance making and breaking circuit and frequent start and control motor.
The magnetic starter has the features of small volume, light weight, low power consumption,
high efficiency, safe and reliable performance etc. It complies to IEC947-4-1
Also called magnetic light starter, starter motors, motor starters, magnetic control, auto
starter, magnetic starter for air compressor, reversing starter, starter switch, magnetic
switch, magnetic generator, air conditioner starter and electrical starter and so on.

Availability:



Inquire Add to Basket

Model:
QCX2
Brand:
YUANKY
Intercontinental Product:
America

Product Description

■ Model: QCX2;

■ Standard: IEC60898;

■ Function: making and breaking circuit and frequently starting and controlling motor;

■ Rated voltage: 220/230, 380/400, 415, 500, 660/690V;

■ Rated current: 9, 12, 18, 25, 32, 40, 50, 65, 80, 95A.

Specification

Type	Rated current ( A)	Maximum Power AC3 duty (KW)						Suitable Thermal Relay (A)
Type	Rated current ( A)	220V 230V	380V 400V	415V	440V	500V	660V 690V	Suitable Thermal Relay (A)
QCX2-9	9	2.2	4	4	4	5.5	5.5	JR28 D1312 、JR28 D1314
QCX2-12	12	3	5.5	5.5	5.5	7.5	7.5	JR28 D1316
QCX2-18	18	4	7.5	9	9	10	10	JR28 D1321
QCX2-25	25	5.5	11	11	11	15	15	JR28 D1322 、JR28 D2353
QCX2-32	32	7.5	15	15	15	18.5	18.5	JR28 D2355
QCX2-40	40	11	18.5	22	22	22	30	JR28 D3353 、JR28 D3355
QCX2-50	50	15	22	25	30	30	33	JR28 D3357 、JR28 D3359
QCX2-65	65	18.5	30	37	37	37	37	JR28 D3361
QCX2-80	80	22	37	45	45	55	45	JR28 D3363 、JR28 D3365
QCX2-95	95	25	45	45	45	55	45	JR28 D3365
