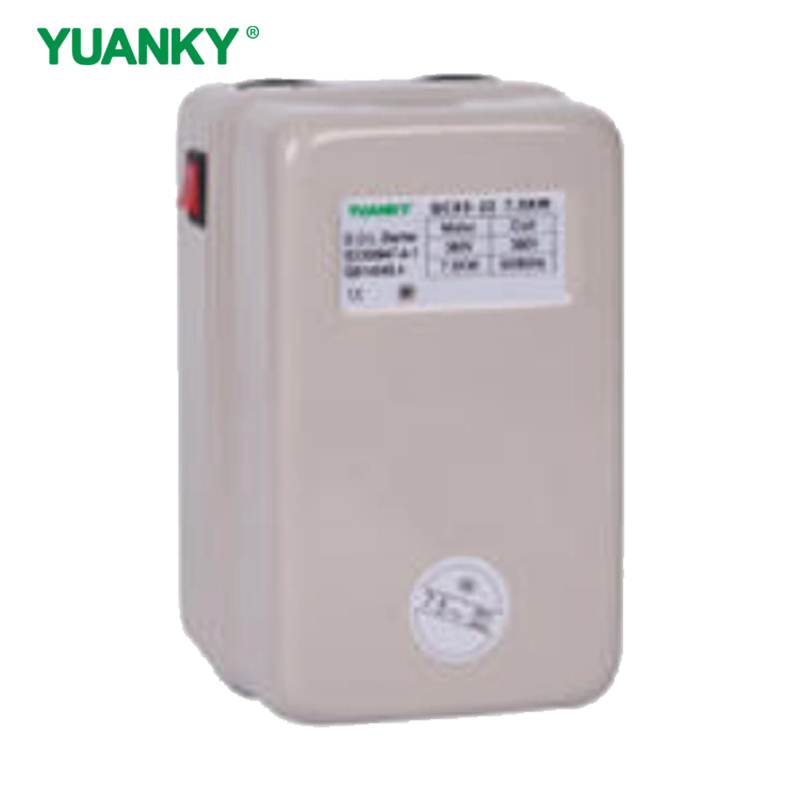

QCX5 (Iron Case) Series Magnetic Starter

QCX5 (lron Casel Series Magnetic Starter thereinafter referred to as storter) is mainlyused for AC 50Hz or 60Hz rated working pressure to 660V. power to 22KW three phase squirrel cage asynchronous motor starting. continuous operotion, overload operation of motor and its circuit protection, and artificial power supply circuit for breaking the motor.
The starter and MS-K have the same functions and can be used interchangeably. It is an ideal replacement for old products such as QC10.

Availability:
  • America

Model and implication

1

Normal working conditions and installation condition

■1~5 pairs of ACcontactors;

■The inclination of the mounting surface and the vertical surface does not exceed 30* ;

■It should be installed in places where is no significant vibration and shock.

Structural features

The QQX5 series mognetic starter is made of spray-coated iron shell. The shell is beoutiful. the shell is dirm and dlosed, and it can adapt to the harsh outdoor working environment. The storter has a phase- break protection function that prevents accidents in which the motor is damaged by single-phase operotion due to phase failure.

The QCX5 series magnetic starters produced by our company are widely used in the air compressor manufacturing industry.

Technical Parameters

The main technical parameters of the contactor are shown in table 1:

Operating characteristics: pull-in voltage 85 :100% Us, release voltage 20-75% Ue (Ue is the rated

working voltage. Us in the rated control power supplyoltage Us=-Ue)

Model QcX5-32
3KW
QCX5-32
4KW
QCX5-32   5.5kW

QCX5-32

7.5KW

QCX5-50

11KW

QCX5-50
15KW

QCX5-5

22KW

Roted operating
current
(A)AC-3
220V 11 13 18 22 22 30 40
380V 9 12 16 22 22 30 40
Rated operating
power
KWI AC-3
220V 2.5 3.5 4.5 5.5 5.5 7.5 11
380V 4 5.5 7.5 11 11 15 18.5
660V 4 5.5 7.5 7.5 7.5 11 15
Thermal relay thermal
component rated
current  (A)
0.24A/0.35A/0.5/
0.7A/0.9A/13A/L7A/2.1A/
2.5A/3.6A/5A/6.6A/9A/|11AI(15A
0.24A/0.35A/0.5A/
0.7A/0.9A/1.3A/17A/2.1A/
2.5A/3.6A/5A/6.6A/9A//11Al(15A)
19 A
22-45 A

Shape and installation dimensions (mm)

2

Model A AA AB B BA BB BC C CA M N Weight(kg)
QCX5-32/3KW 76 45 33 159 120 21 6 114 22 5 22 0.9
QCX5-32/4KW 76 45 33 159 120 21 6 114 22 5 22 0.9
QCX5-32/5.5KW 104 76 50 170 140 15 6 114 30 6 22 1.0
QCX5-32/7.5KW 104 76 50 170 140 15 6 114 30 6 22 1.3
QCX5-50/11KW 104 76 50 170 140 15 6 114 30 6 22 1.3
QCX5-50/15KW 135 95 50 225 165 30 6 130 45 6 28 2.1
QCX5-50/22KW 135 95 50 225 165 30 6 130 45 6 28 2.1

Ordering instructions

Must specify when ordering:

Starter use case or control device name:

Control the rated operating voltage. rated capacity or rated operating current of a three phaselor two phasel motor;

The form and position requirements lor product model of the operating button;

Order quantity:
