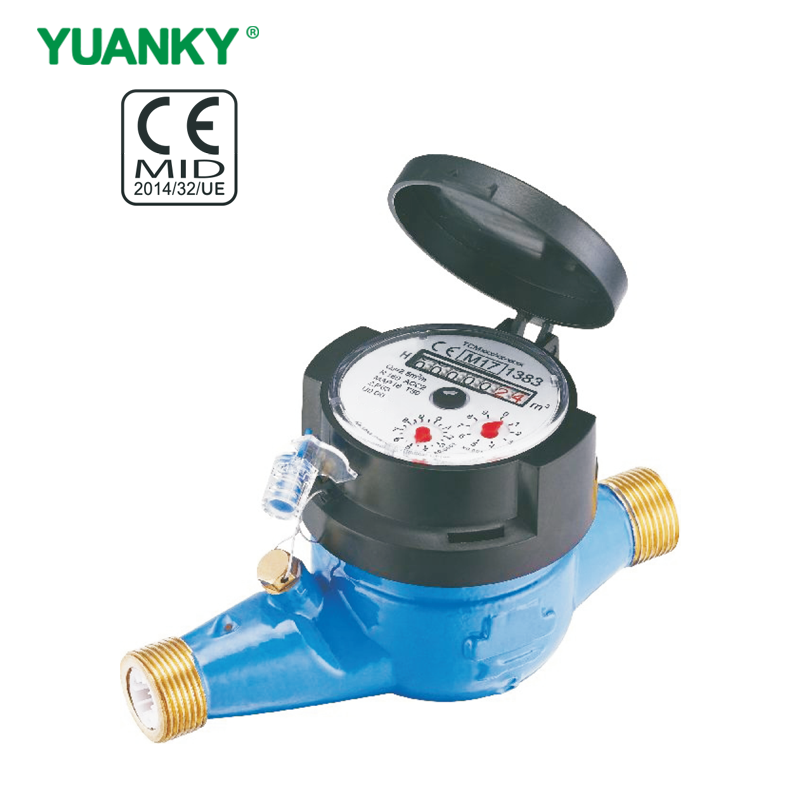

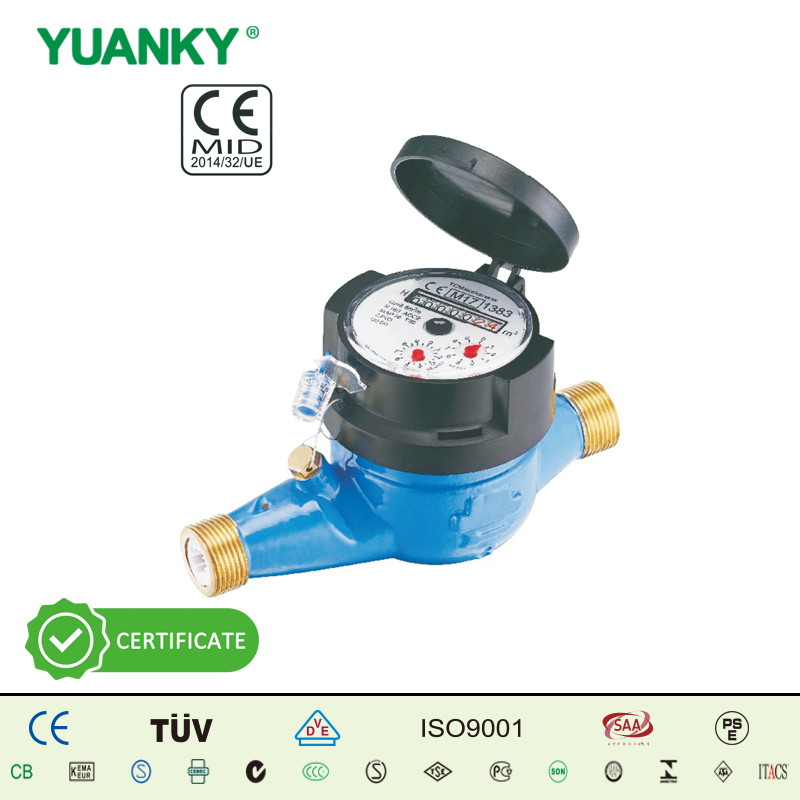

HWSG‑xxE5 (DN15‑DN40)
YUANKY
America, Europe, Britain, Australia, Southeast Asia, Philippines, I, Africa, French, Arabic, German
Product Features
YUANKY multi jet dry type water meter is designed with vacuum‑sealed dry dial to keep clean reading for long time, it features antimagnetic type magnetic transmission and 360° rotating dial, it can work for cold water ≤30℃ and hot water up to ≤90℃ under working pressure ≤1.6MPa(16bar), maximum permissible error reaches ±5% in lower zone and ±2% in upper zone.
Technical parameters
| 15 | 20 | 25 | 32 | 40 | ||
|---|---|---|---|---|---|---|
| (DN)[mm] | 15 | 20 | 25 | 32 | 40 | |
| Size (inch) | 1/2" | 3/4" | 1" | 1‑1/4" | 1‑1/2" | |
| (Q4)[m³/h] | 3.125 | 5 | 7.875 | 12.5 | 20 | |
| (Q3)[m³/h] | 2.5 | 4 | 6.3 | 10 | 16 | |
| R80 | (Q2)[l/h] | 50 | 80 | 126 | 200 | 320 |
| (Q1)[l/h] | 31.25 | 50 | 78.75 | 125 | 200 | |
| R100 | (Q2)[l/h] | 40 | 64 | 100.8 | 160 | 256 |
| (Q1)[l/h] | 25 | 40 | 63 | 100 | 160 | |
| R125 | (Q2)[l/h] | 32 | 51.2 | 80.64 | 128 | 204.8 |
| (Q1)[l/h] | 20 | 32 | 50.4 | 80 | 128 | |
| R160 | (Q2)[l/h] | 25 | 40 | 63 | 100 | 160 |
| (Q1)[l/h] | 15.62 | 25 | 39.37 | 62.5 | 100 | |
| Indicating range[m³] | 99 999 | 99 999 | 99 999 | 99 999 | 99 999 | |
| Resolution of the indicating device[m³] | 0.00005 or 0.00002 | 0.00005 or 0.00002 | 0.00005 or 0.00002 | 0.00005 or 0.00002 | 0.00005 or 0.00002 | |
| Temperature class | T30 and T50 | T30 and T50 | T30 and T50 | T30 and T50 | T30 and T50 | |
| Water pressure classes | MAP 16 | MAP 16 | MAP 16 | MAP 16 | MAP 16 | |
| Pressure‑loss classes | △P63 | △P63 | △P63 | △P63 | △P63 |
