MCBP Series AUTOMATIC STABILIZEDFREQUENCY POWER SUPPLY

Share to:

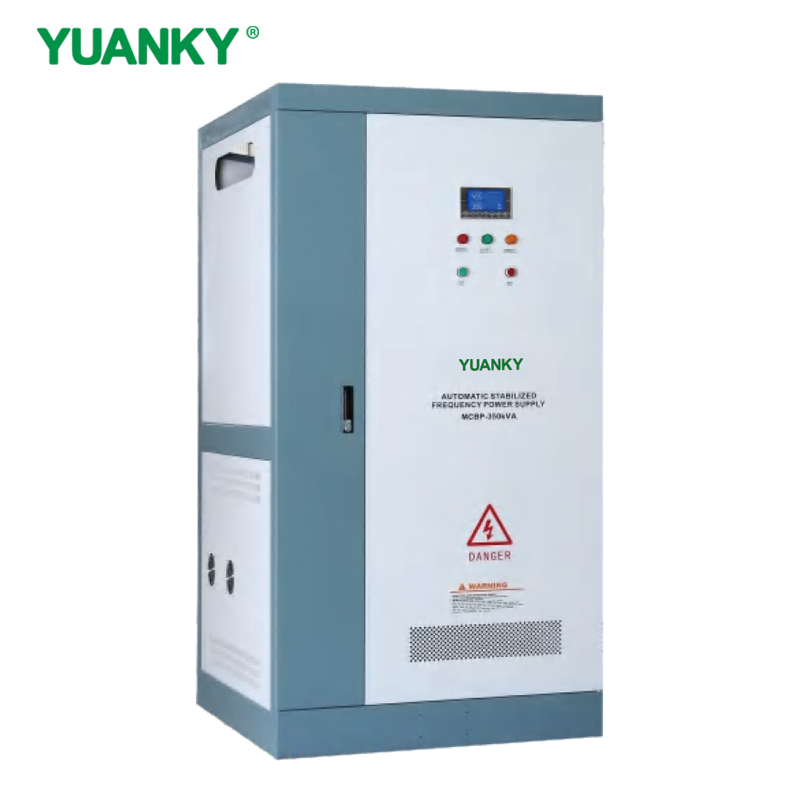

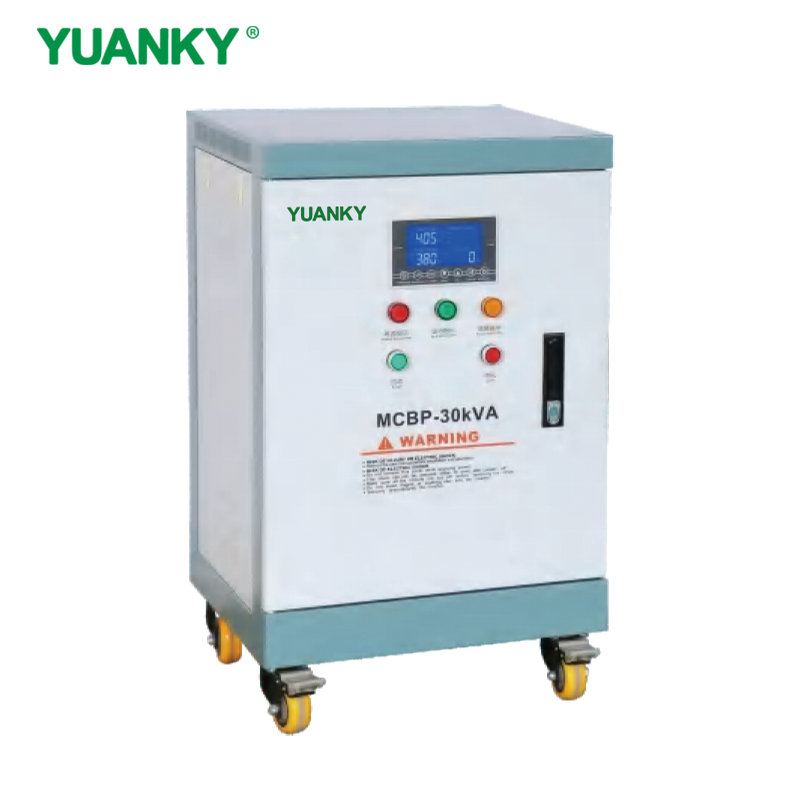

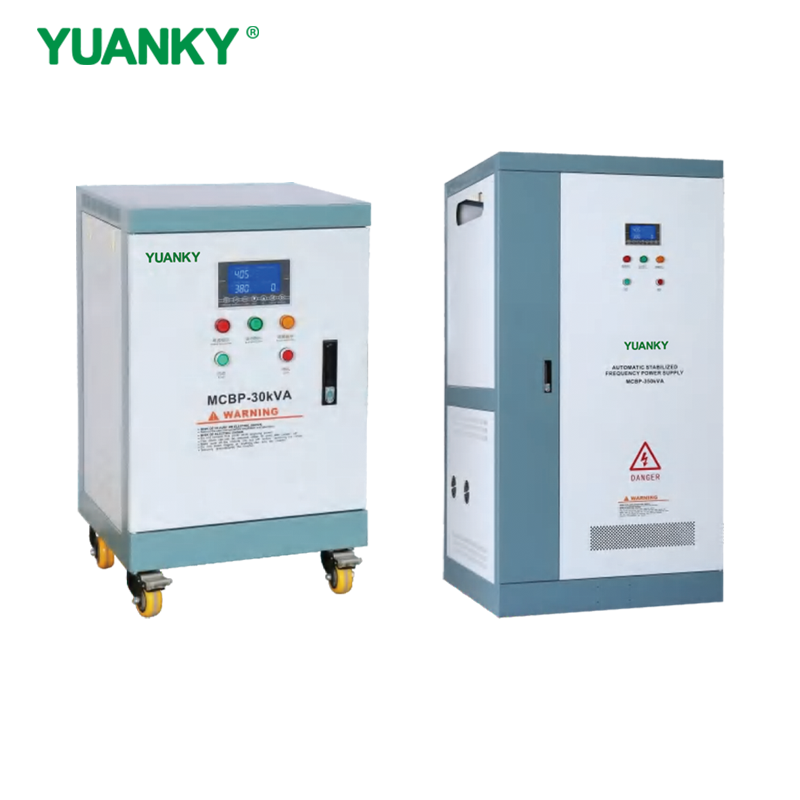

MCBP Series AUTOMATIC STABILIZEDFREQUENCY POWER SUPPLY

The MCBP series variable frequency power supply converts mains electricity into the required voltage through a power conversion circuit A precision power supply based on frequency, our company's independently developed high-performance variable frequency power supply can meet various requirements Design and output variousl voltages and frequencies to meet the needs of users, in order to meet the electrical appliances of different countries and regions Product power supply and testing requirements. Variable frequency power supply can also be used as a power supply for imported 60HZ equipment It can convert single-phase power supply into three-phase power supply to meet the power supply needs of situations without three-phase power supply. frequency conversion The power supply adopts sine pulse width modulation PWM design and imported IGBT drive. The circuit composition is mainly composed of input Input rectifier filter circuit, high-performance frequency converter, isolation transformer, output filter circuit, PID control tuning Composed of sections and other units. Has high stability, strong overload capacity. large power capacity, good output waveform Easy to operate, etc.

Availability:



Inquire Add to Basket

Model:
MCBP Series
Brand:
YUANKY
Intercontinental Product:
America

Product Description

item	value
Capacity	30KVA, 350KVA
Current Type	AC
Phase	Three Phase
Type	Electronic
Model Number	MCBP Series
Brand Name	YUANKY
Place of Origin	China
	Zhejiang
Display Type	Digital Display
Efficiency	92%
Frequency	50/60 Hz
Material	IRON
Protection	Overvoltage, Overcurrent Protection
Usage	stabilized voltage
Product Name	MCBP Series
Keywords	VOLTAGE TRANSFORMER
Housing Material	iron
Services	OEM and ODM
Input voltage range	220-380V
Certificates	CE,ISO9001
