YUANKY
America

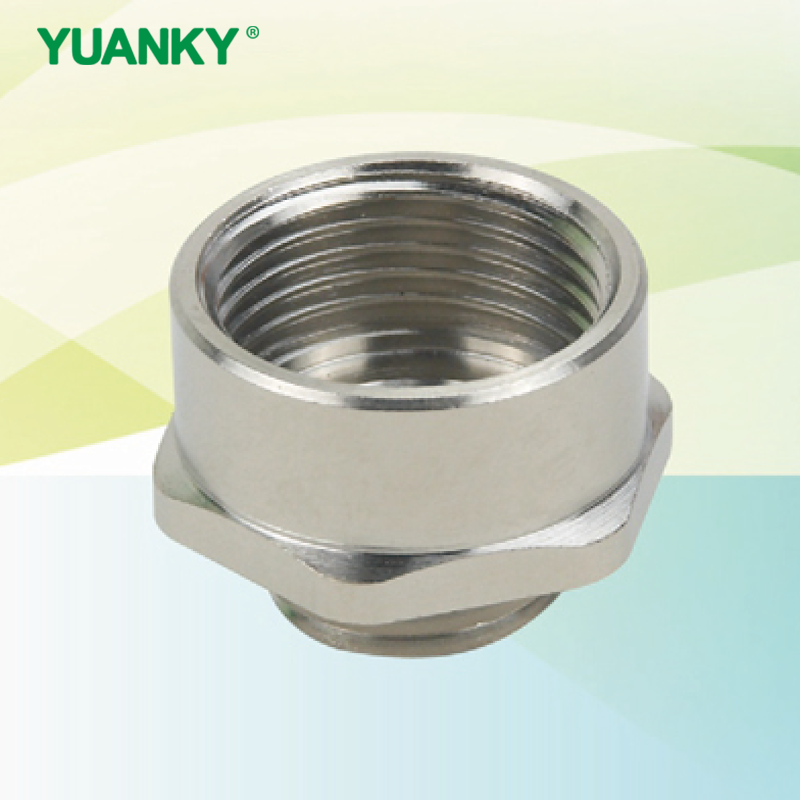

◆Thread type:Metric,PG,G,NPT
◆Material:Brass,nickel plated
◆Approvals: CE,ROHS,REACH
◆Working temperature:Static:-40℃~+100℃,instantaneously can be +120℃;
Dynamic:-20℃~+80℃,instantane can be +100℃;
◆Function:Special clamping claw,and the design of the clamping ring is concave and convex clasped,forced to cooperate with tight head assembly time-savers,large range of fastening cable,pushing more powertul,can waterproof,dustproof,salt resistance,acid and alkali resistant,alcohol,grease and common solvent.
◆Method of use:Metal cable waterproof connector is the product of form a complete set of the cable,connector cable can be lock, the other end can access devices on the box body,also can choose thread access according to the import and export for internal thread electric devices.
序号 NO. | 公制 G | 德制 PG | 美制 NPT | 管制 Controls | 适用电缆 Applicable to cable | 包装(袋,件) Packaging |
1 | M12*1.5 | PG7 | NPT1/4 | G1/4 | 3-6.5 | 100只装 |
2 | M14*1.5 | 3-6.5 | 100只装 | |||
3 | M16*1.5 | PG9 | NPT3/8 | G3/8 | 4-8 | 100只装 |
4 | M18*1.5 | PG11 | 5-10 | 100只装 | ||
5 | M20*1.5 | PG13.5 | NPT1/2 | G1/2 | 6-12 | 100只装 |
6 | M22*1.5 | PG16 | 10-14 | 100只装 | ||
7 | M24*1.5 | 10-15 | ||||
8 | M25*1.5 | PG19 | 10-15 | 50只装 | ||
9 | M25*1.5 | 10-18 | ||||
10 | M27*1.5(2) | 10-18 | ||||
11 | M28*1.5(2) | PG21 | NPT/3/4 | G3/4寸 | 10-18 | 50只装 |
12 | M30*1.5(2) | 10-18 | ||||
13 | M32*1.5(2) | PG25 | 15-22 | 20只装 | ||
14 | M33*1.5(2) | 15-22 | ||||
15 | M36*1.5(2 | 18-25 | ||||
16 | M37*1.5(2) | PG29 | NPT11 | G 1 寸 | 18-25 | 16只装 |
17 | M40*1.5(2) | 18-25 | ||||
18 | M40*1.5(2) | 22-30 | ||||
19 | M42*1.5(2) | 22-30 | ||||
20 | M47*1.5(2 | PG35 | NPT11/4 | G11/4寸 | 25-33 | 9只装 |
21 | M48*1.5(2) | 25-33 | ||||
22 | M50*1.5(2) | 32-38 | ||||
23 | M54*1.5(2 | PG42 | NPT11/2 | G11/2寸 | 32-38 | 4只装 |
24 | M60*1.5(2) | PG46 | NPT2 | G 2 寸 | 37-44 | 2只装 |
25 | M63*1.5(2) | 37-44 | ||||
26 | M64*1.5(2) | 37-44 | ||||
27 | M72*1.5(2) | PG63 | NPT21/2 | G21/2寸 | 42-52 | 1只装 |
28 | M78*1.5(2) | 42-52 | ||||
29 | M80*1.5(2) | 55-62 | ||||
30 | M88*1.5(2) | NPT3 | G3 | 65-70 | ||
31 | M100*1.5(2) | 78-84 |
