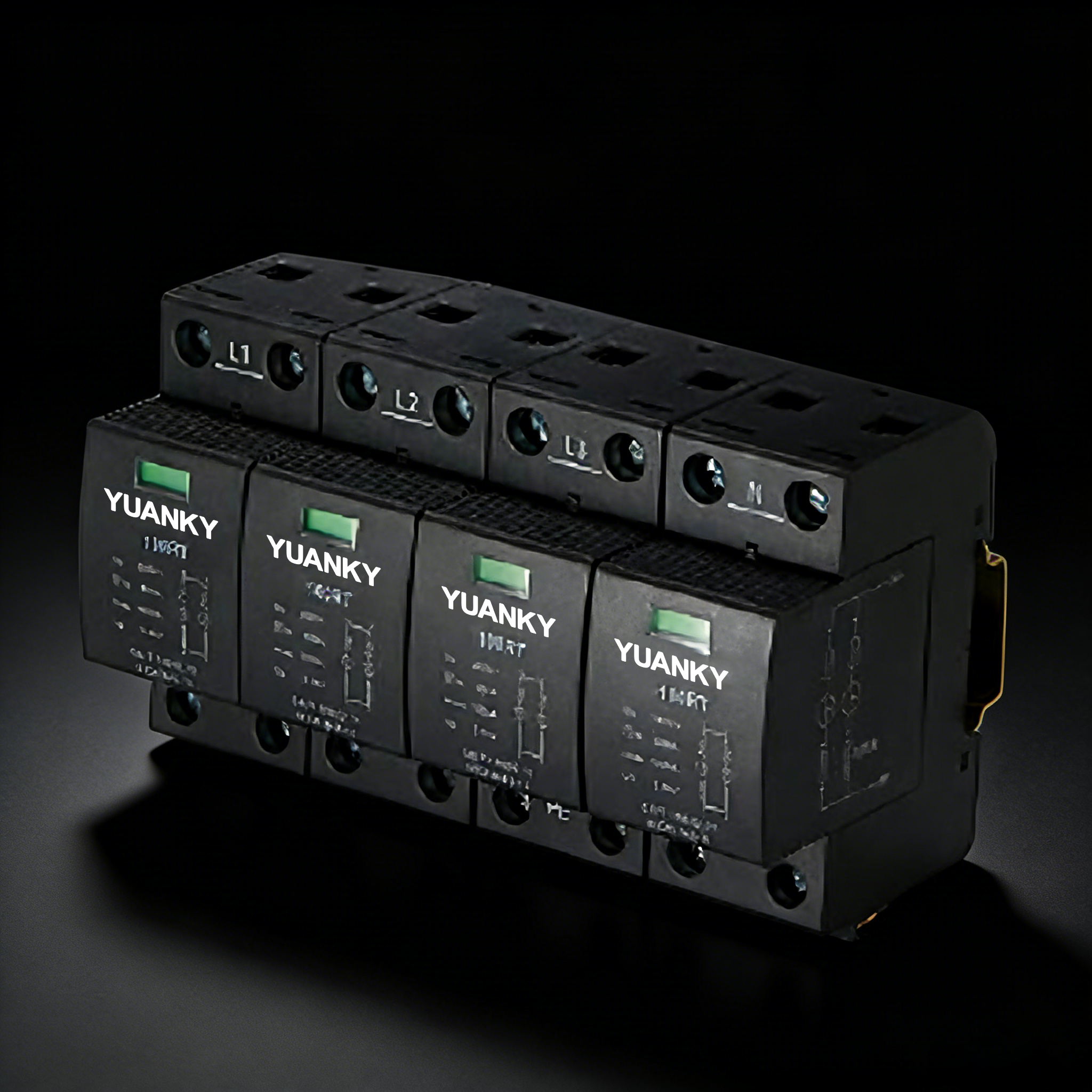

YUANKY 1P/2P/3P/4P AC Voltage 80RT T2 20RT SPD 60/80/100/160KA Surge Protective Device Din Rail Mounted Lightning Arresto

The surge protection device belongs to T2 AC power surge protector, which is installed between the power supply network and the equipment to drain, suppress and reduce the overcurrent and overvoltage caused by induced lightning strikes or the power grid system, so as to reduce the harm to the electrical equipment. The product is equipped with built-in thermal release device and fuse, fuse can be replaced. it is mainly used for lightning protection of rail transit power system

Availability:



Inquire Add to Basket

Model:
80RT
Brand:
YUANKY
Intercontinental Product:
America, Europe, Britain

Product Description

Technical Data

Model number	80RT 100RT
Continuous Operating Voltage Uc	275V~385V~440V~
Nominal discharge current(T2) In	40kA 60kA
Maximum disc’/harge current Imax	80kA 100kA
Protection level Up	1.8kV 2.0kV
Combination mode	1P 2P 3P 4P
Failure and fuse operation indication	Normal green,Failure red
Remote communication connection	1411:NO,1112:NC
Access wire area	6-35mm⊃2;(Multiple strands of copper wire)
Operatingtemperature	-40~+70℃
Associated disconnectors
Thermal	disconnector internal
Fuses	disconnector internal,replaceable
Mechnical characteristics
Connection Byscrew terminals	6-35mm²
Terminal Screw Torque	2.0 Nm
Recommended Cable cross Section	≥10mm²
Insert wire length	15mm
Mounting DIN rail	35mm (EN60715)
Degree of Protection	IP20
Housing	PBT/PA
Flame retardant grade	UL94VO
Operating temperature	-40℃~+70℃
Operating relative humidity	5%-95%
Working atmospheric pressure	70kPa～106kPa
