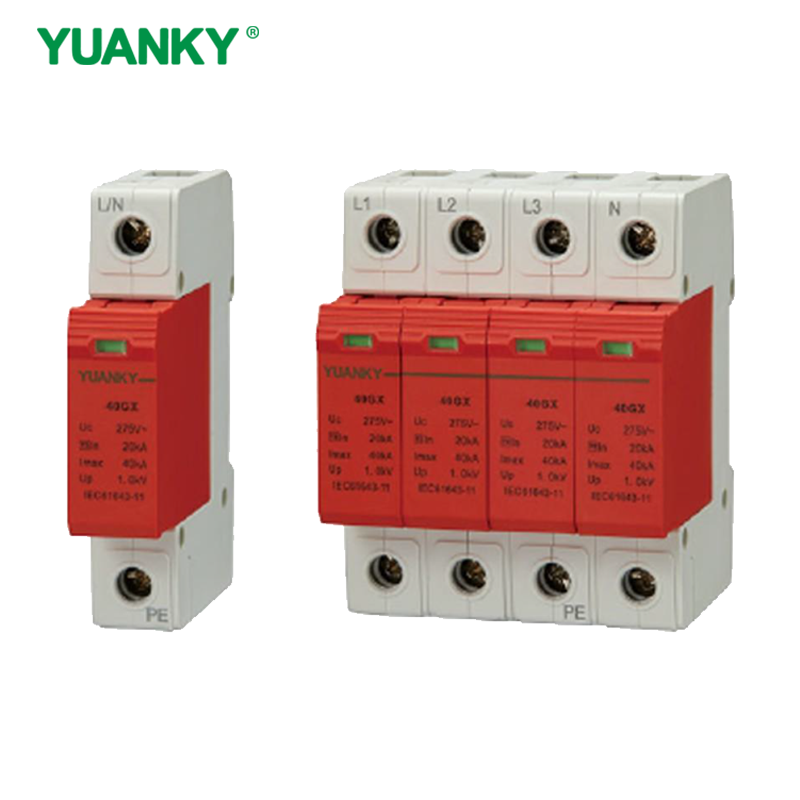

YUANKY 1P/2P/3P/4P AC Voltage Ultra Low Residual Voltage T2 40N SPD 60/80/100/160KA Surge Protective Device Din Rail Mounted Lightning Arresto

The surge protection device belongs to T2 AC power surge protector, which is installed between the power supply network and the equioment to drain, suppress and reduce the overcurrent and overvoltage caused by induced lightning strikes or the power grid system, so as to reduce the harm to the electrical equipment. This product belongs to the ultra-low residual voltage SPD, and the protection effect after multiple similar protectors are combined is not as good as one ultra-low residual voltage SPD.

Availability:



Inquire Add to Basket

Intercontinental Product:
America

Product Description

Technical Data

Max Continuous Operating Voltage	(AC)Uc	275V	320V	385V	440V
Rated Voltage	(AC)Un	220V	220V	220V	220V
Nominal discharge current(T2)	In	20kA	20kA	20kA	20kA
Maximum discharge current	Imax	40kA	40kA	40kA	40kA
Protection level	Up	0.8	1.0	1.0	1.2
Follow Current Interrupt Rating	ln	NONE
Response Time	tA	100ns
SPD Special disconnector	Recommend	SSD40
TOV	N-PE	1200V
Residual current-Leakage current at	lpe	NONE
Admissible short-circuit current	Isccr	25000A
Remote communication		With
Remote communication connection		1411:NO,1112:NC
Remote contact rated current		220V/0.5A

Associated	disconnectors
Thermal		disconnectorinternal

Mechnical characteristics

Connection Byscrew terminals	6-35mm²
Terminal Screw Torque	2.0 Nm
Recommended Cable cross Section	≥10mm²
Insert wire length	15mm
Mounting DIN rail	35mm(EN60715)
Degree of Protection	IP20
Housing	PBT/PA
Flame retardant grade	UL94VO
Operatingtemperature	-40℃~+70℃
Operating relative humidity	5%-95%
Working atmospheric pressure	70kPa～106kPa
